Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

46 part groups · 5 illustrations

Illustrations

MB8318D 1978-09 → 1979-08

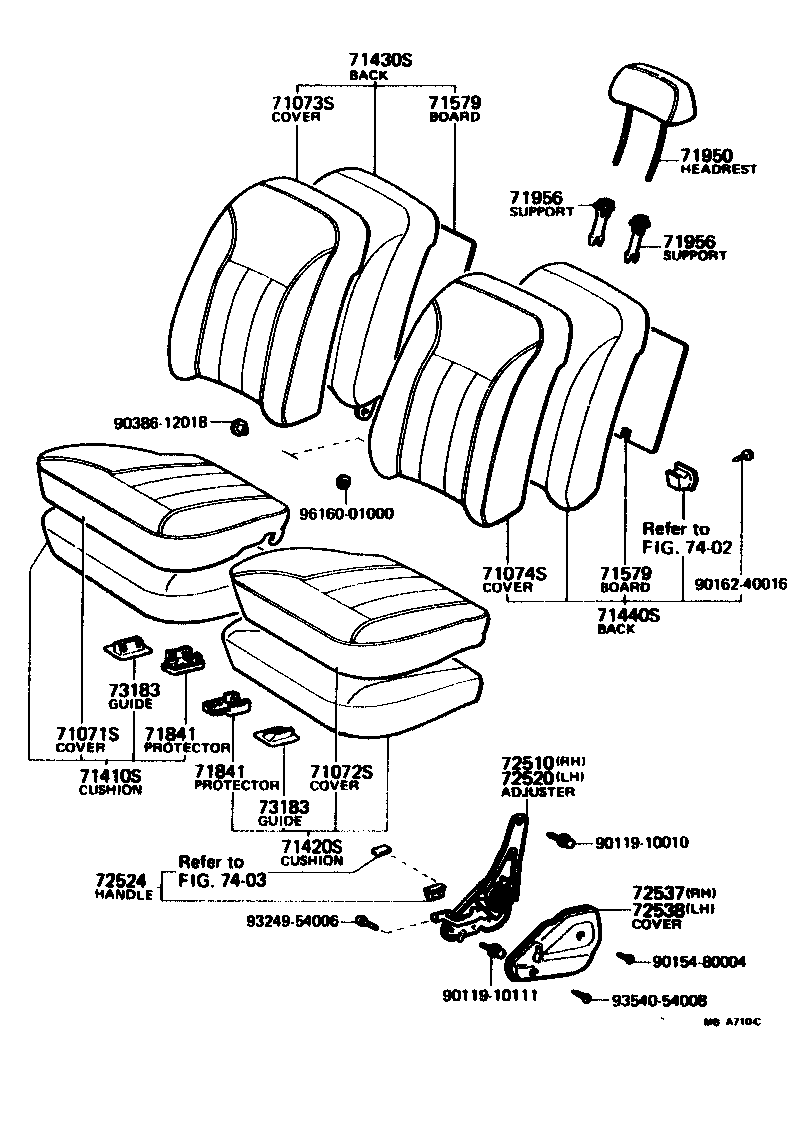

MBA710C 1979-08 → 1980-08

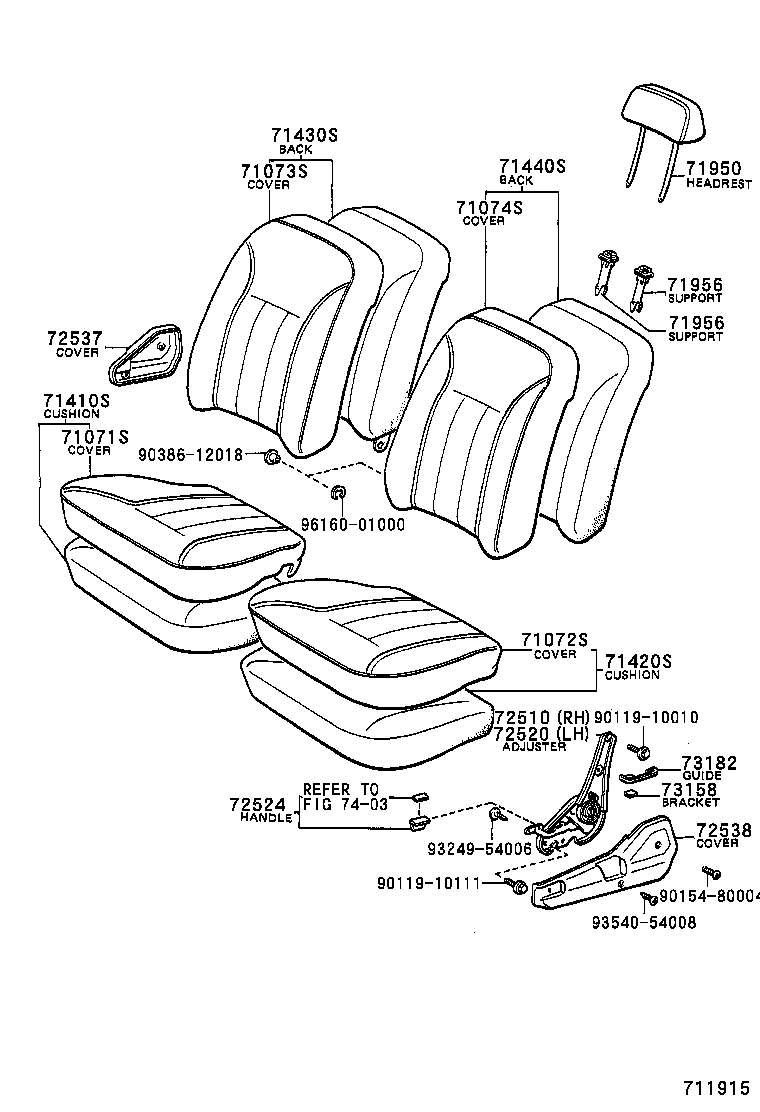

711915 1978-09 → 1980-08

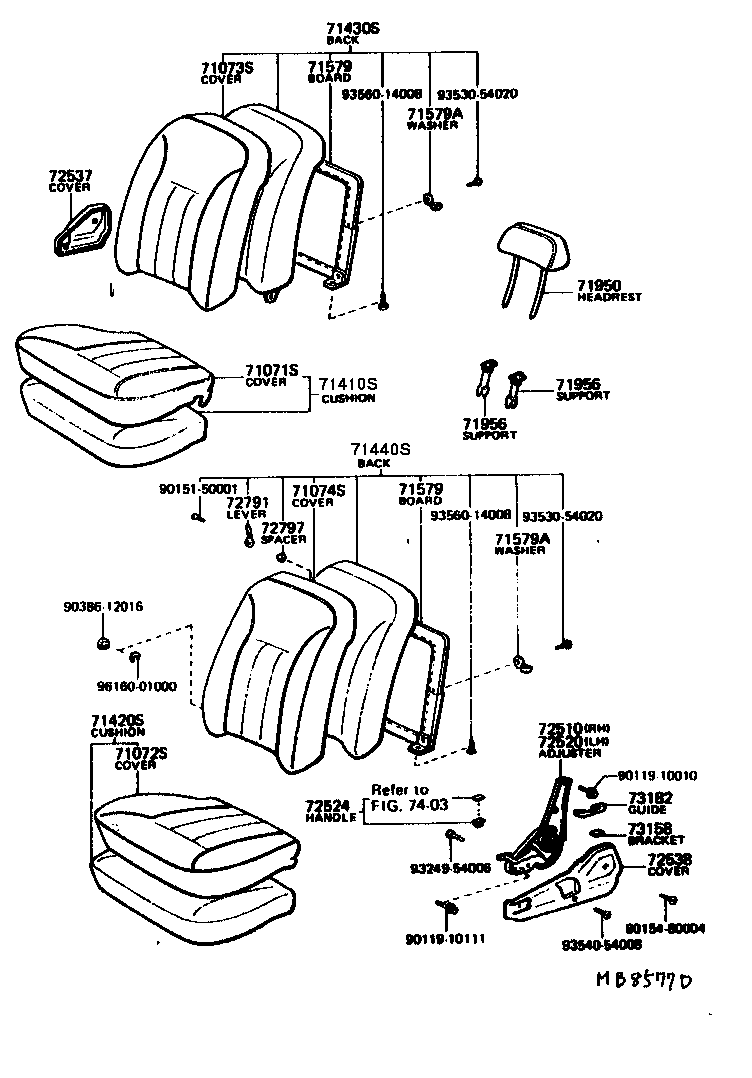

MB8577D 1978-09 → 1980-08

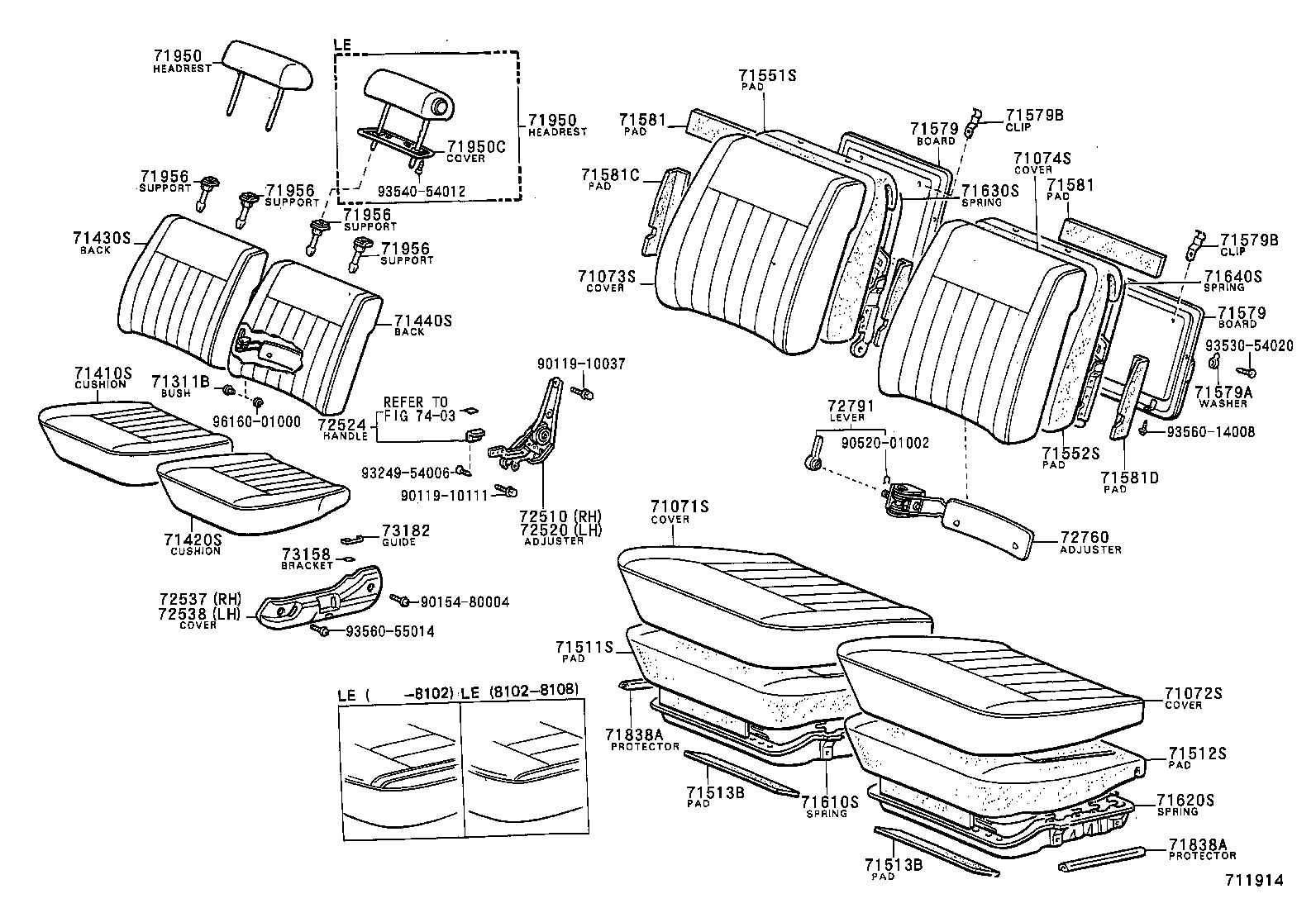

711914 1980-08 → —

Part groups

PNC	Description
71071P	Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073P	Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074P	Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71410P	Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430P	Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P	Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71513B	Pad, Front Seat Cushion, B
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71579	Board, Front Seatback
71579A	Washer, Front Seatback Board Setting
71579B	Clip, Front Seatback Board Pocket
71581	Pad, Front Seatback Silencer
71581C	Pad, Front Seatback Corner, C
71581D	Pad, Front Seatback Corner, D
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71838A	Protector, Front Seat Cushion Edge
71841	Protector, Front Seat Cushion Edge
71950	Headrest Assy, Front Seat
71950C	Cover, Front Seat Headrest Under
71956	Support, Headrest
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72537	Cover, Reclining Hinge Outer, RH
72538	Cover, Reclining Hinge Outer, LH
72760	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support
72797	Spacer, Lumbar Support
73158	Bracket, Seat Belt Guide Set
73182	Guide, Front Seat Lap Belt, Outer
73183	Guide, Front Seat Lap Belt, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
