Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

23 part groups · 3 illustrations

Illustrations

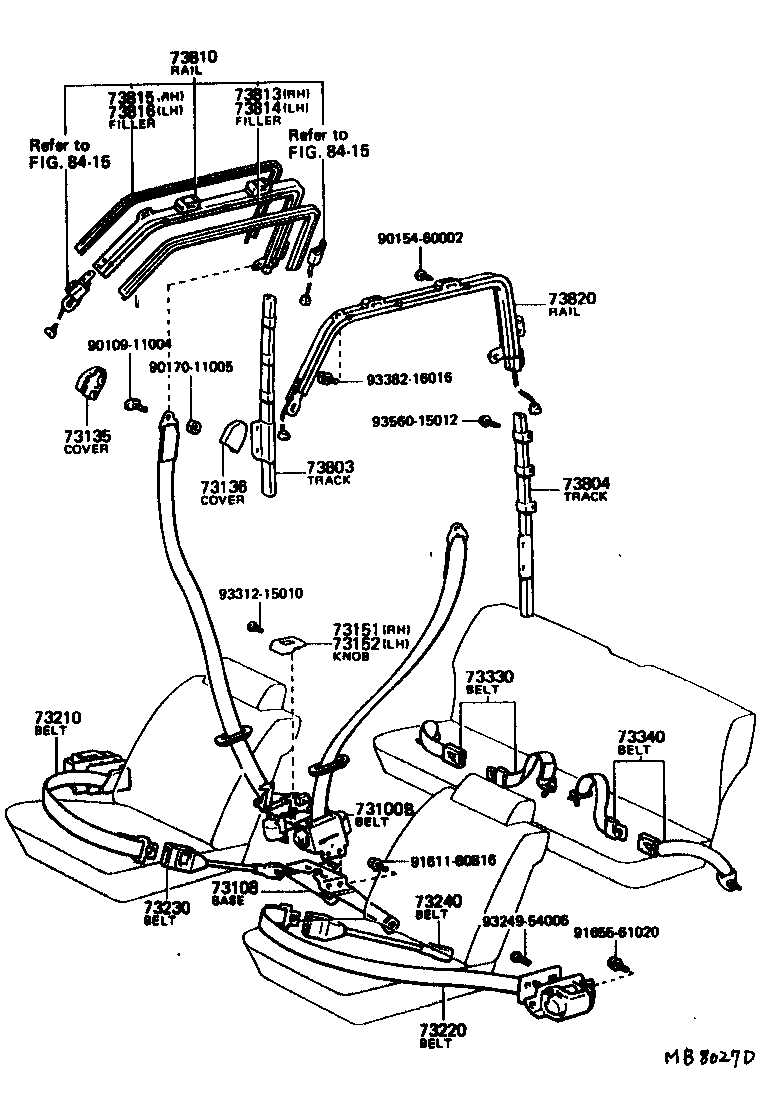

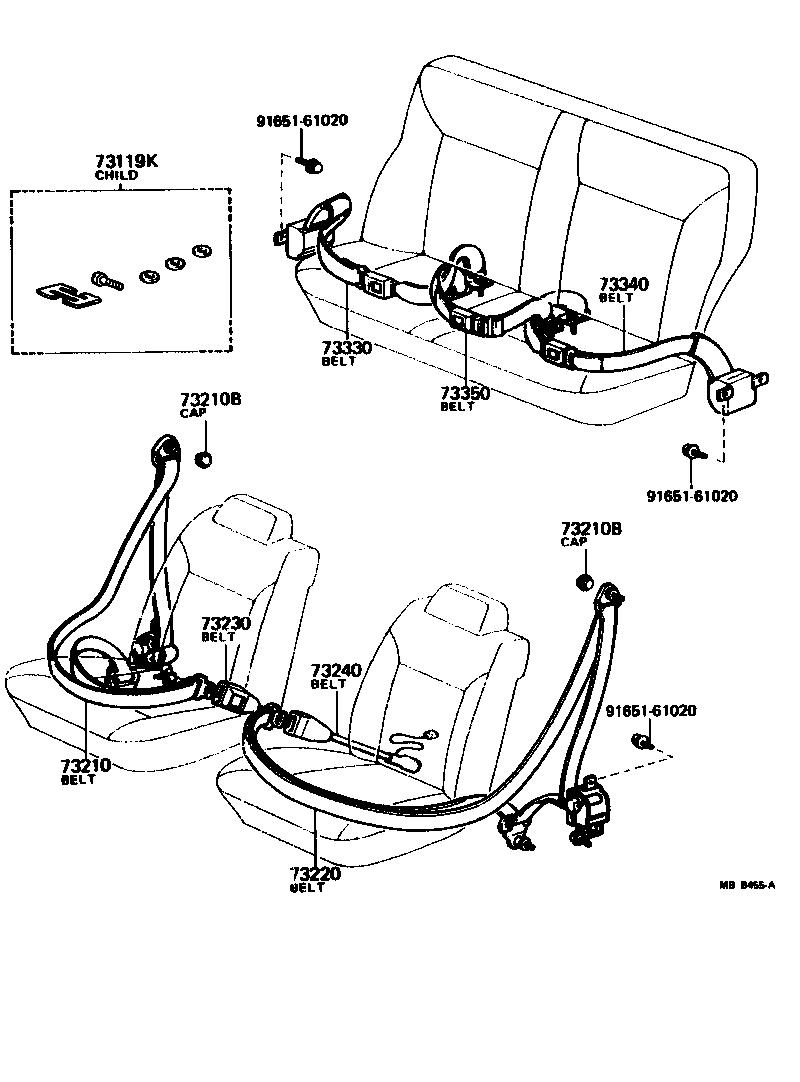

Figure MB8426A MB8426A 1978-09 → 1980-08 Figure MB8027D MB8027D 1980-01 → 1980-03 Figure MBB455A MBB455A 1980-08 → —

Part groups

PNCDescription
73100B Belt Assy, Front Seat Shoulder
73108 Base Sub-assy, Front Seat Belt Anchor, RH
73119K Seat Kit, Child Restraint
73135 Cover, Shoulder Belt Anchorage Plate
73136 Cover, Shoulder Belt Anchorage Plate, Inner
73151 Knob, Seat Belt Lock Release Lever, RH
73152 Knob, Seat Belt Lock Release Lever, LH
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73803 Track Sub-assy, Belt Drive Tape, RH
73804 Track Sub-assy, Belt Drive Tape, LH
73810 Rail Assy, Shoulder Belt Guide, RH
73813 Filler, Shoulder Belt Guide Rail NO.1, RH
73814 Filler, Shoulder Belt Guide Rail NO.1, LH
73815 Filler, Shoulder Belt Guide Rail NO.2, RH
73816 Filler, Shoulder Belt Guide Rail NO.2, LH
73820 Rail Assy, Shoulder Belt Guide, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
