Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

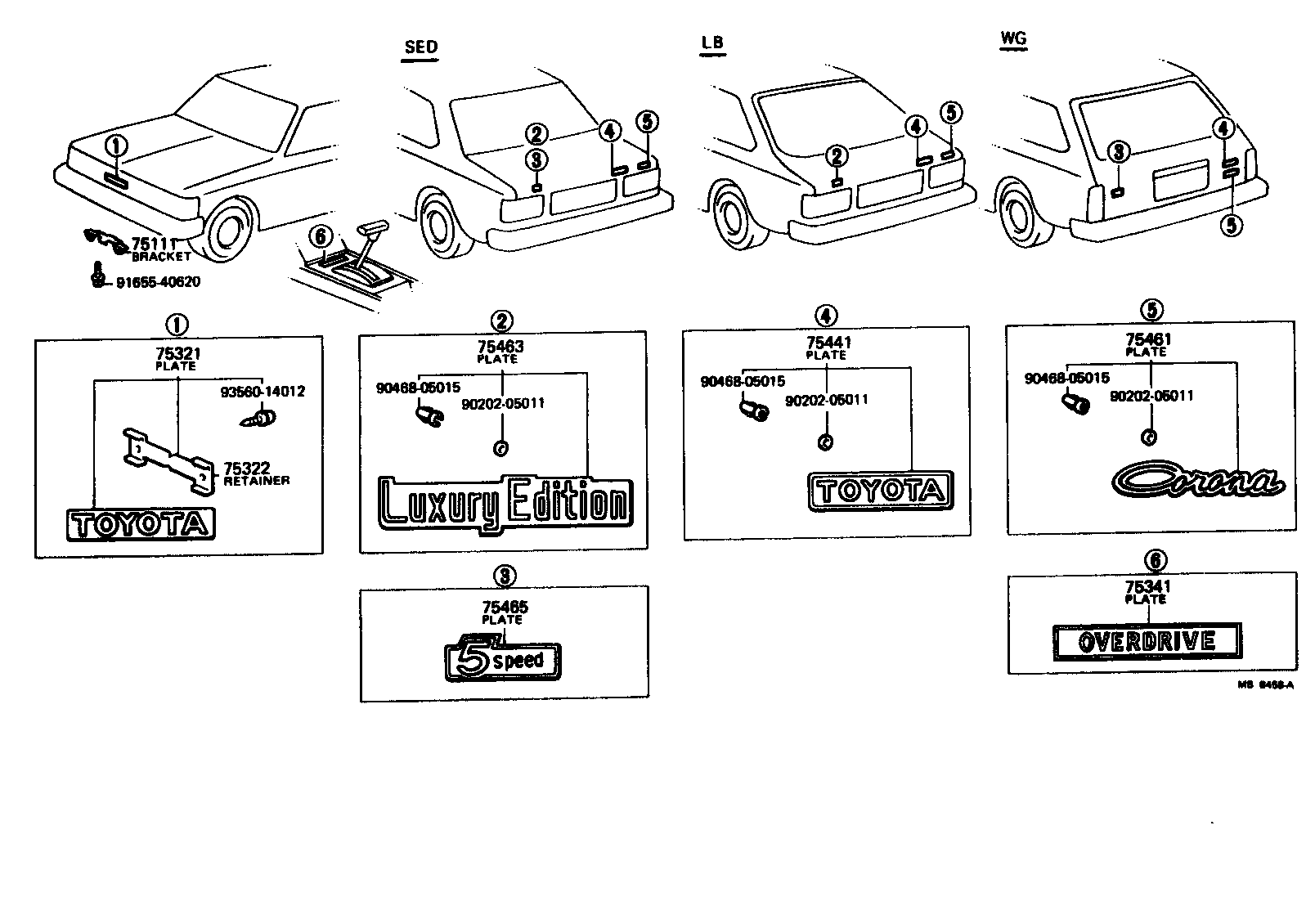

Figure MB8387F MB8387F 1978-09 → 1980-08 Figure MBB458A MBB458A 1980-08 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75341 Plate, Instrument Panel Name, NO.1
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
