Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 2 illustrations

Illustrations

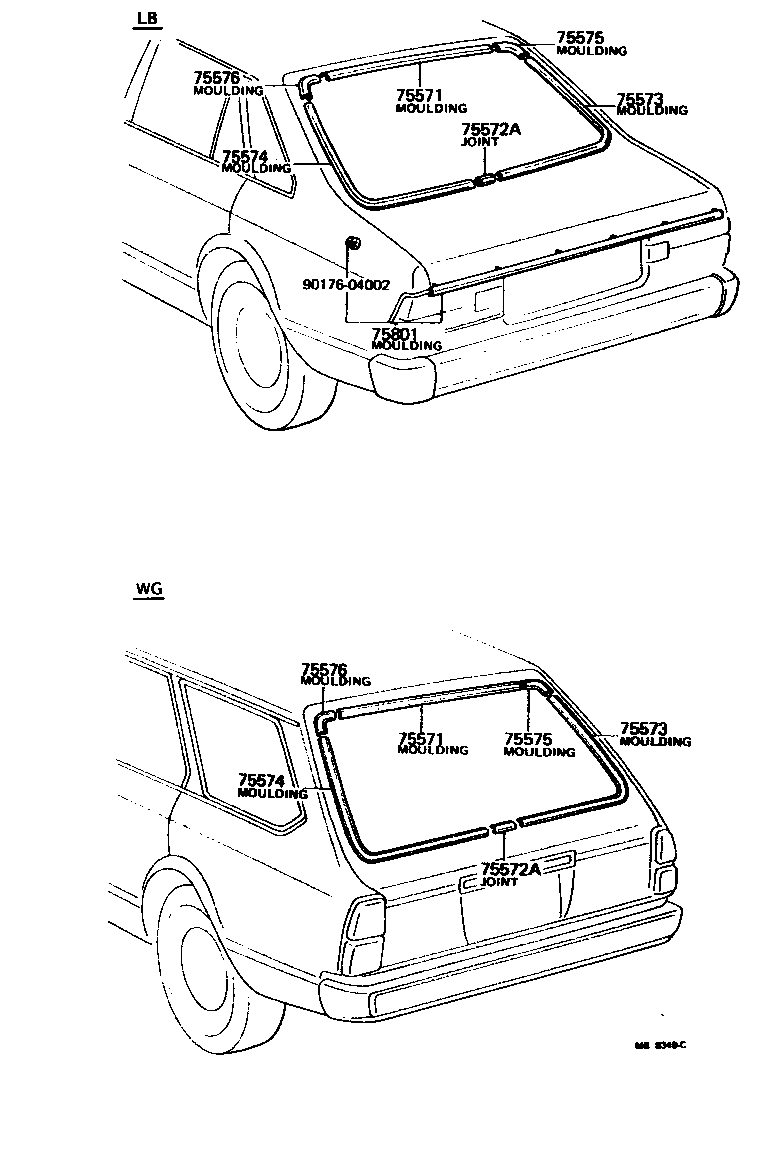

Figure MB8346C MB8346C 1978-09 → — Figure MB8349C MB8349C 1978-09 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75572A Joint, Back Window Moulding, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75801 Moulding Sub-assy, Back Door, Outside
75821 Moulding, Luggage Compartment Door Back
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
