Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 7 illustrations

Illustrations

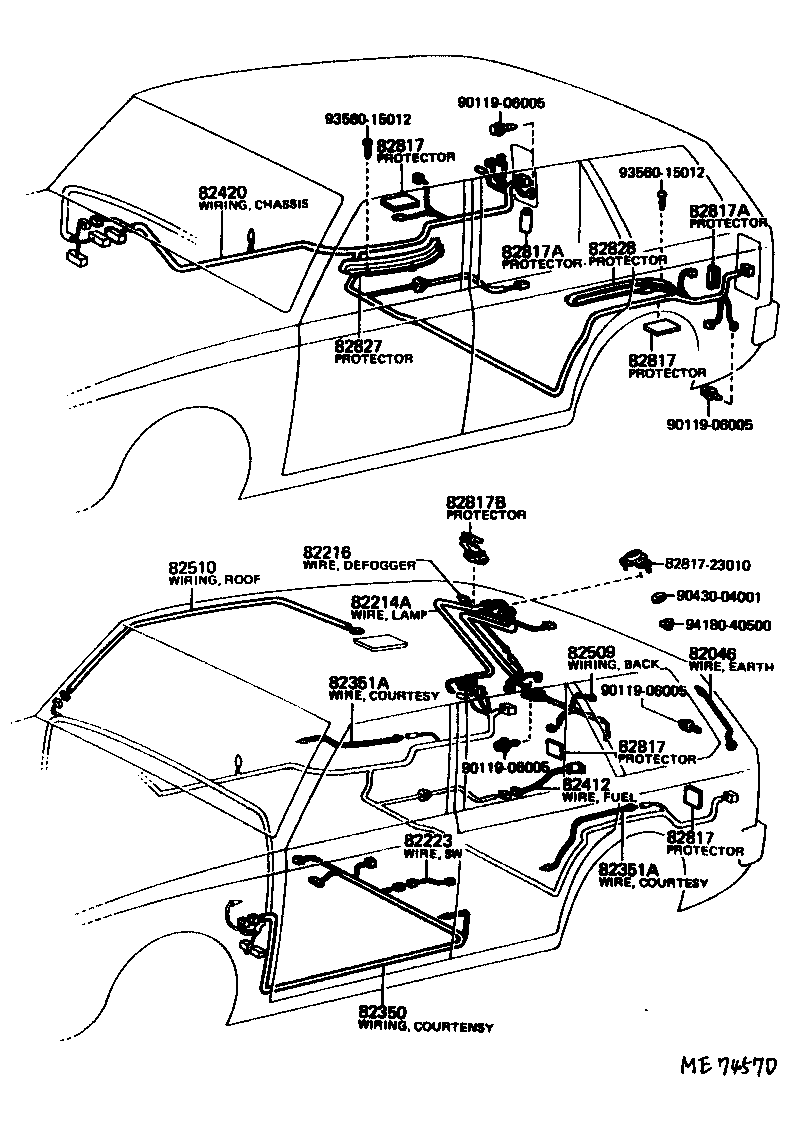

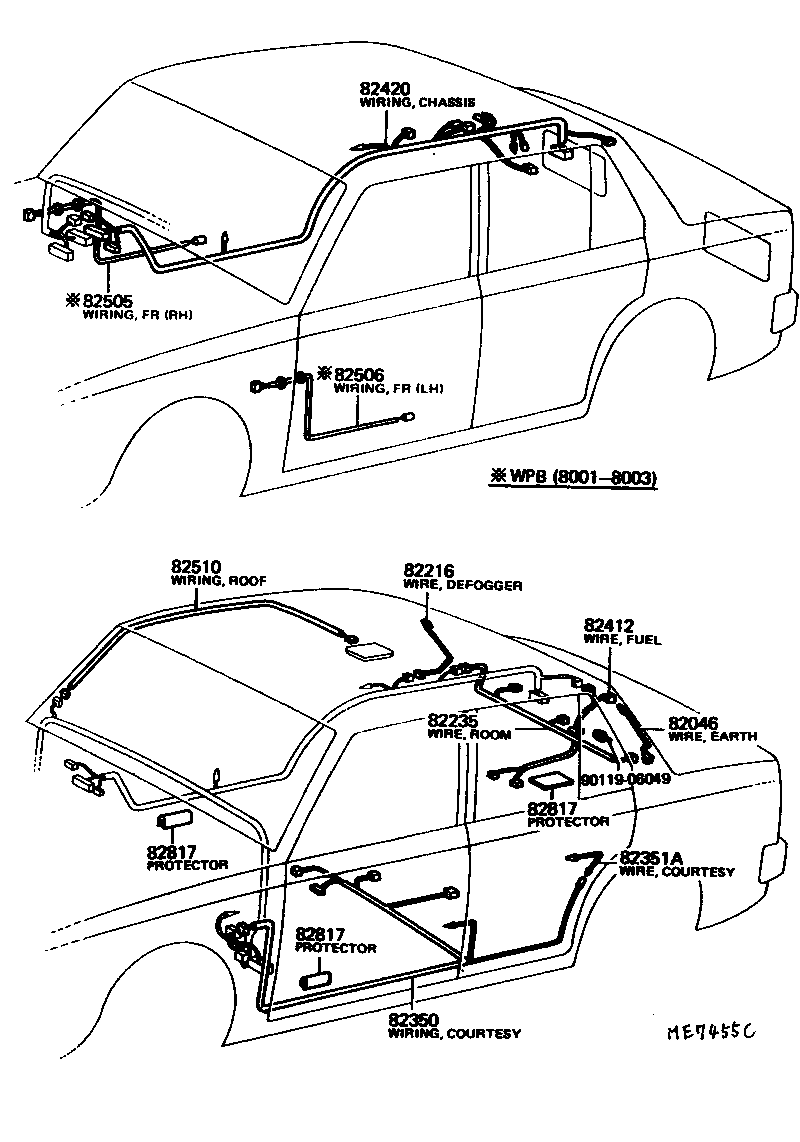

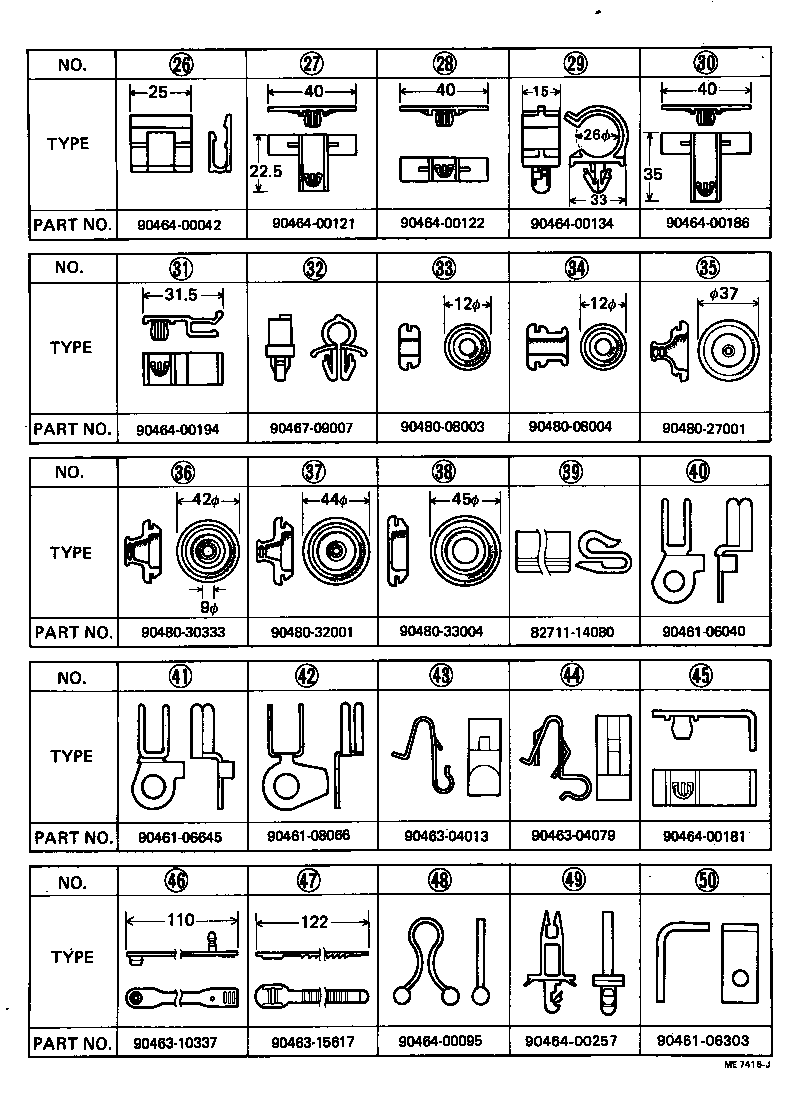

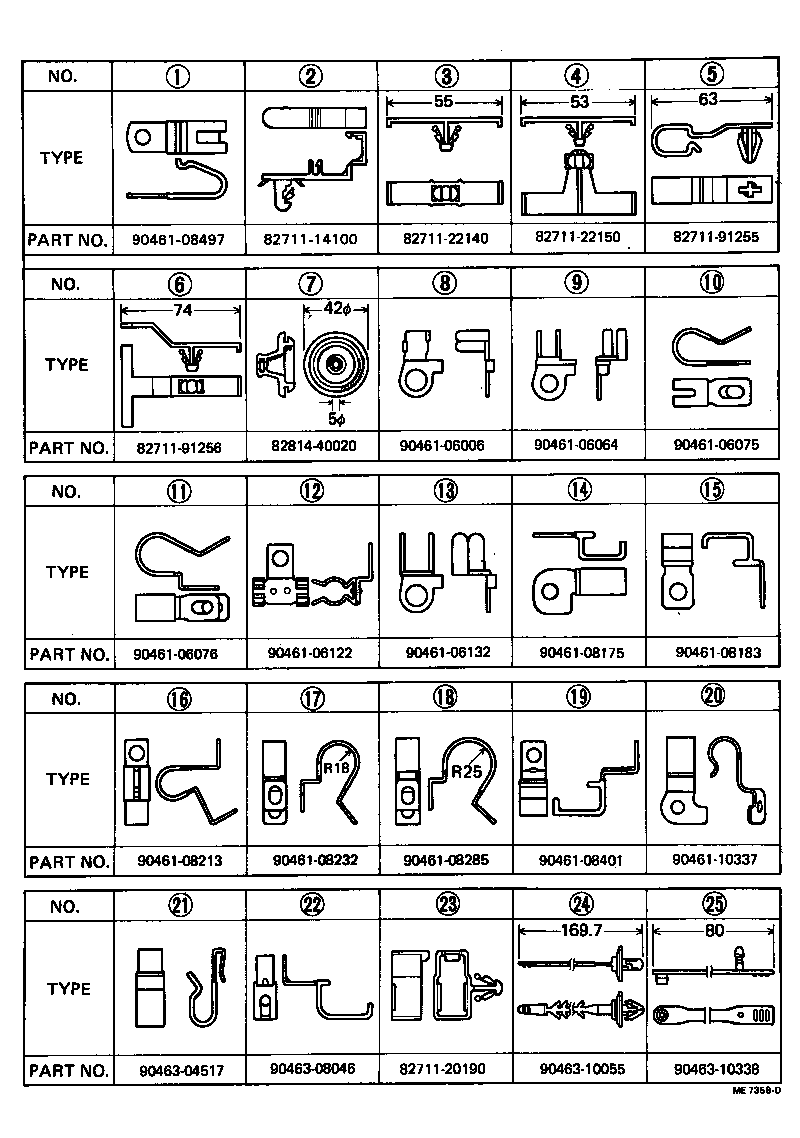

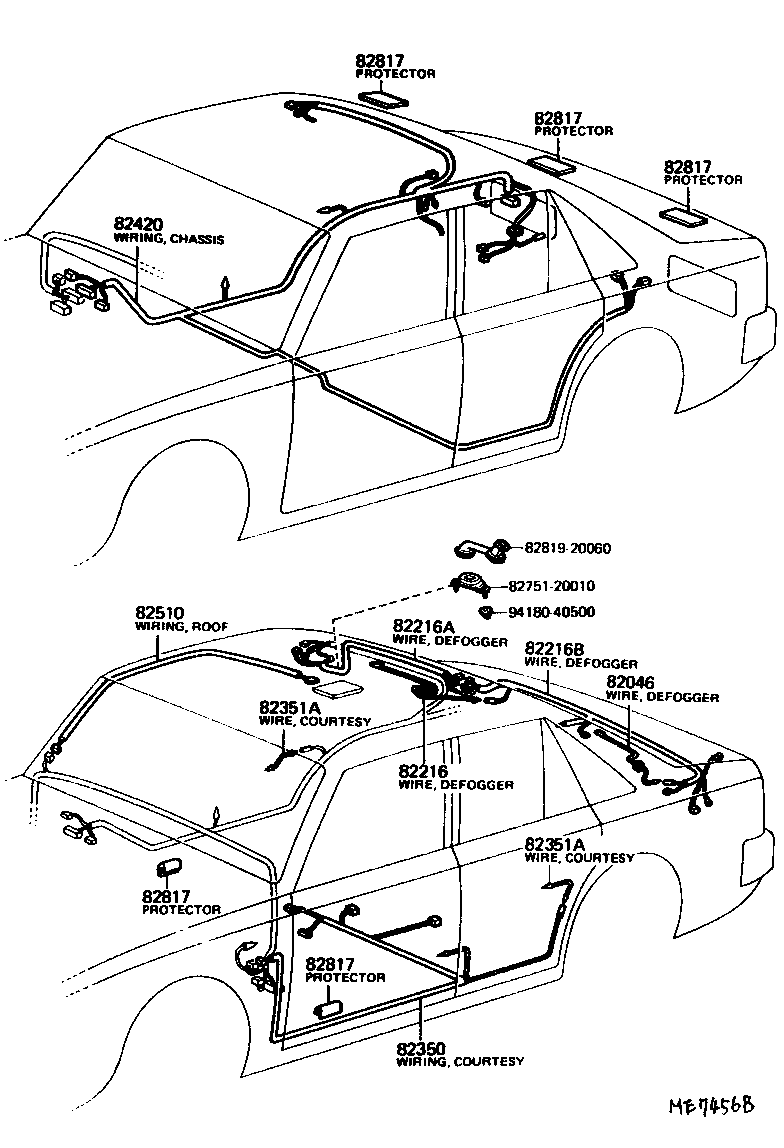

Figure ME7454E ME7454E 1978-09 → — Figure ME7455C ME7455C 1978-09 → — Figure ME7456B ME7456B 1978-09 → — Figure ME7457D ME7457D 1978-09 → — Figure ME7358D ME7358D 1978-09 → — Figure ME7416J ME7416J 1978-09 → — Figure MEA906 MEA906 1981-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82216A Wire, Rear Window Defogger
82216B Wire Sub-assy, Rear Window Defogger
82219 Wire, Thermo Sensor
82220 Harness Assy, Wiring Cowl
82223 Wire, Switch
82235 Wire, Room
82310 Wiring Assy, TO Back UP Lamp Switch
82345 Diode
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82351A Wire, Courtesy Lamp Switch (FOR FRONT OR REAR DOOR)
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82827 Protector, Rear Floor Side Harness, RH
82828 Protector, Rear Floor Side Harness, LH
82981 Wire, Headlamp Repair
82984 Wire, Horn Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
