Toyota Corona

1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 2 illustrations

Illustrations

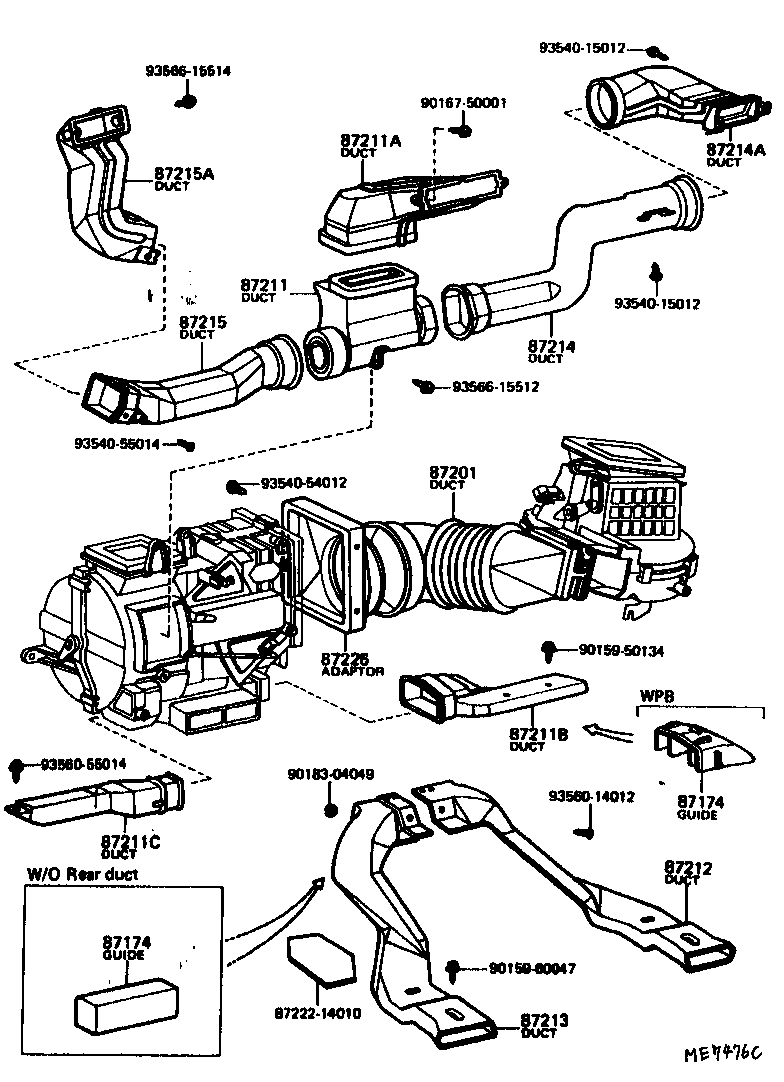

Figure ME7475C ME7475C 1978-09 → — Figure ME7476C ME7476C 1978-09 → —

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87226 Adapter, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
