Toyota Corona
1978-09 → 1981-12 · chassis RT13# · catalogue 261440 · United States
Discontinued model
Data version 1985-06

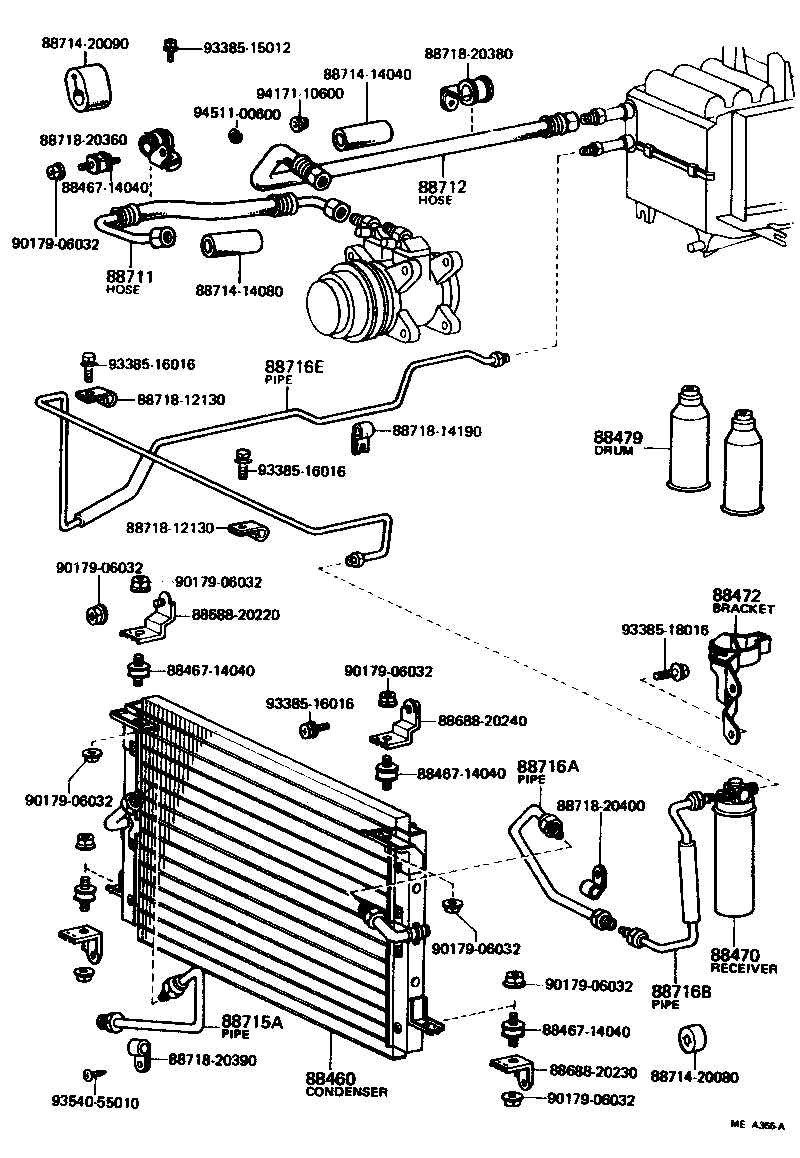

Heating & Air Conditioning - Cooler Piping
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
