Toyota Scion Fr-s/86

2012-03 → 2016-06 · chassis ZN6 · catalogue 264410 · United States

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

10 part groups · 2 illustrations

Illustrations

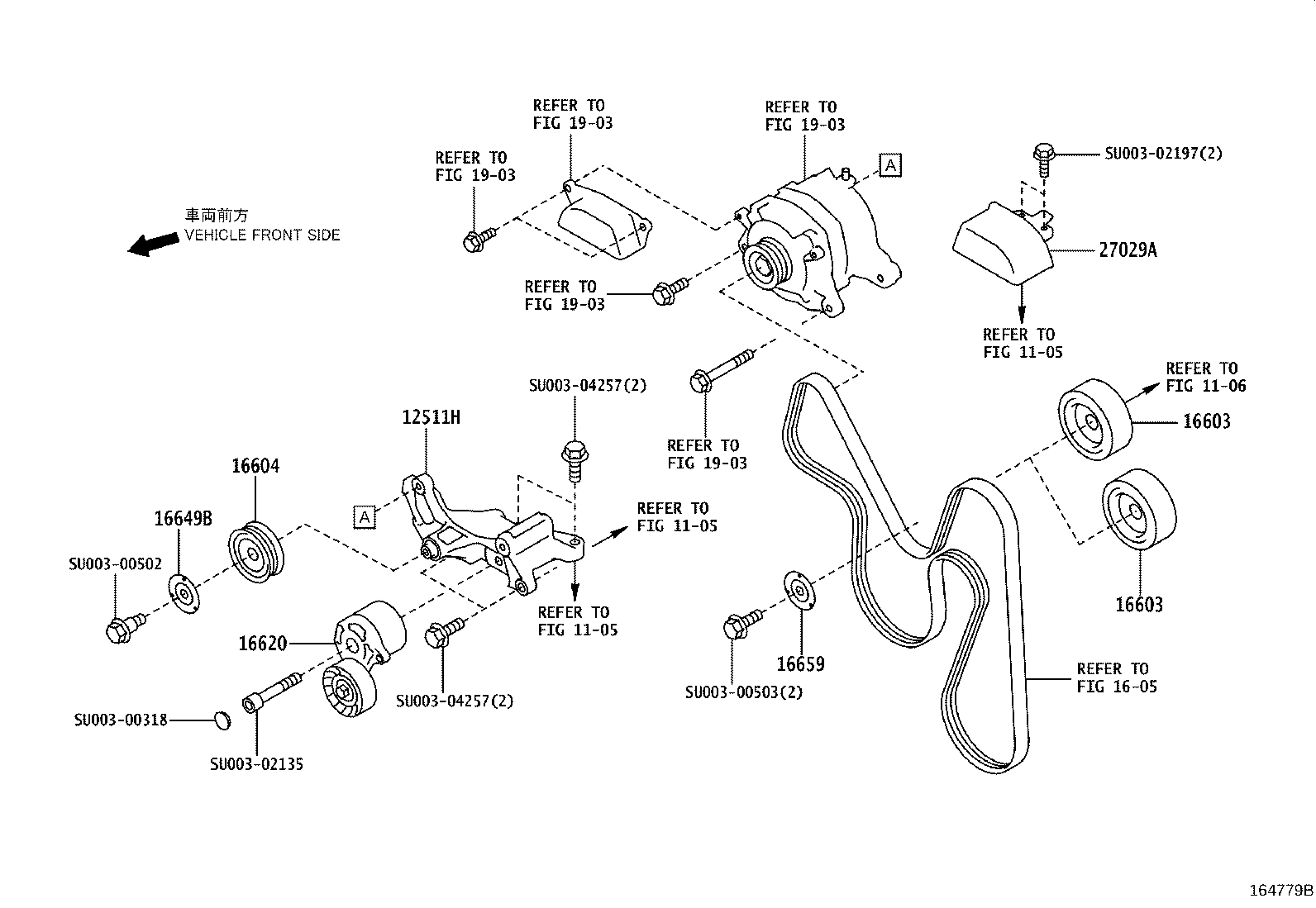

Figure 164778D 164778D 2012-03 → — Figure 164779B 164779B 2012-03 → —

Part groups

PNCDescription
12511H Bracket, Alternator
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
27029A Cover, Belt Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
