Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

34 part groups · 7 illustrations

Illustrations

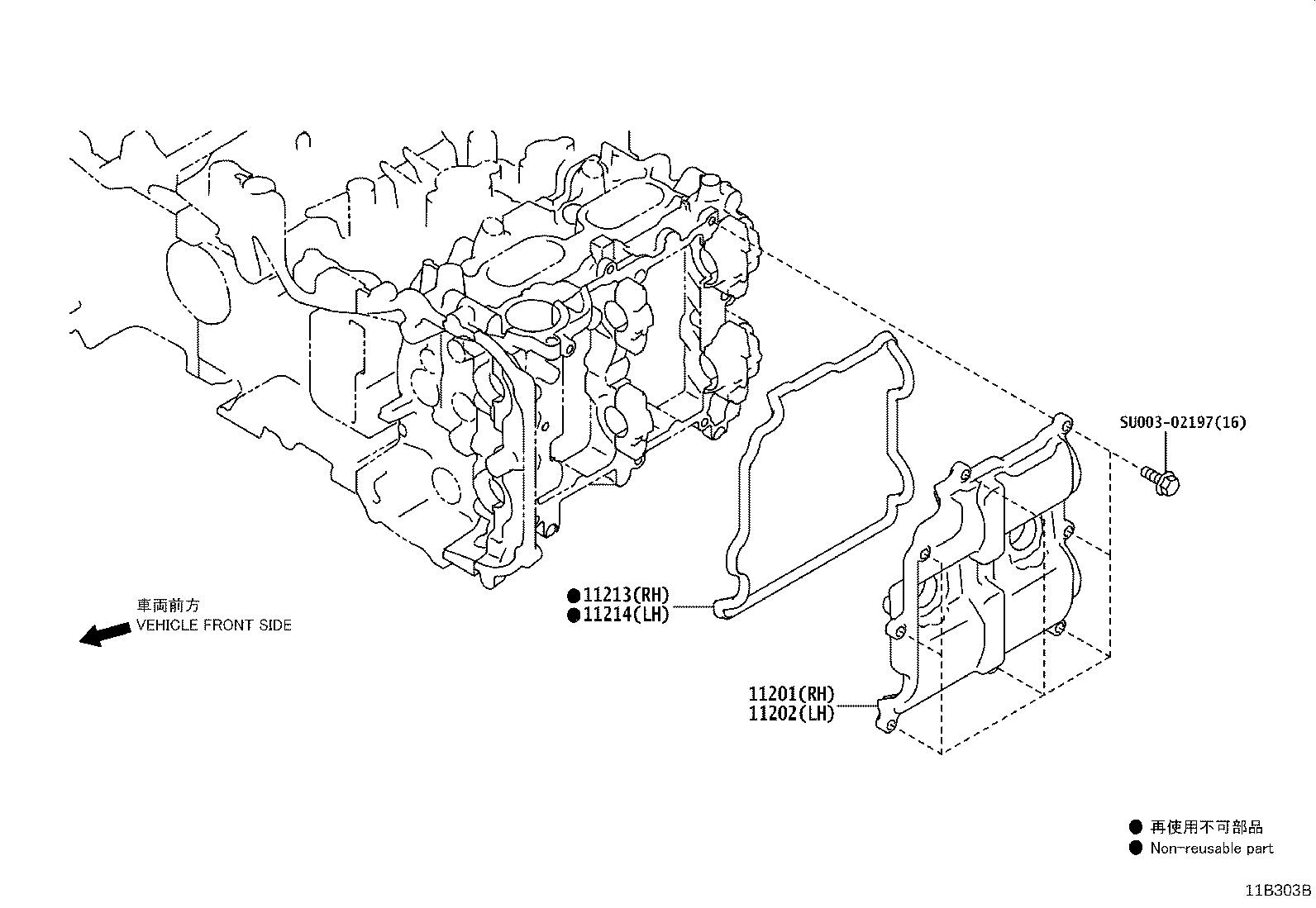

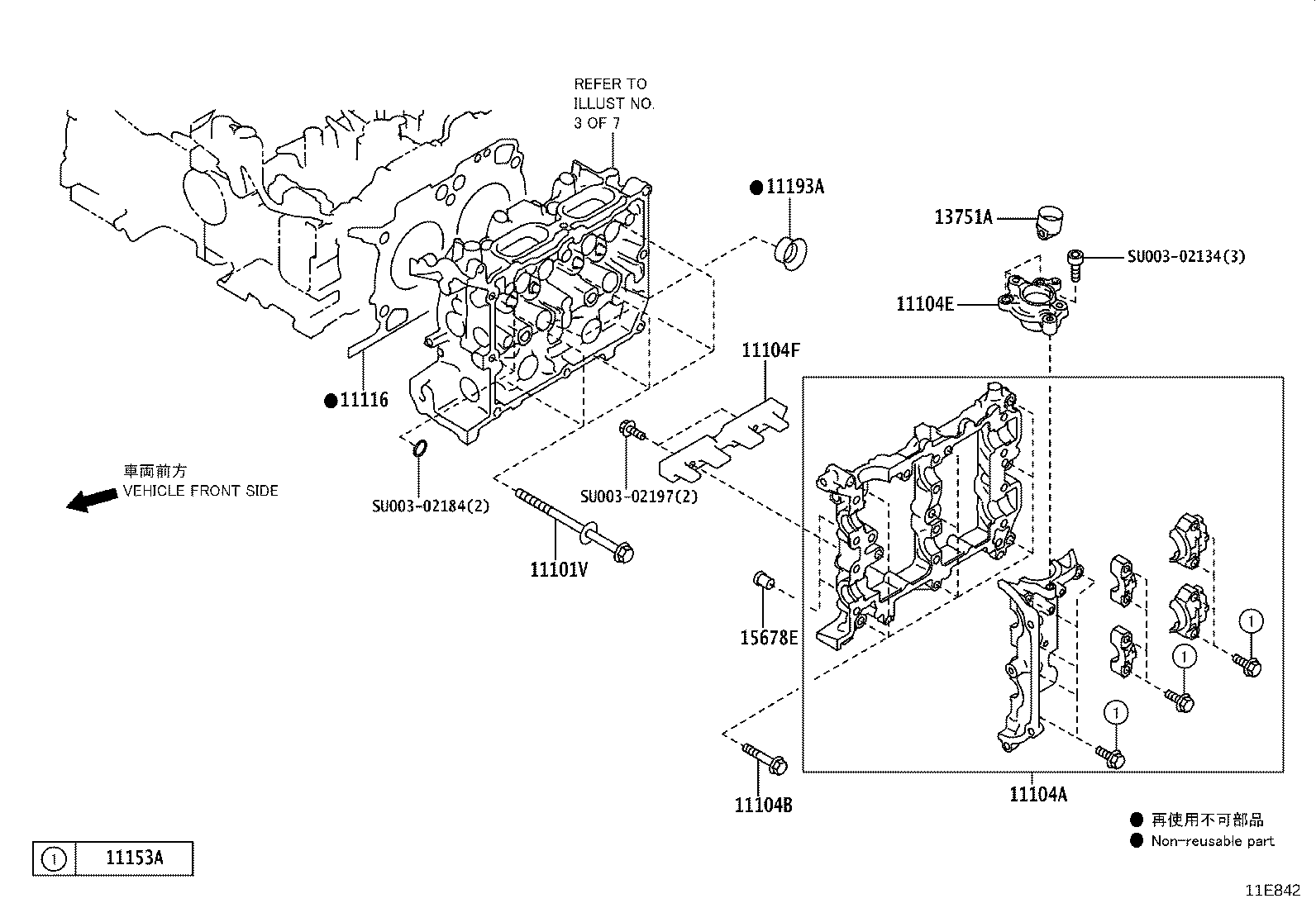

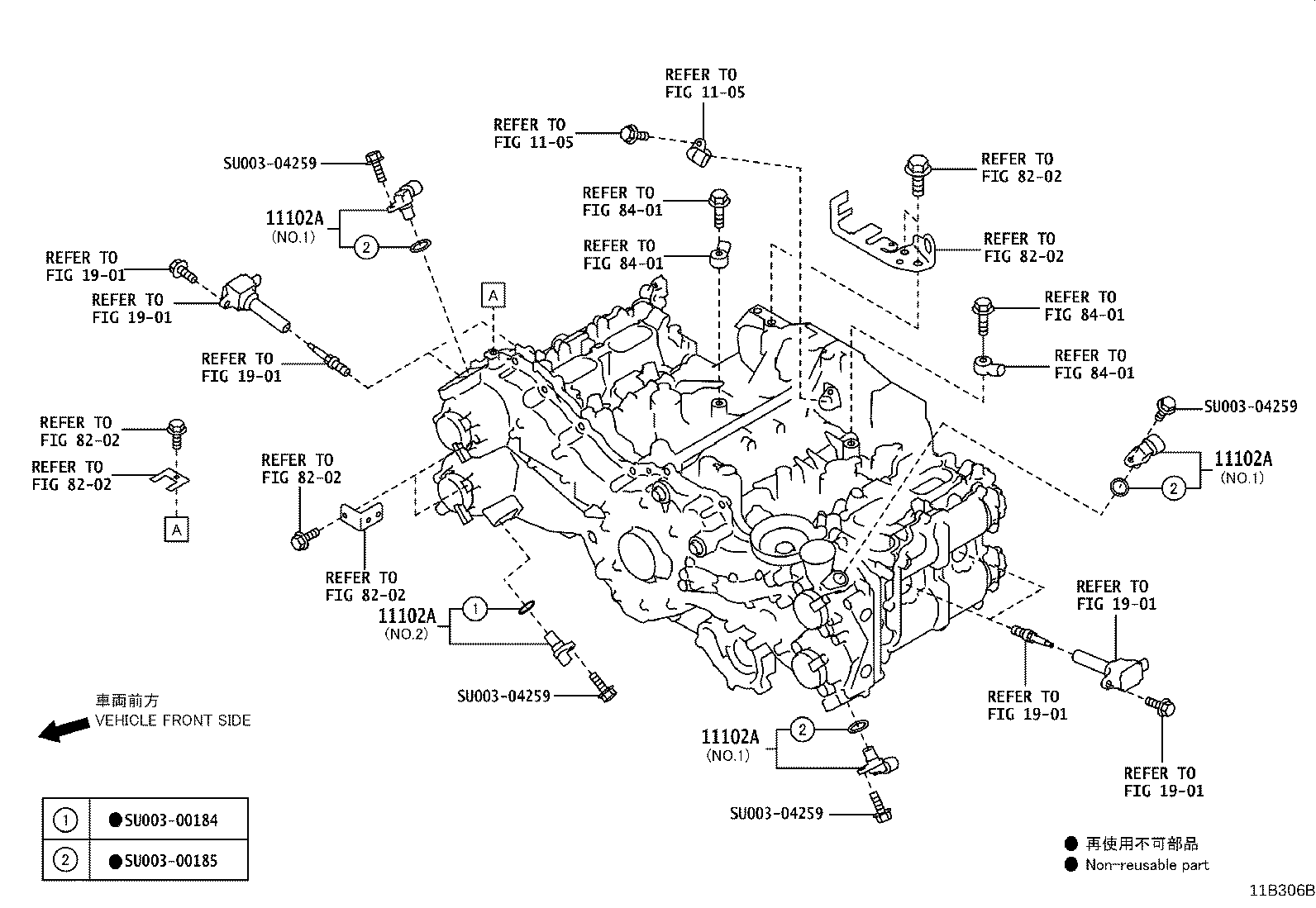

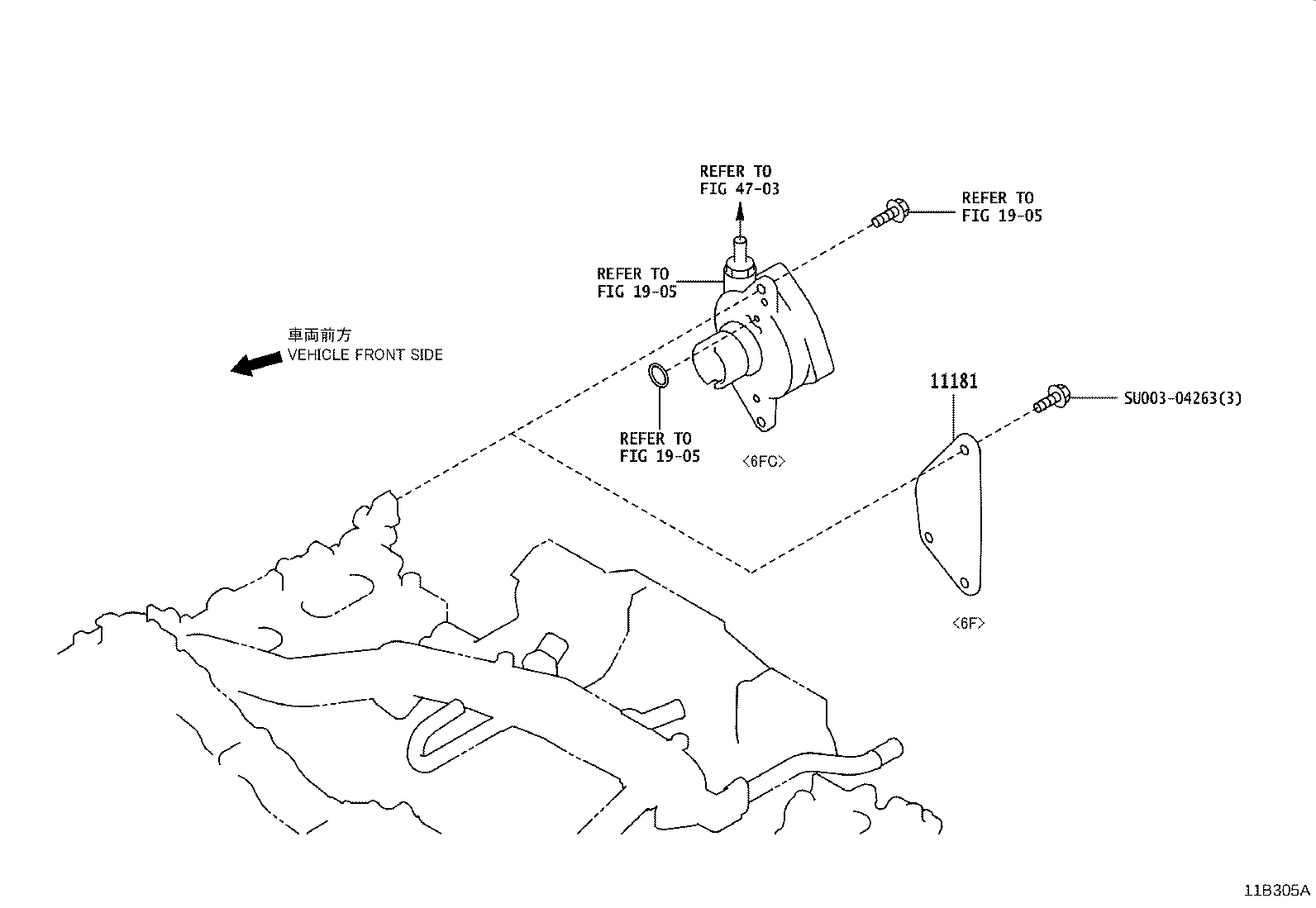

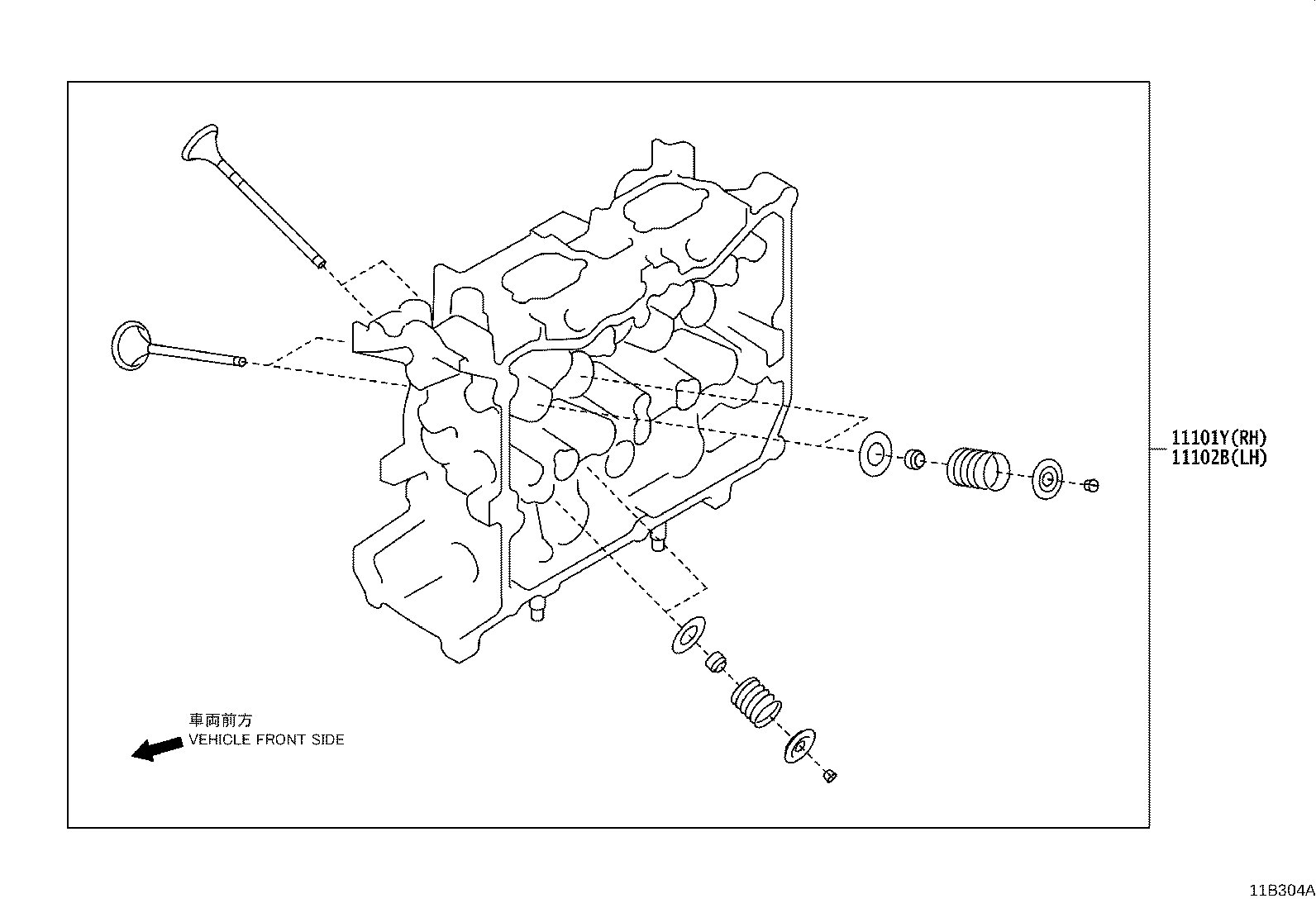

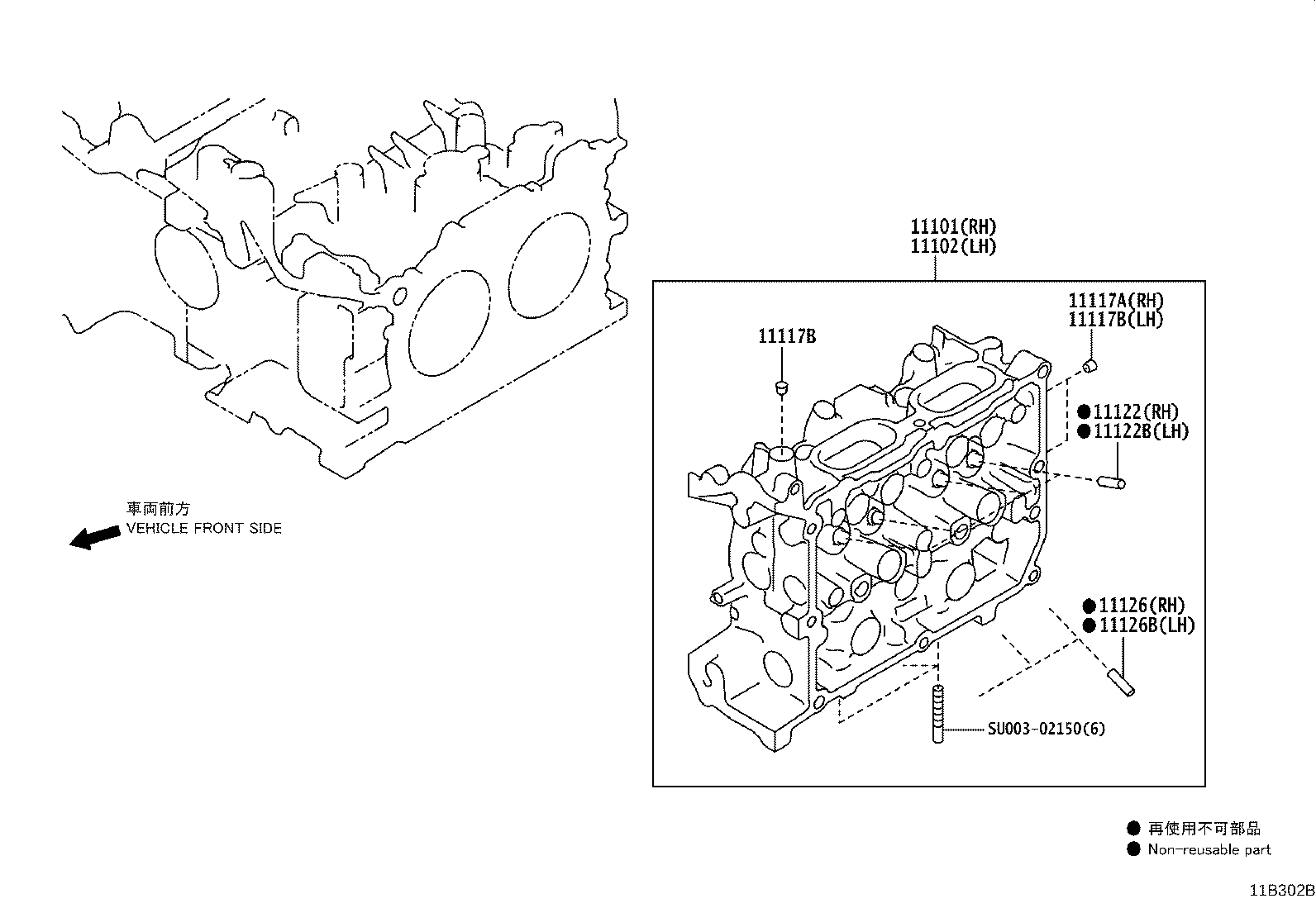

Figure 11E840 11E840 2016-07 → — Figure 11E842 11E842 2016-07 → — Figure 11B302B 11B302B 2016-07 → — Figure 11B303B 11B303B 2016-07 → — Figure 11B304A 11B304A 2016-07 → — Figure 11B305A 11B305A 2016-07 → — Figure 11B306B 11B306B 2016-07 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11101Y Head & Valve Set, Cylinder, RH
11102 Head, Cylinder, LH
11102A Sensor, Camshaft Position
11102B Head & Valve Set, Cylinder, LH
11103C Housing Sub-assy, Camshaft, RH
11103D Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
11103G Spacer, Oil, RH
11104A Housing Sub-assy, Camshaft, LH
11104B Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
11104E Case Assy, Pump Drive
11104F Spacer, Oil, LH
11115 Gasket, Cylinder Head
11116 Gasket, Cylinder Head, NO.2
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11122 Bush, Intake Valve Guide
11122B Bush, Intake Valve Guide, NO.2
11126 Bush, Exhaust Valve Guide
11126B Bush, Exhaust Valve Guide, NO.2
11151E Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11153A Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11181 Plate, Cylinder Head, Rear
11191A Gasket(FOR SPARK PLUG TUBE)
11193A Gasket, Spark Plug Tube, LH
11201 Cover Sub-assy, Cylinder Head
11202 Cover Sub-assy, Cylinder Head, LH
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
13751A Lifter, Valve
15044 Pipe Sub-assy, Camshaft Oil Feed
15678D Filter, Oil Control Valve, RH
15678E Filter, Oil Control Valve, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
