Water Pump

10 part groups · 2 illustrations

Illustrations

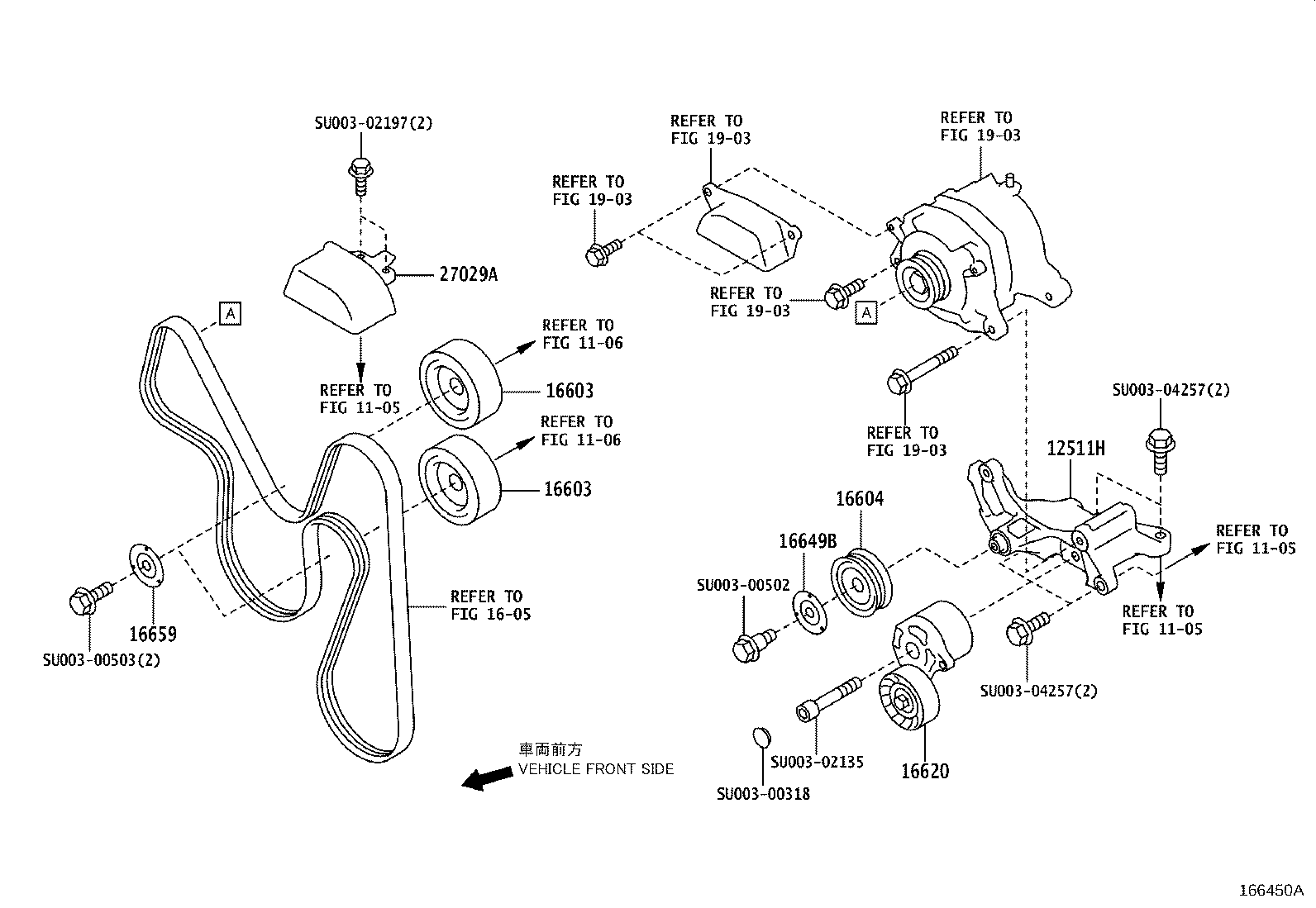

Figure 166449C 166449C 2016-07 → — Figure 166450A 166450A 2016-07 → —

Part groups

PNCDescription
12511H Bracket, Alternator
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
27029A Cover, Belt Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
