Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 9 illustrations

Illustrations

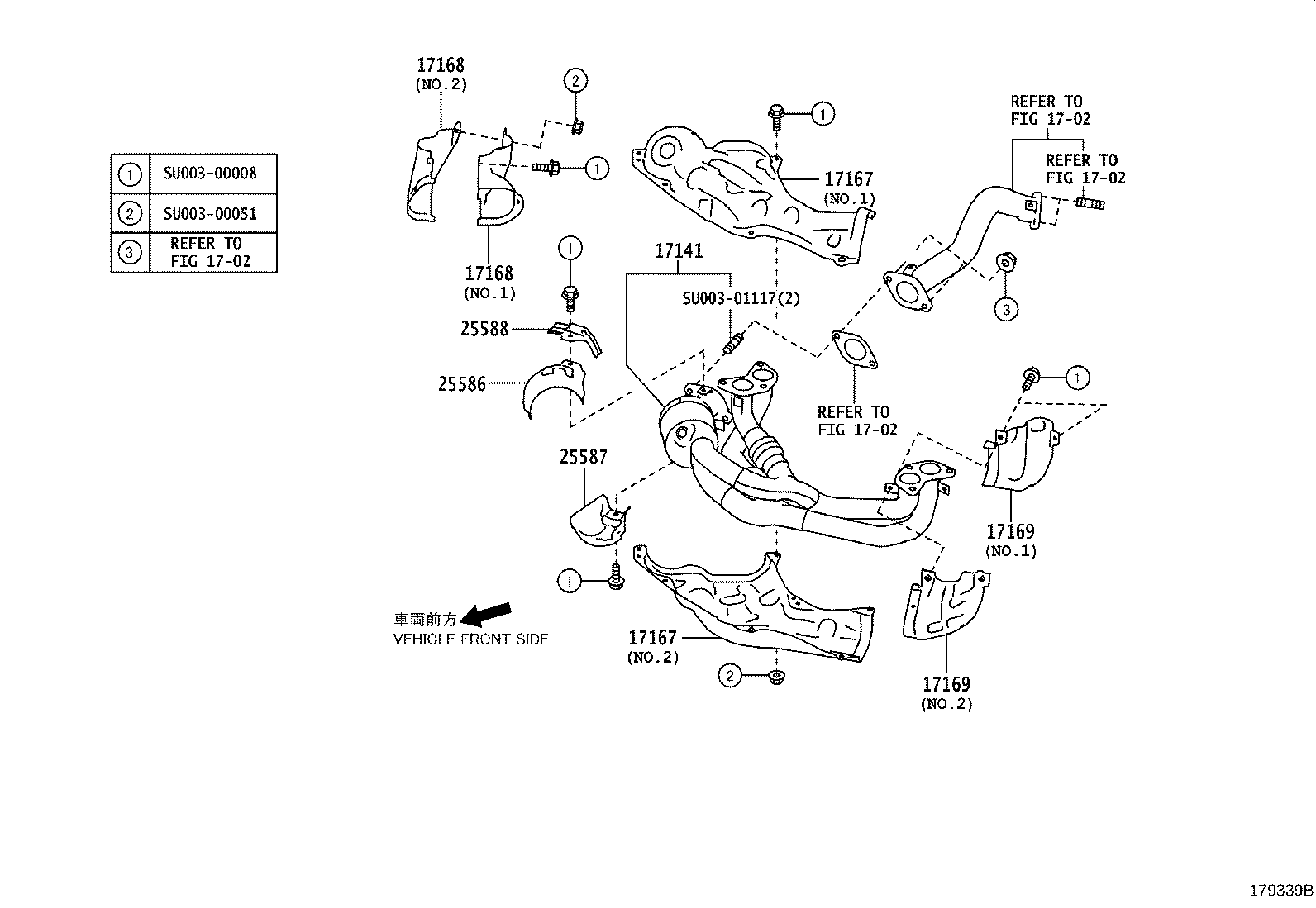

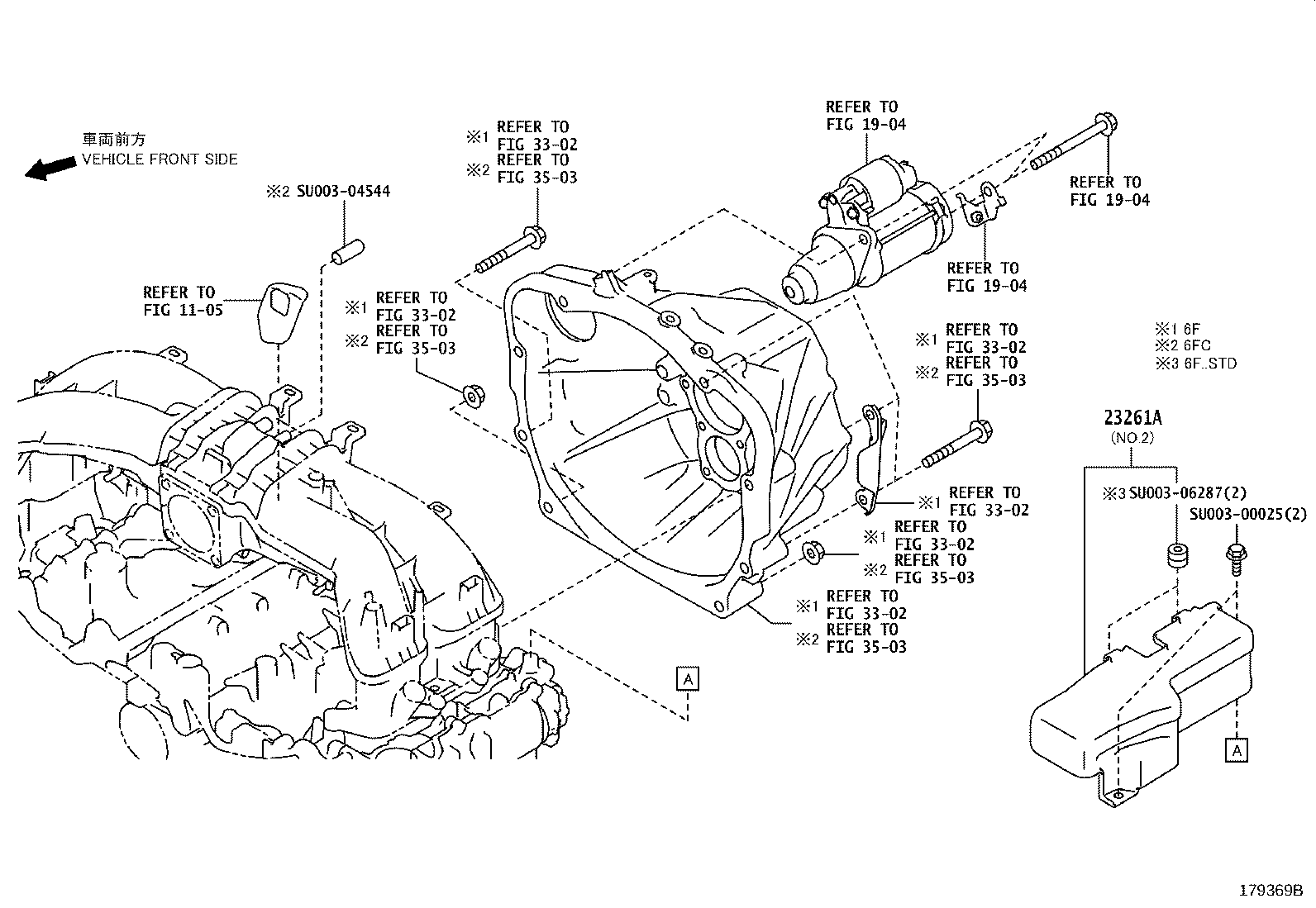

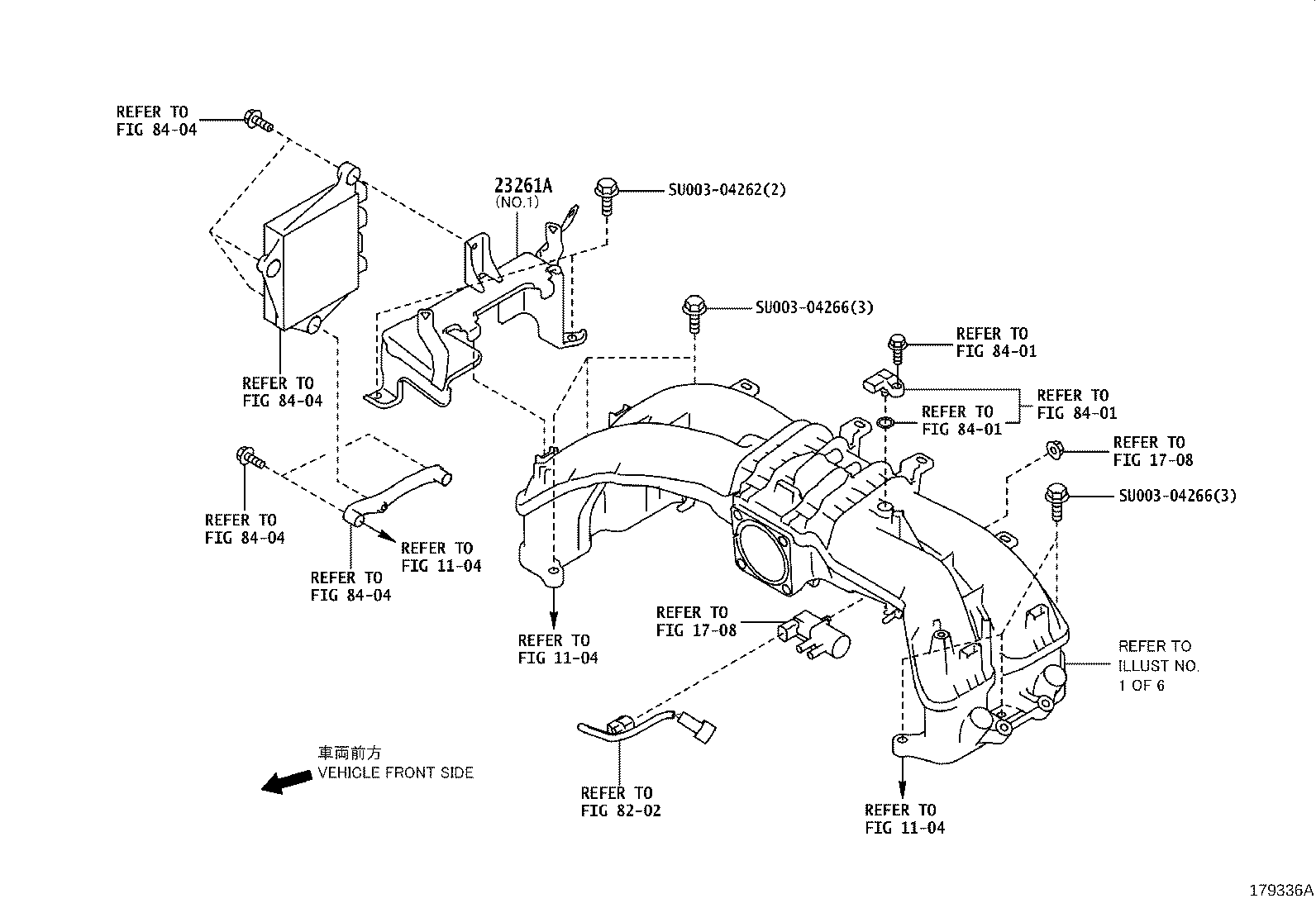

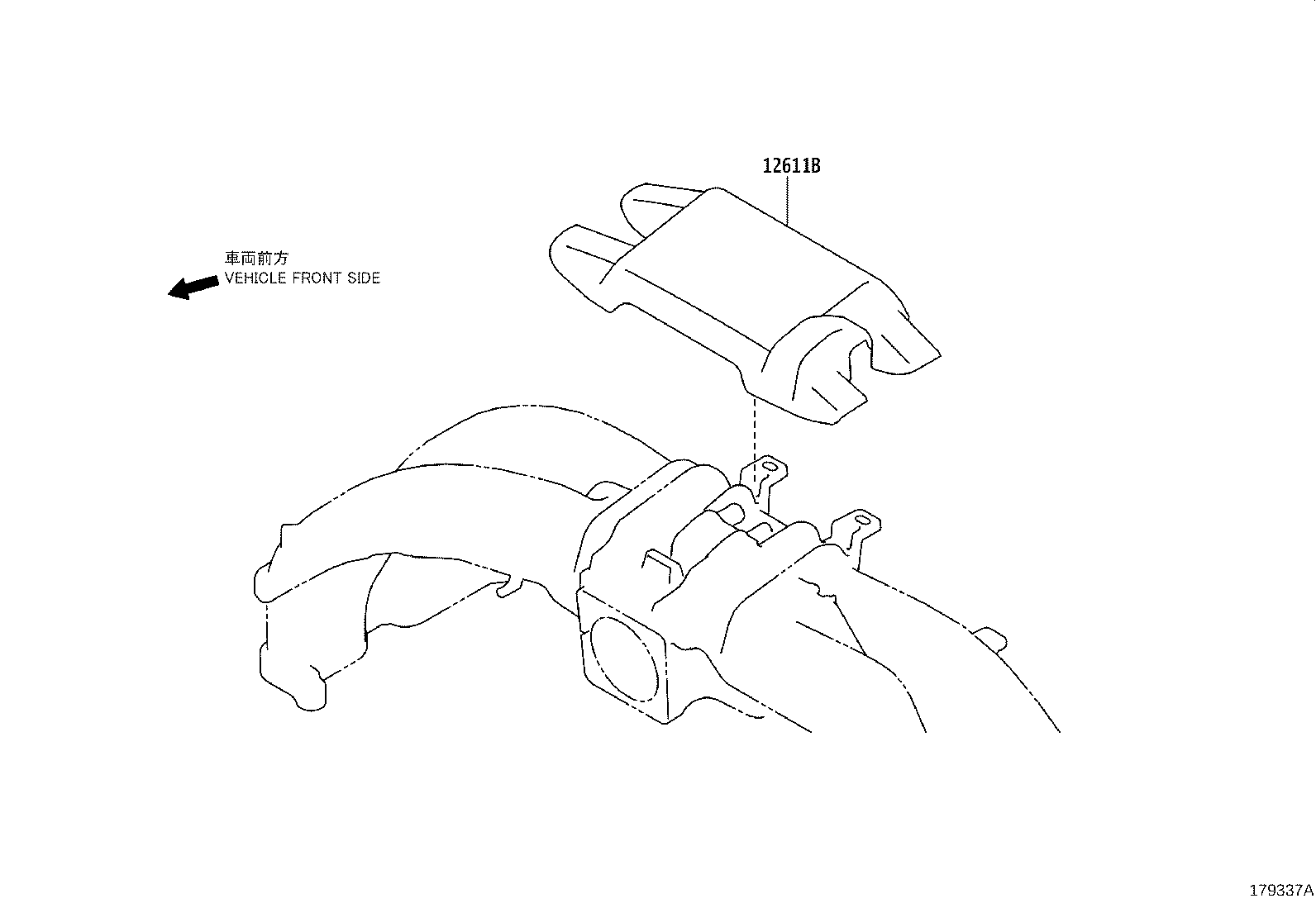

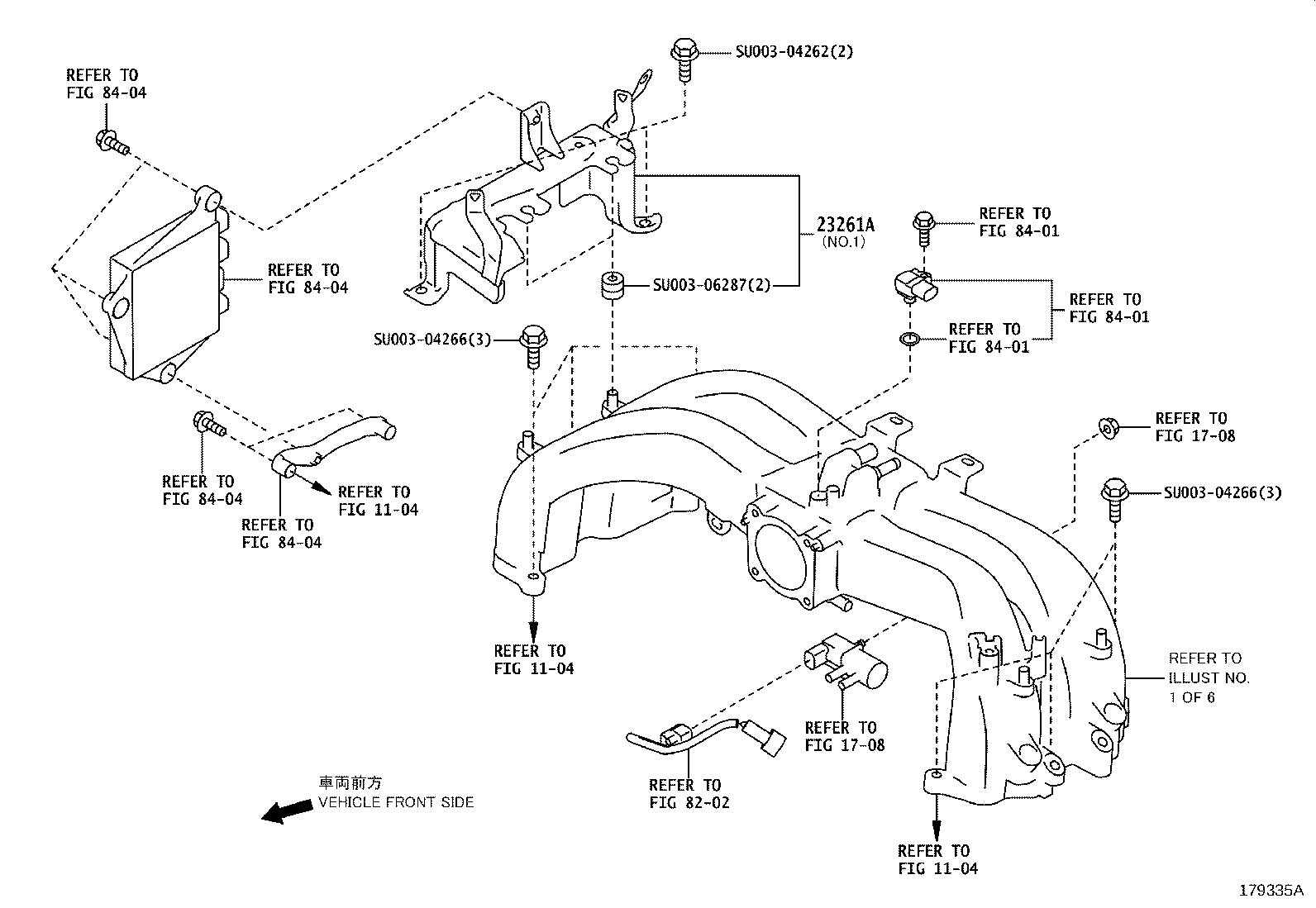

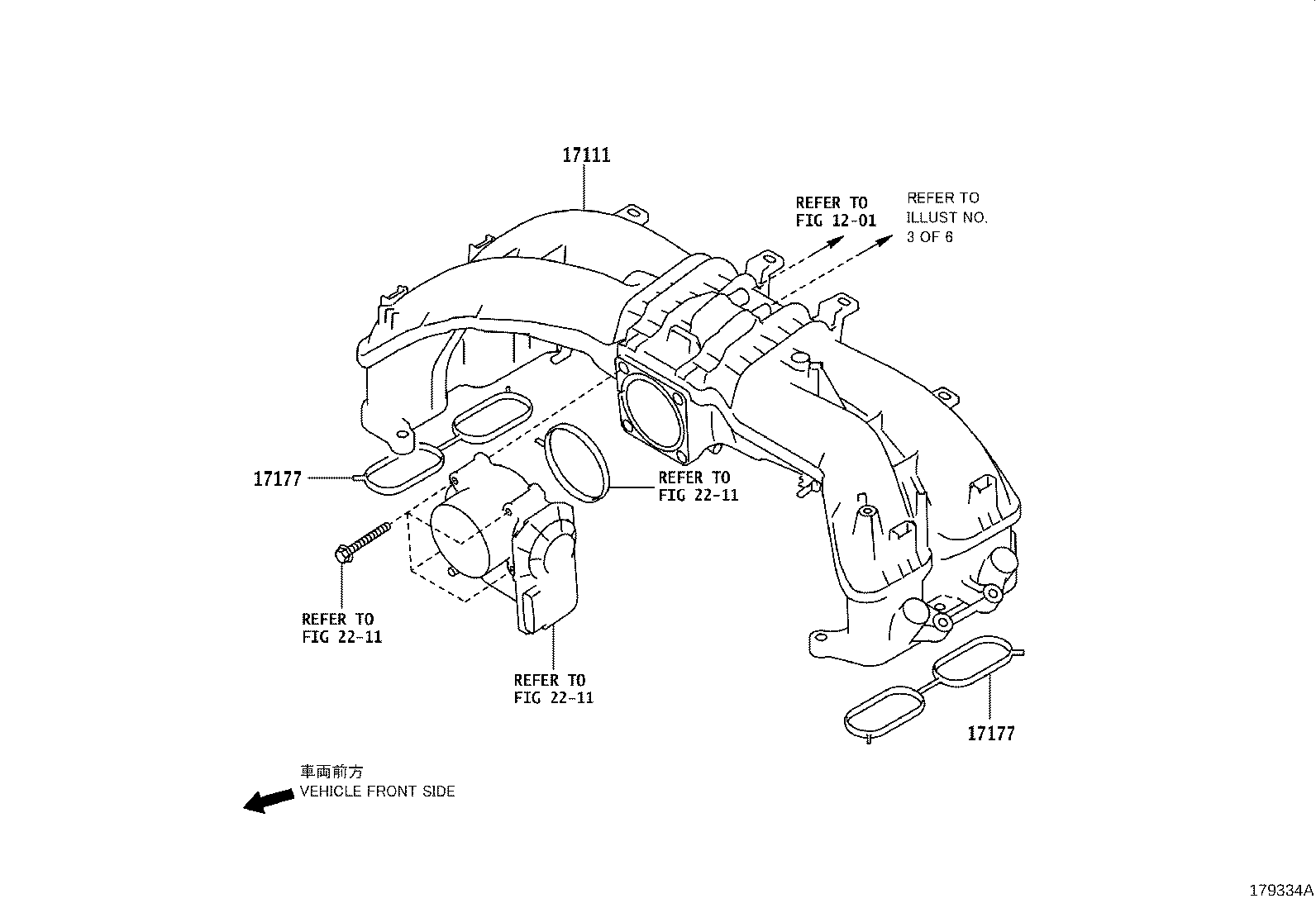

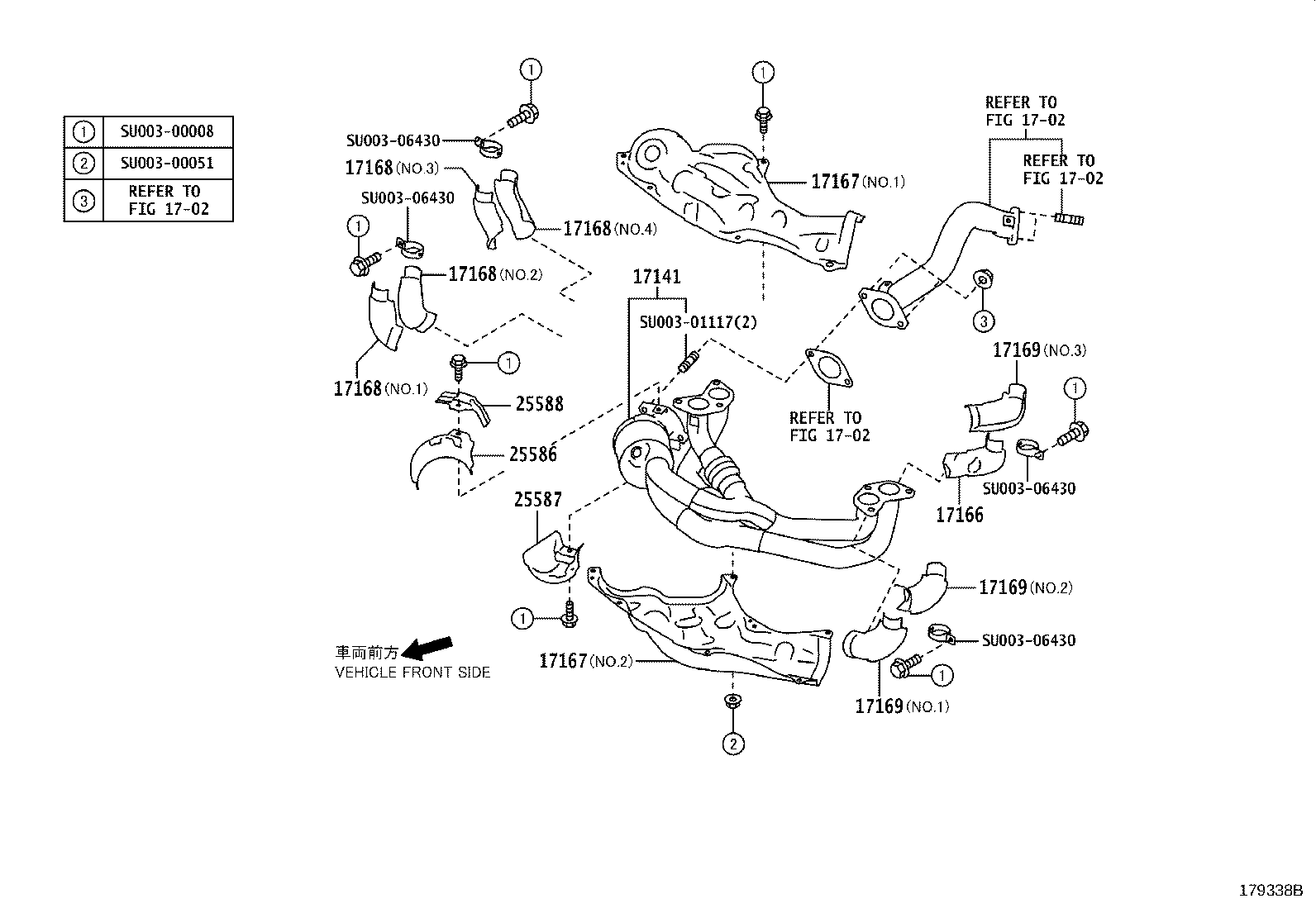

Figure 179333B 179333B 2016-07 → — Figure 179334A 179334A 2016-07 → — Figure 179335A 179335A 2016-07 → — Figure 179336A 179336A 2016-07 → — Figure 179369B 179369B 2016-07 → — Figure 179337A 179337A 2016-07 → — Figure 179338B 179338B 2016-07 → — Figure 179339B 179339B 2016-07 → — Figure 179341B 179341B 2016-07 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17129A Union, NO.1
17141 Manifold, Exhaust
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
17183A Collar, Manifold
23261A Cover, Injector
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25588 Insulator, Manifold Converter, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
