Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

26 part groups · 3 illustrations

Illustrations

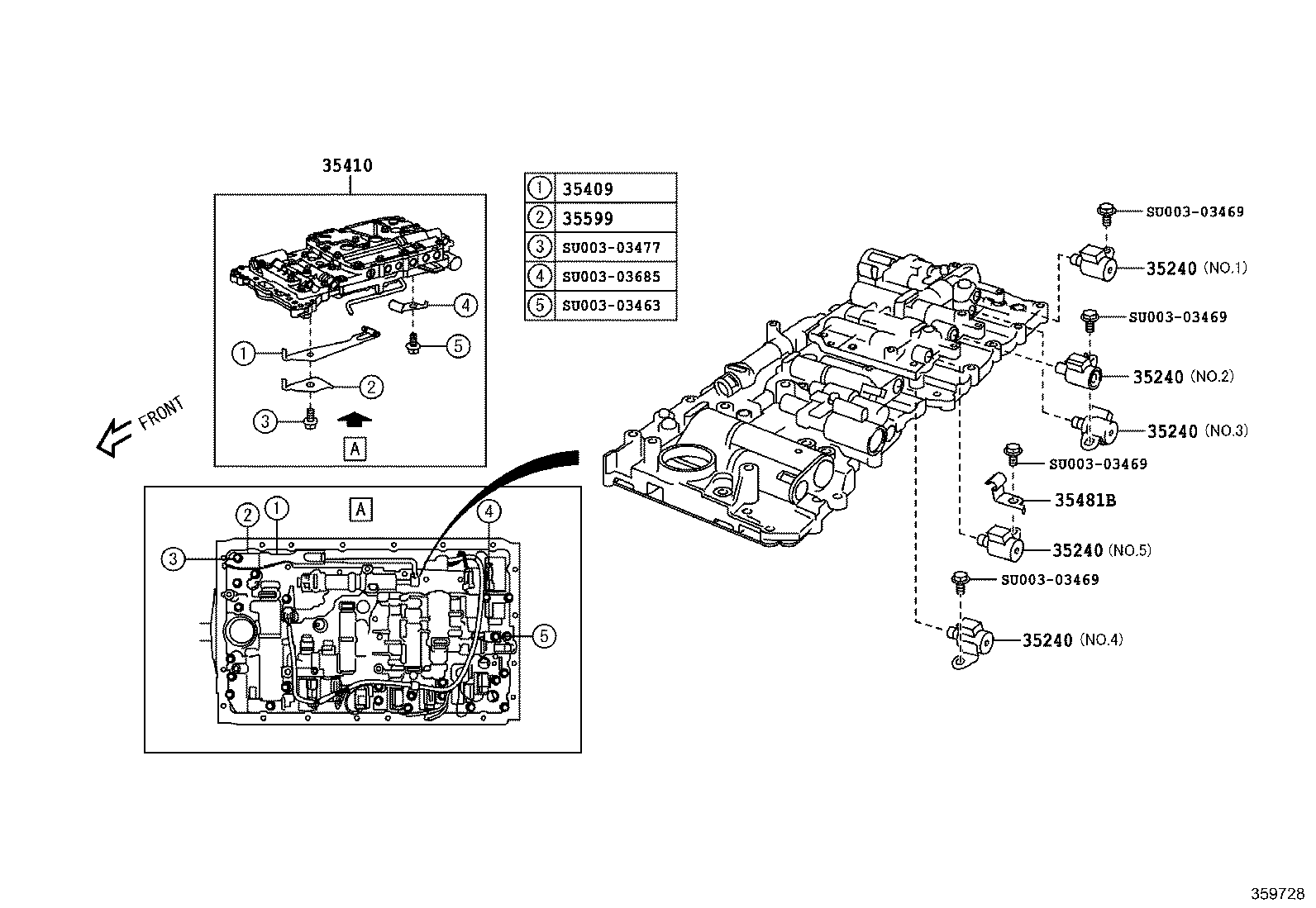

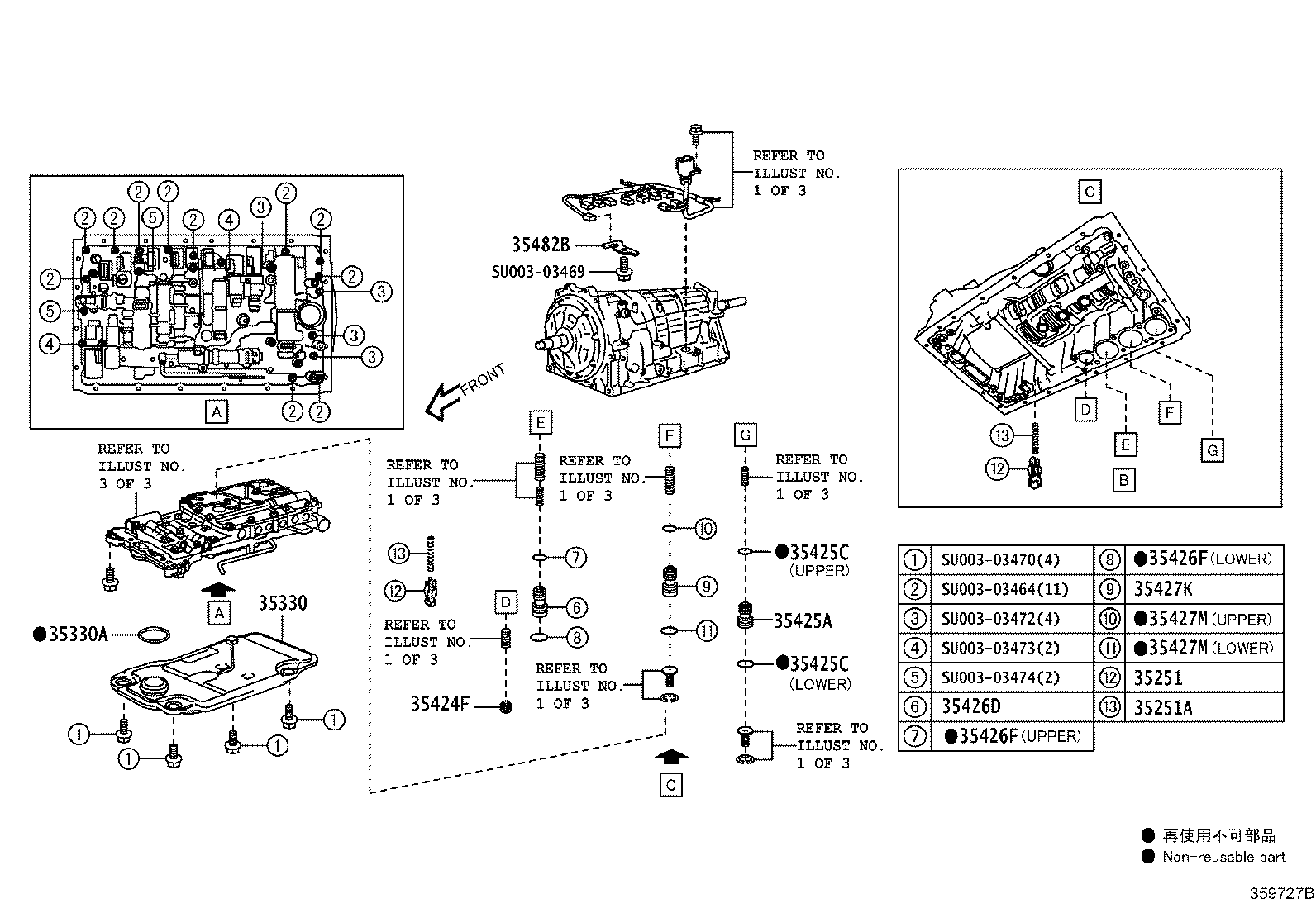

Figure 359726A 359726A 2016-07 → — Figure 359727B 359727B 2016-07 → — Figure 359728 359728 2016-07 → —

Part groups

PNCDescription
35205A Spring Sub-assy, B-3 Accumulator
35205B Ring, Hole Snap (FOR B-3 ACCUMULATOR SPRING)
35207B Spring Sub-assy, C-2 Accumulator
35207C Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35240 Solenoid Assy, Automatic Transmission 3Way
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35330 Strainer Assy, Valve Body Oil
35330A Ring, O (FOR OIL STRAINER)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35424F Valve, C-1 Accumulator
35424G Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427K Piston, B-3 Accumulator
35427L Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
35427M Ring, O (FOR B-3 ACCUMULATOR PISTON)
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35599 Cover, Manual Detent Spring
82125J Wire, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
