Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

34 part groups · 3 illustrations

Illustrations

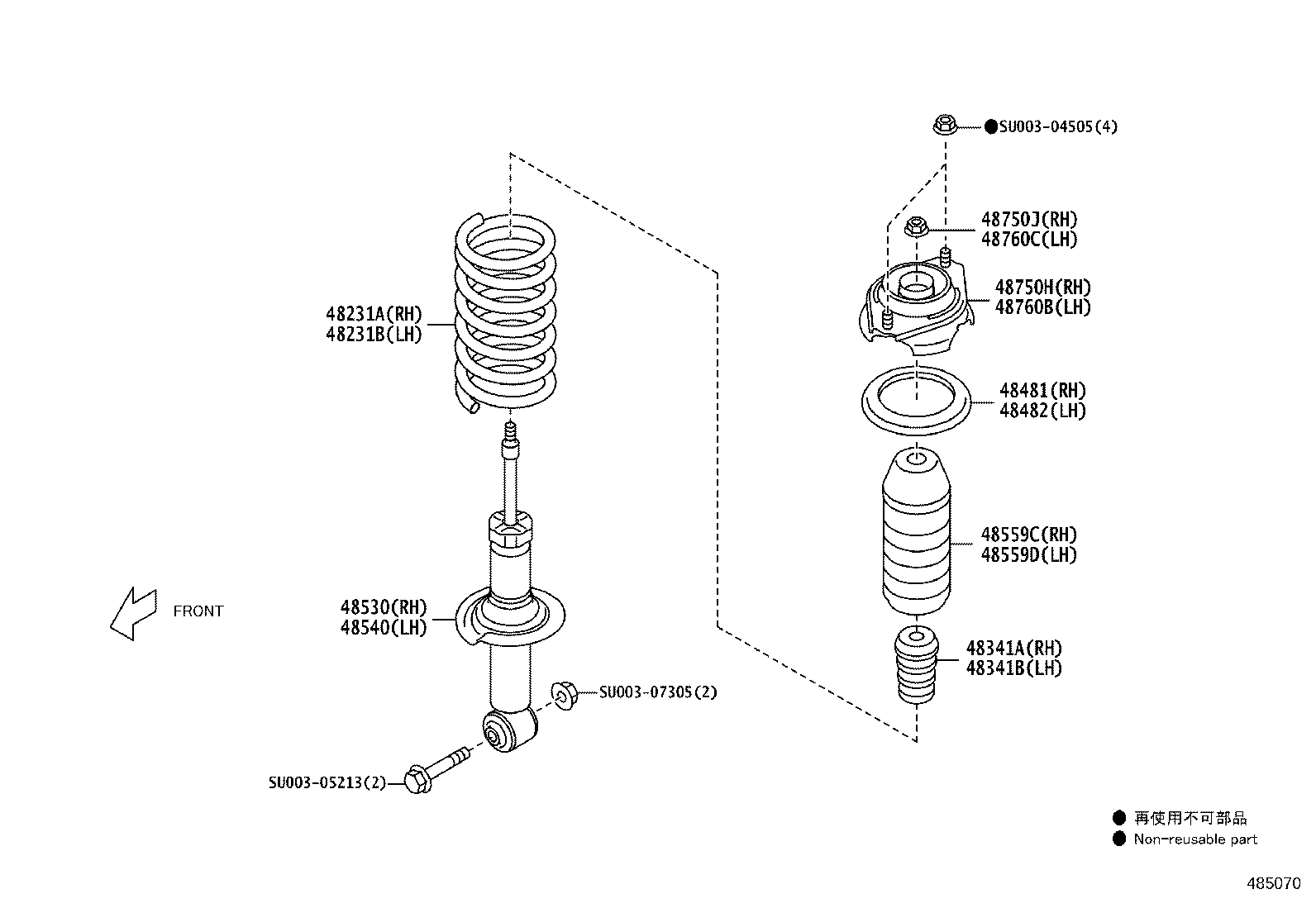

Figure 485069 485069 2016-07 → — Figure 484397B 484397B 2016-07 → — Figure 485070 485070 2016-07 → —

Part groups

PNCDescription
42304 Carrier Sub-assy, Rear Axle, RH
42305 Carrier Sub-assy, Rear Axle, LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48481 Seat, Rear Spring, Upper
48482 Seat, Rear Spring, Upper LH
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48559C Cover, Rear Shock Absorber Dust, RH NO.1
48559D Cover, Rear Shock Absorber Dust, LH NO.1
48705 Link Sub-assy, Toe Control, RH
48706B Link Sub-assy, Toe Control, LH
48706C Bush Sub-assy, Lateral Control Rod
48710A Arm Assy, Rear Suspension, NO.1 RH
48720A Arm Assy, Rear Suspension, NO.1 LH
48725B Bush, Rear Suspension Arm, NO.1
48725C Bush, Rear Suspension Arm, NO.2
48725F Bush, Rear Axle Carrier, RH
48725G Bush, Rear Axle Carrier, LH
48730F Arm Assy, Rear Suspension, NO.2 RH
48740F Arm Assy, Rear Suspension, NO.2 LH
48750H Support Assy, Rear Suspension, RH
48750J Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48751 Bush, Rear Axle Mounting
48760B Support Assy Rear Suspension, LH
48760C Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48802 Link Sub-assy, Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48812 Bar, Stabilizer, Rear
48824R Bracket, Stabilizer(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
