Toyota 86
2016-07 → present · chassis ZN6 · catalogue 264420 · United States
Supported model
Data version 2019-08
Side Member
49 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55713C | Panel, Cowl Top Side, RH |
| 55714C | Panel, Cowl Top Side, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61032A | Pillar Sub-assy, NO.1 Inner, RH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61042A | Pillar Sub-assy, NO.1 Inner, LH |
| 61057A | Extension Sub-assy, Quarter Lock Pillar |
| 61058A | Extension Sub-assy, Quarter Lock Pillar, LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61135 | Reinforcement, Front Body Pillar, Upper RH |
| 61136 | Reinforcement, Front Body Pillar, Upper LH |
| 61158A | Extension, Front Piller, Lower RH |
| 61159K | Extension, Front Piller, Lower LH |
| 61165 | Pillar, Front Body Lower Inner, RH |
| 61166 | Pillar, Front Body Lower Inner, LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61431 | Panel, Rocker, Outer Rear RH |
| 61432 | Panel, Rocker, Outer Rear LH |
| 61452 | Panel, Rocker Inner, Front RH |
| 61453A | Panel, Rocker Inner, Rear RH |
| 61462 | Panel, Rocker, Inner Front LH |
| 61463A | Panel, Rocker, Inner Rear LH |
| 61601B | Panel Sub-assy, Quarter, RH |
| 61602C | Panel Sub-assy, Quarter, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613E | Panel, Quarter, Inner RH |
| 61614E | Panel, Quarter, Inner LH |
| 61617A | Panel, Quarter Inner, Rear RH |
| 61618A | Panel, Quarter, Inner Rear LH |
| 61627E | Extension, Quarter Panel, Rear Lower RH |
| 61628D | Extension, Quarter Panel, Rear Lower LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 62155B | Pad, Quarter Panel |
| 65631C | Plate, Rear Wheel House, Front RH |
| 65632B | Plate, Rear Whell House, Front LH |

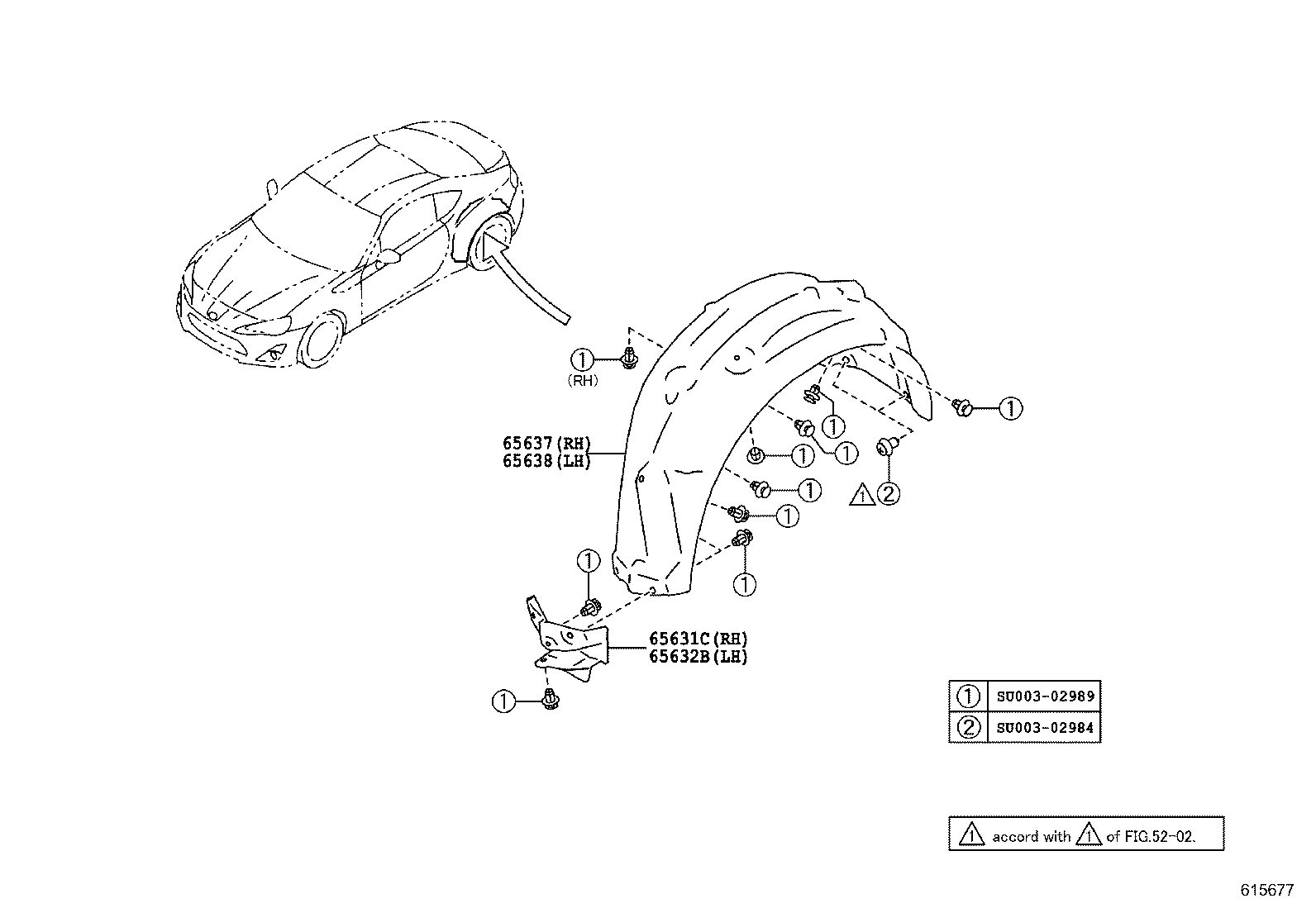

| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
