Toyota 86
2016-07 → present · chassis ZN6 · catalogue 264420 · United States
Supported model
Data version 2019-08
Front Door Panel & Glass
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62616 | Stopper, Front Door Sash |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |

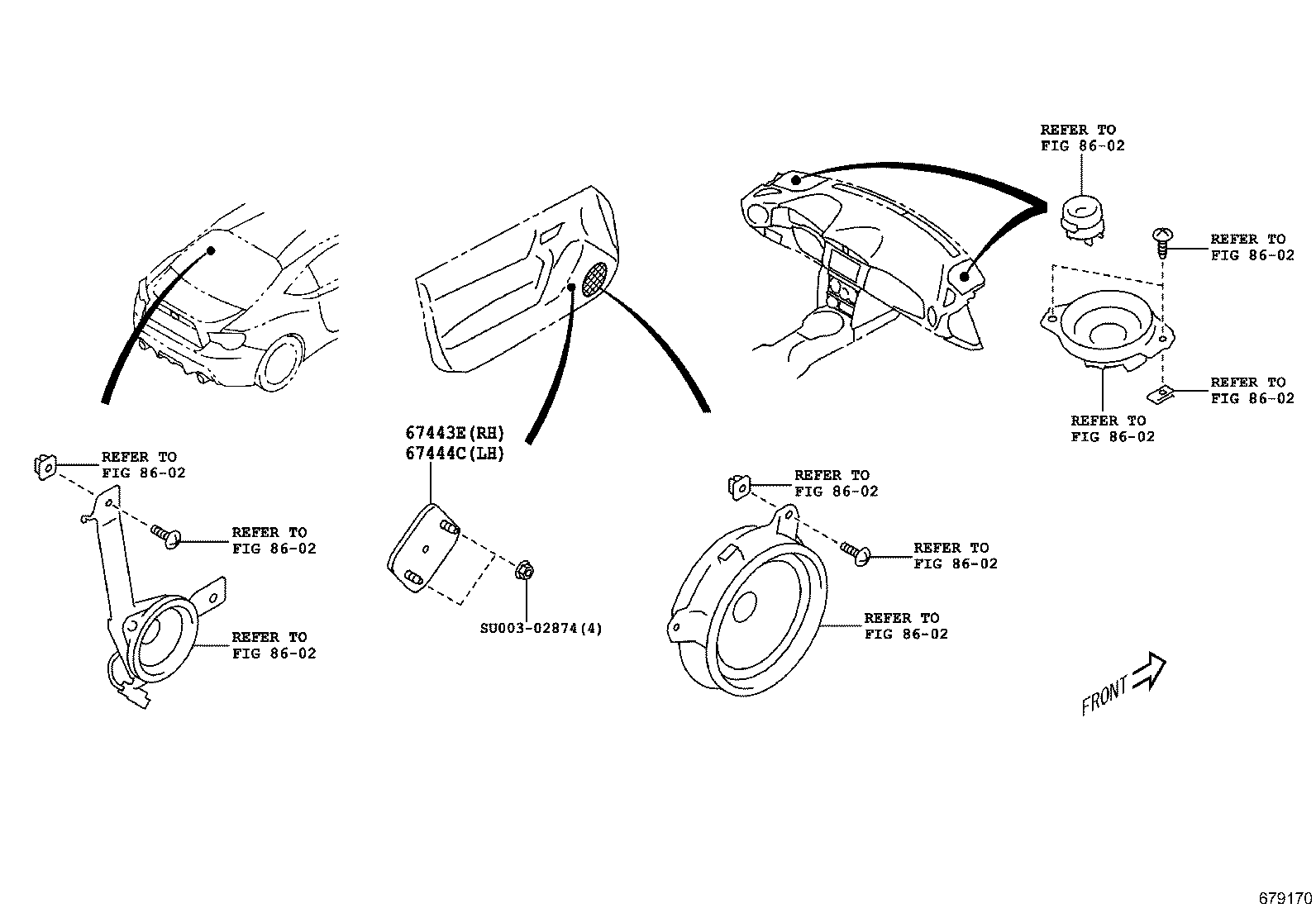

| 67443E | Plate, Front Door Inside Panel, RH |
| 67444C | Plate, Front Door Inside Panel, LH |
| 67469 | Protector, Front Door Guide |

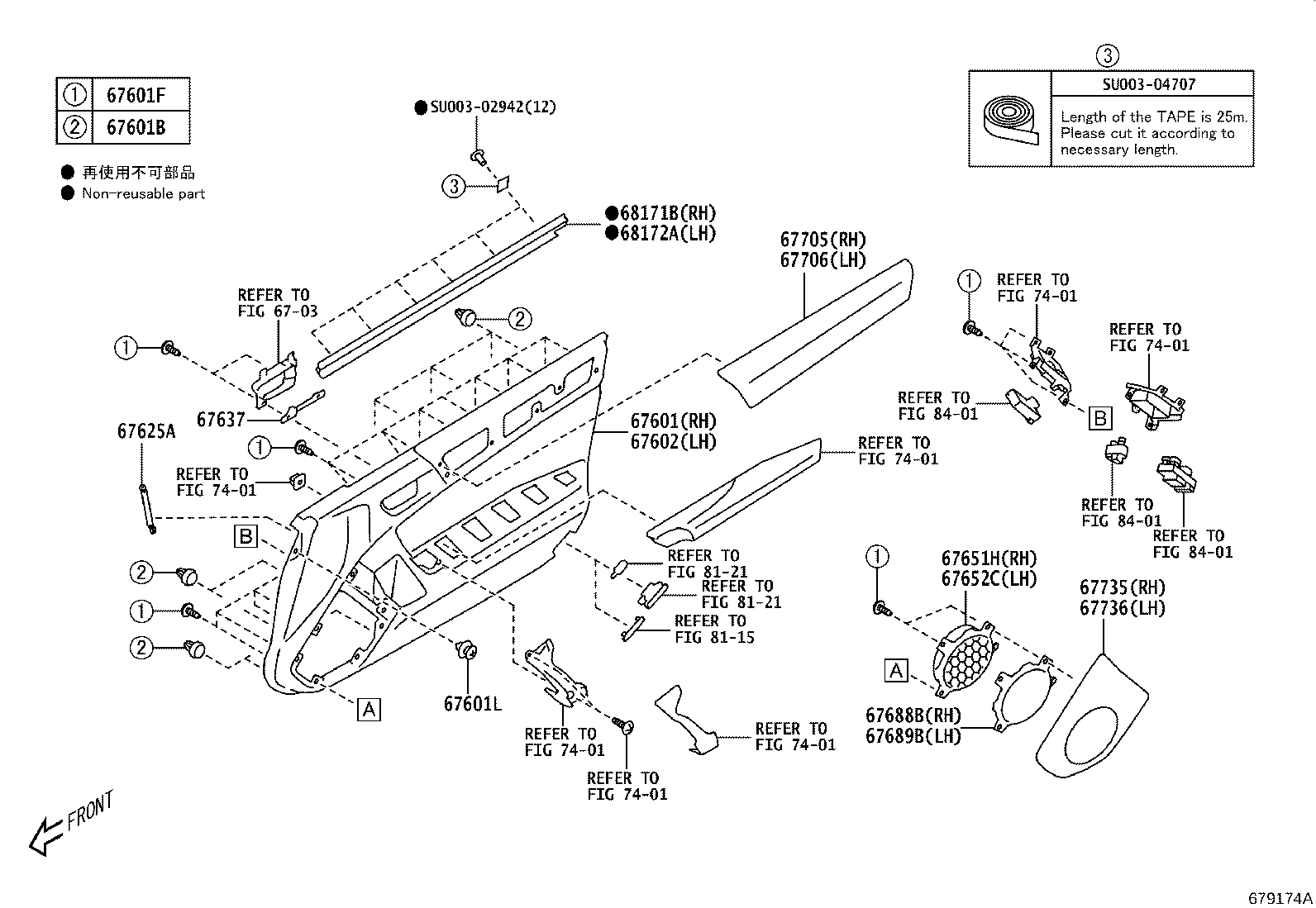

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601F | Screw(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67637 | Plate, Front Door Trim |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67688B | Grille, Speaker Door, NO.2 RH |
| 67689B | Grille, Speaker Door, NO.2 LH |
| 67705 | Ornament Sub-assy, Front Door Trim, RH |
| 67706 | Ornament Sub-assy, Front Door Trim, LH |
| 67735 | Pad, Front Door Trim, Lower RH |
| 67736 | Pad, Front Door Trim, Lower LH |
| 67811C | Cover, Front Door Hole |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |

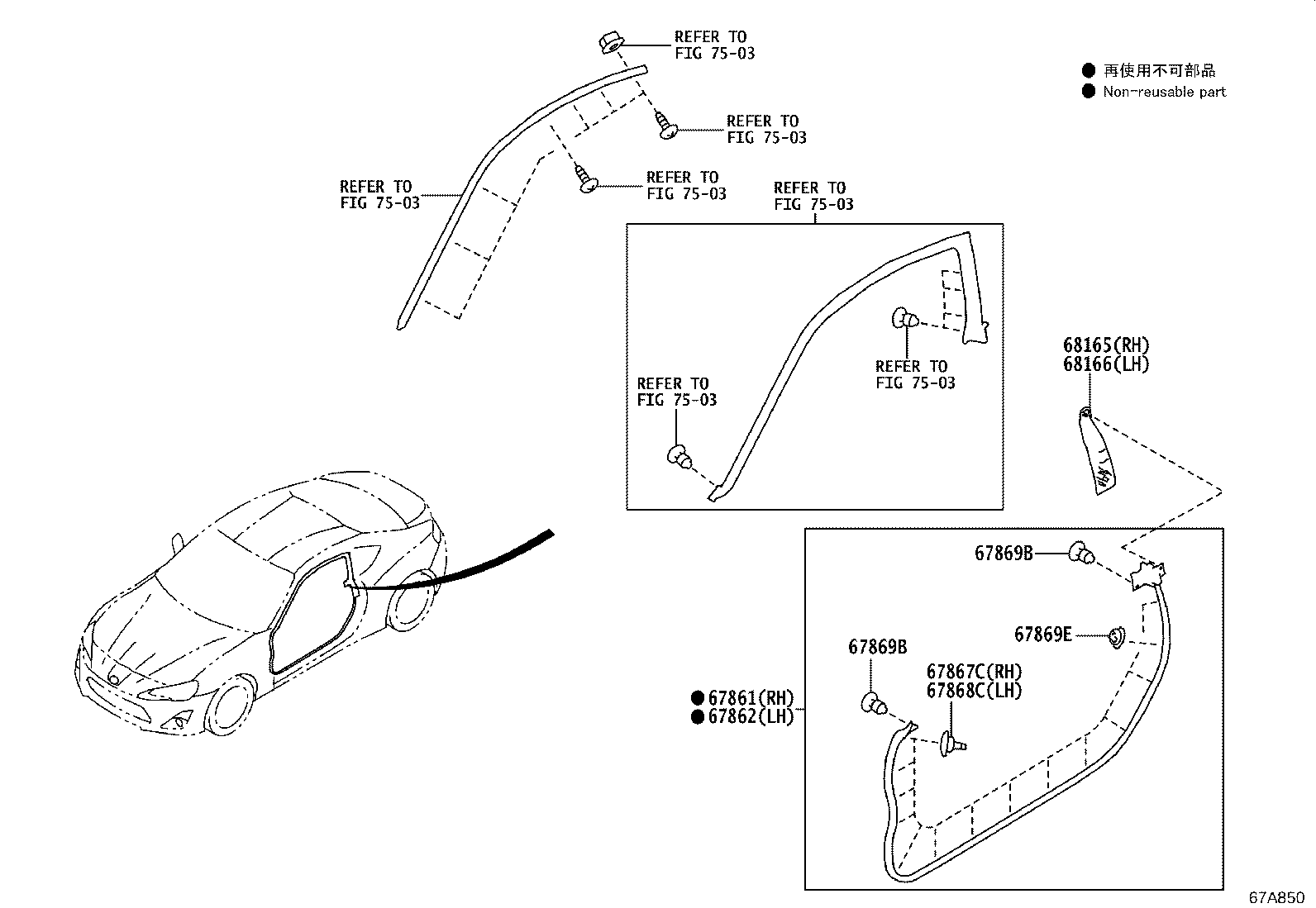

| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68165 | Weatherstrip, Door Rear Corner, RH |
| 68166 | Weatherstrip, Door Rear Corner, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
