Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

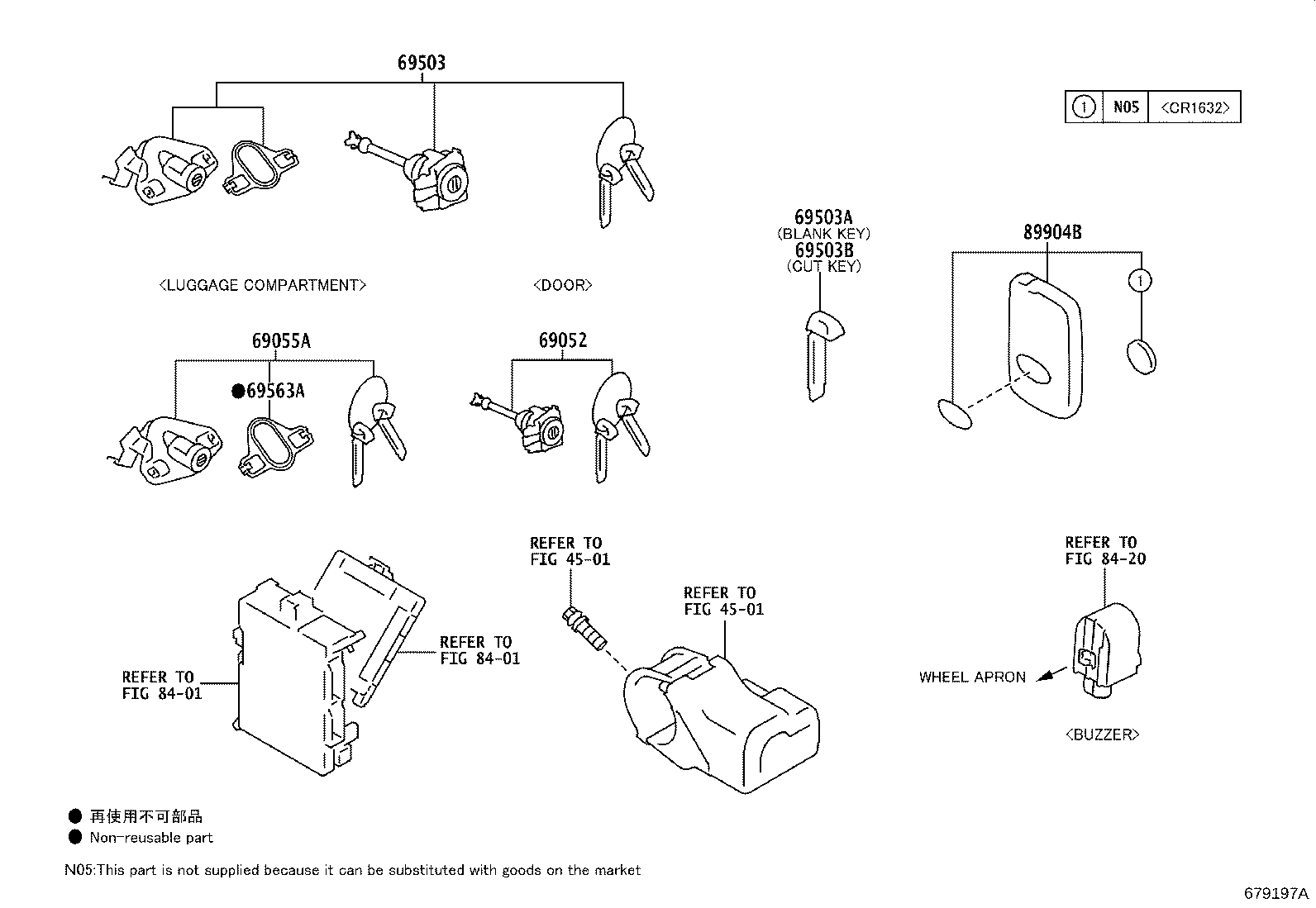

Figure 679196B 679196B 2016-07 → — Figure 679197A 679197A 2016-07 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69563A Pad, Luggage Compartment Door Lock Cylinder
88027 Label, Key Less
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
8907A Switch Set, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
