Toyota 86
2016-07 → present · chassis ZN6 · catalogue 264420 · United States
Supported model
Data version 2019-08

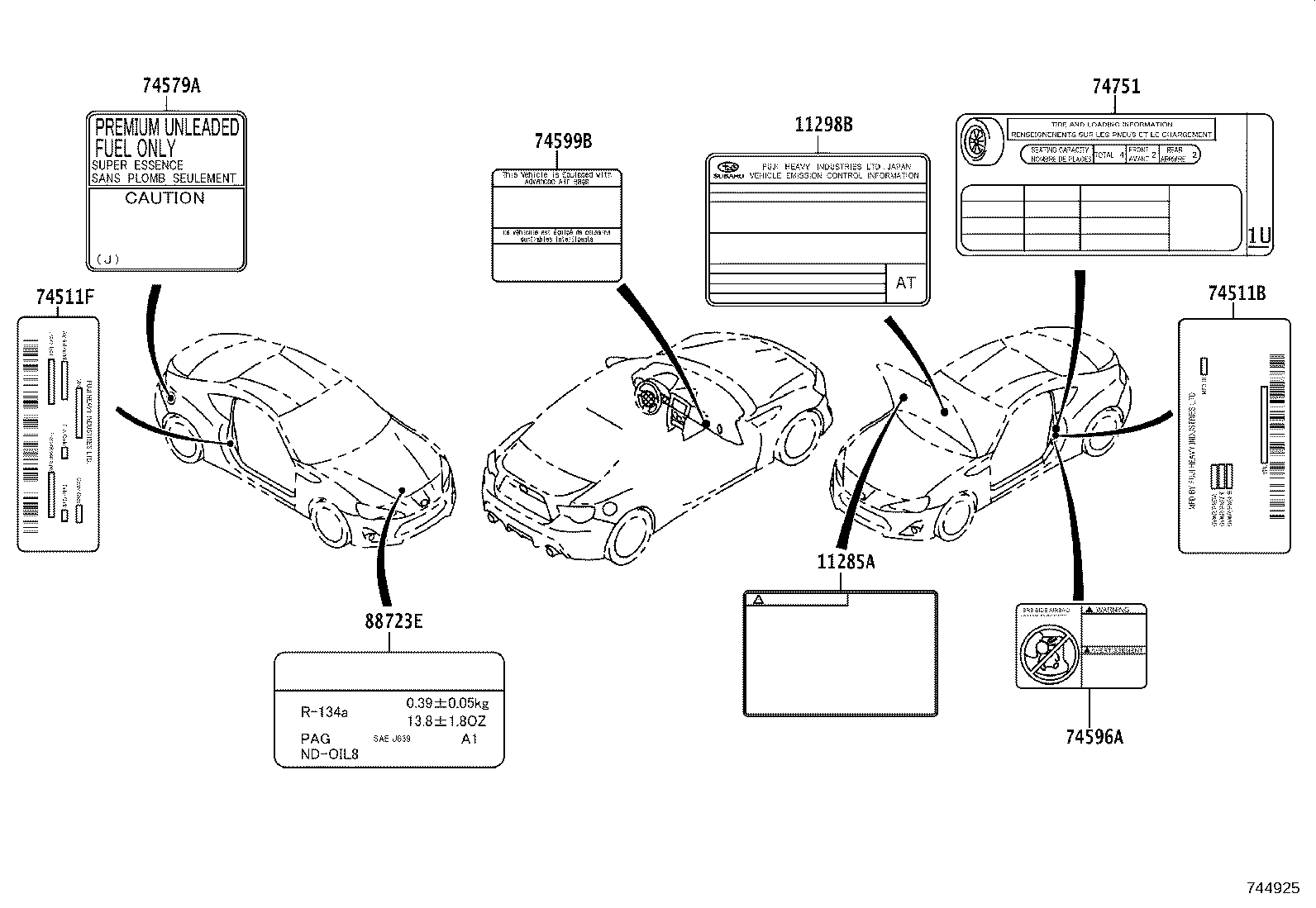

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 74511B | Plate, Name |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74532A | Plate, Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
