Toyota 86

2016-07 → present · chassis ZN6 · catalogue 264420 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

14 part groups · 17 illustrations

Illustrations

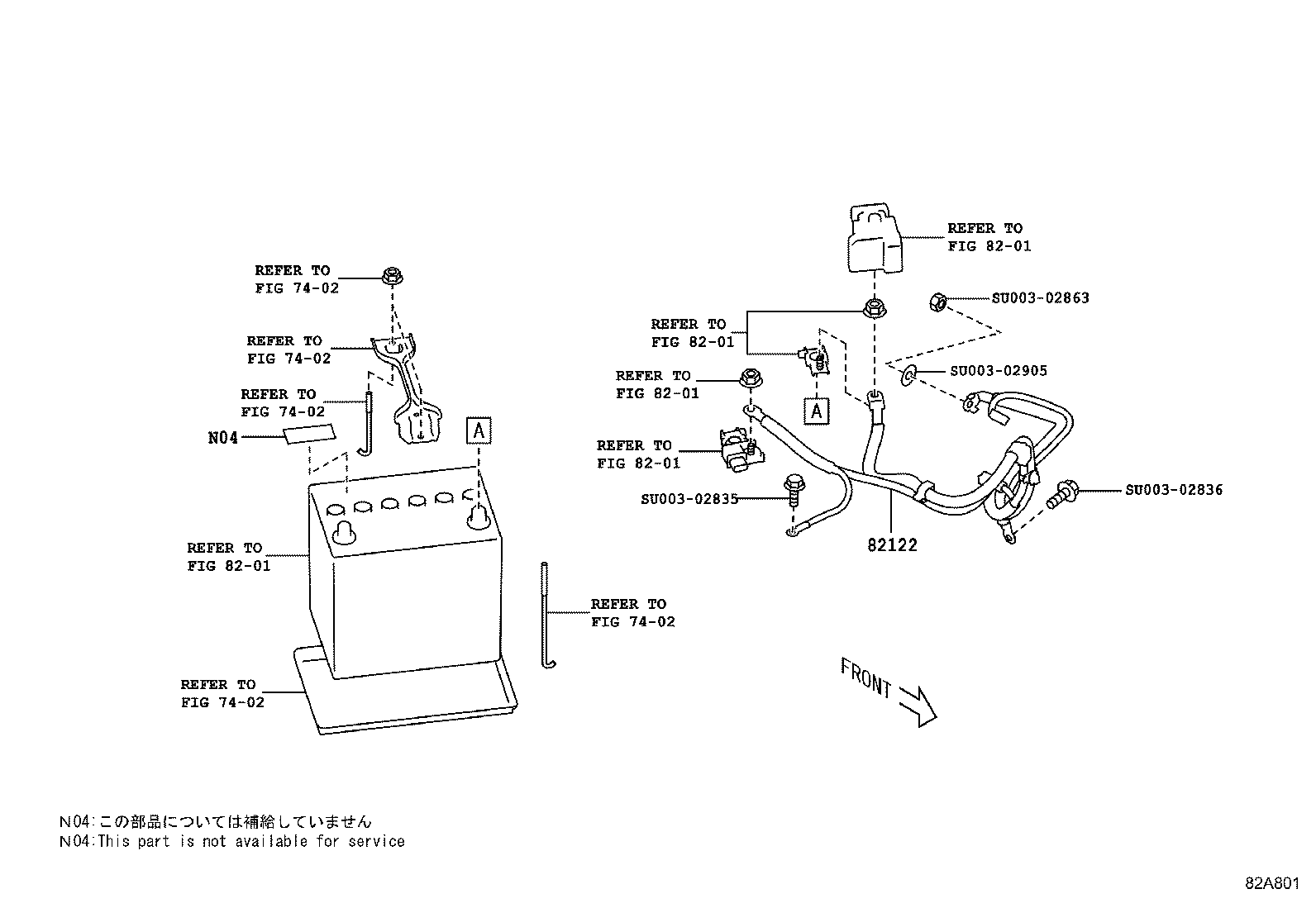

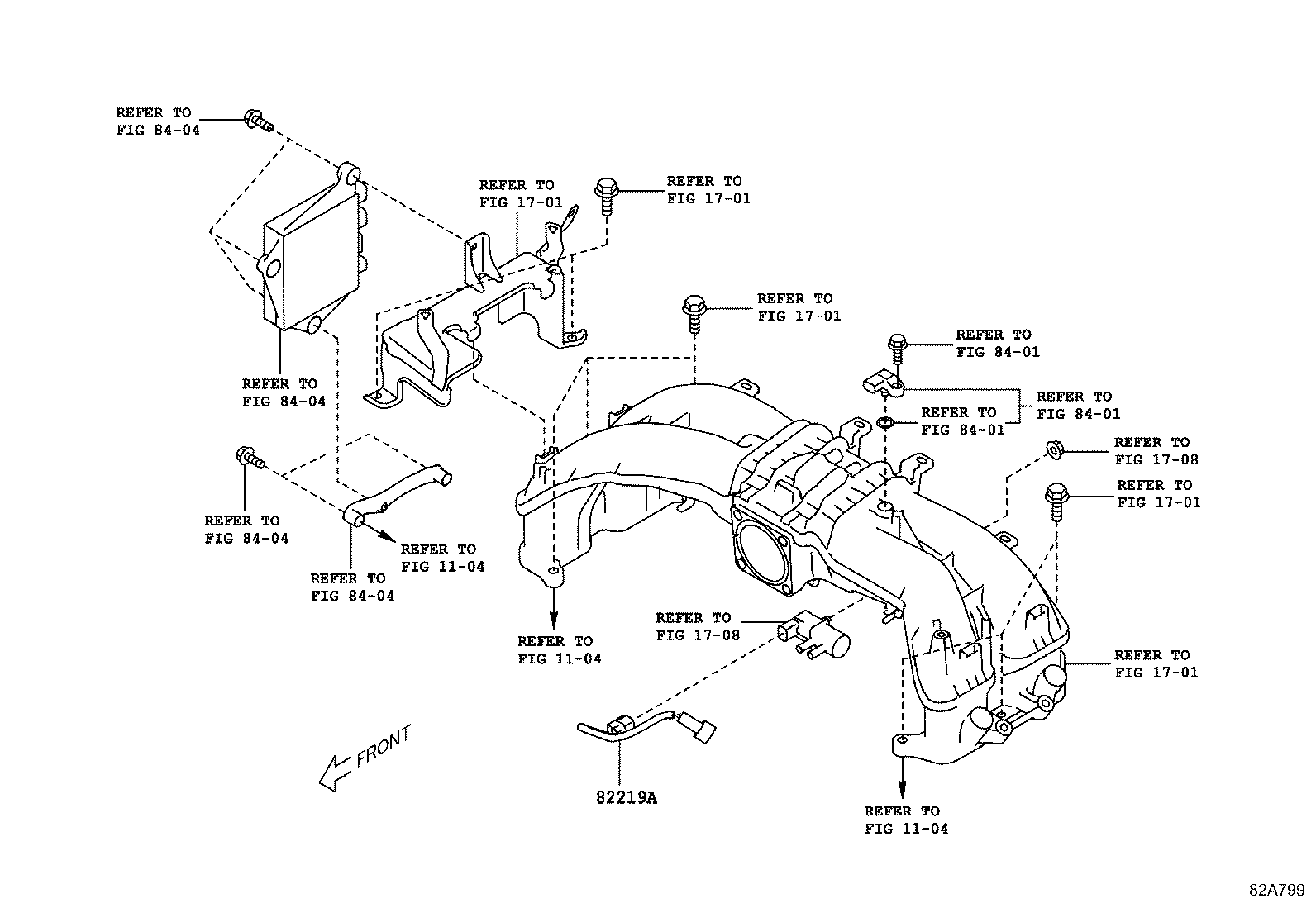

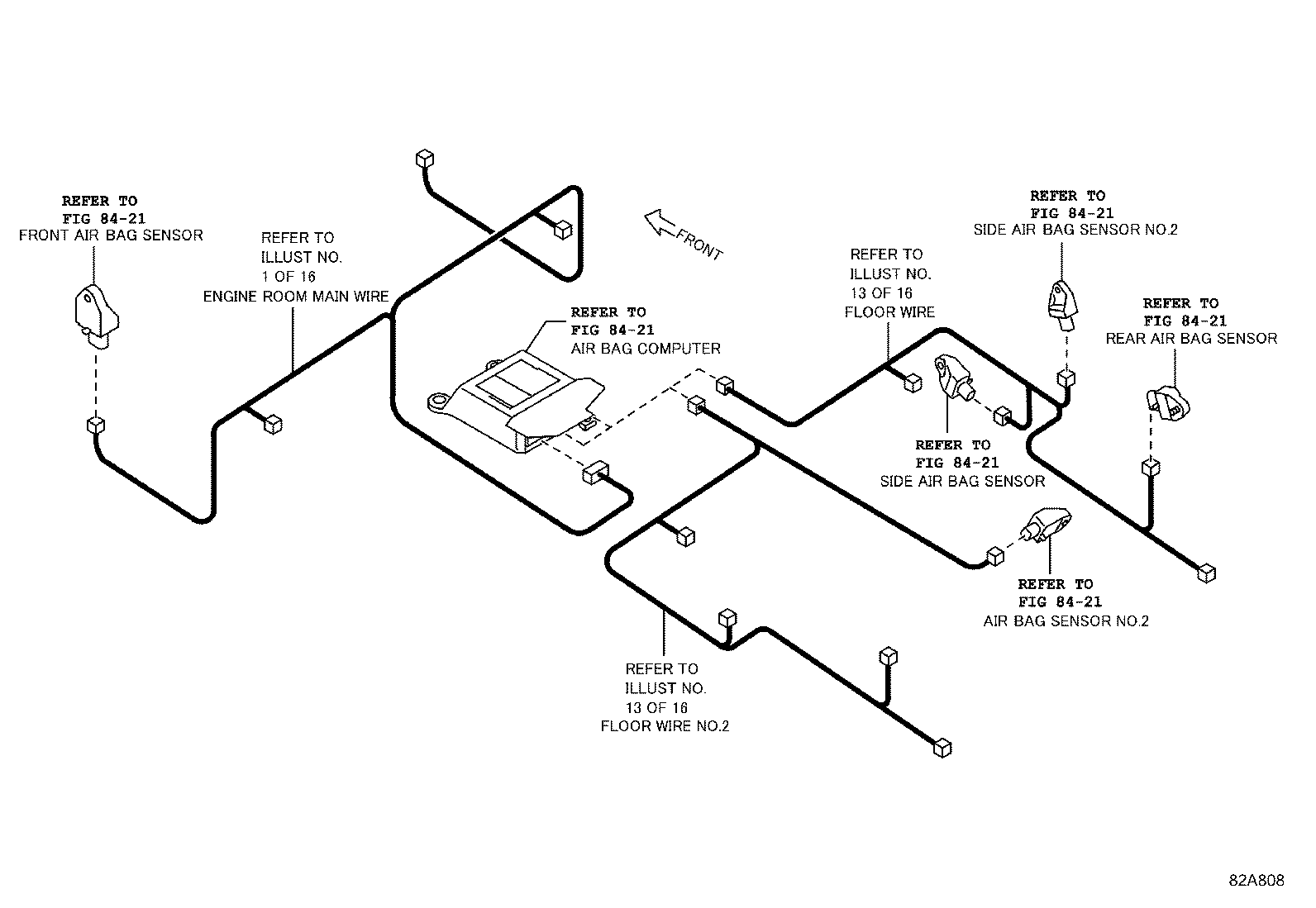

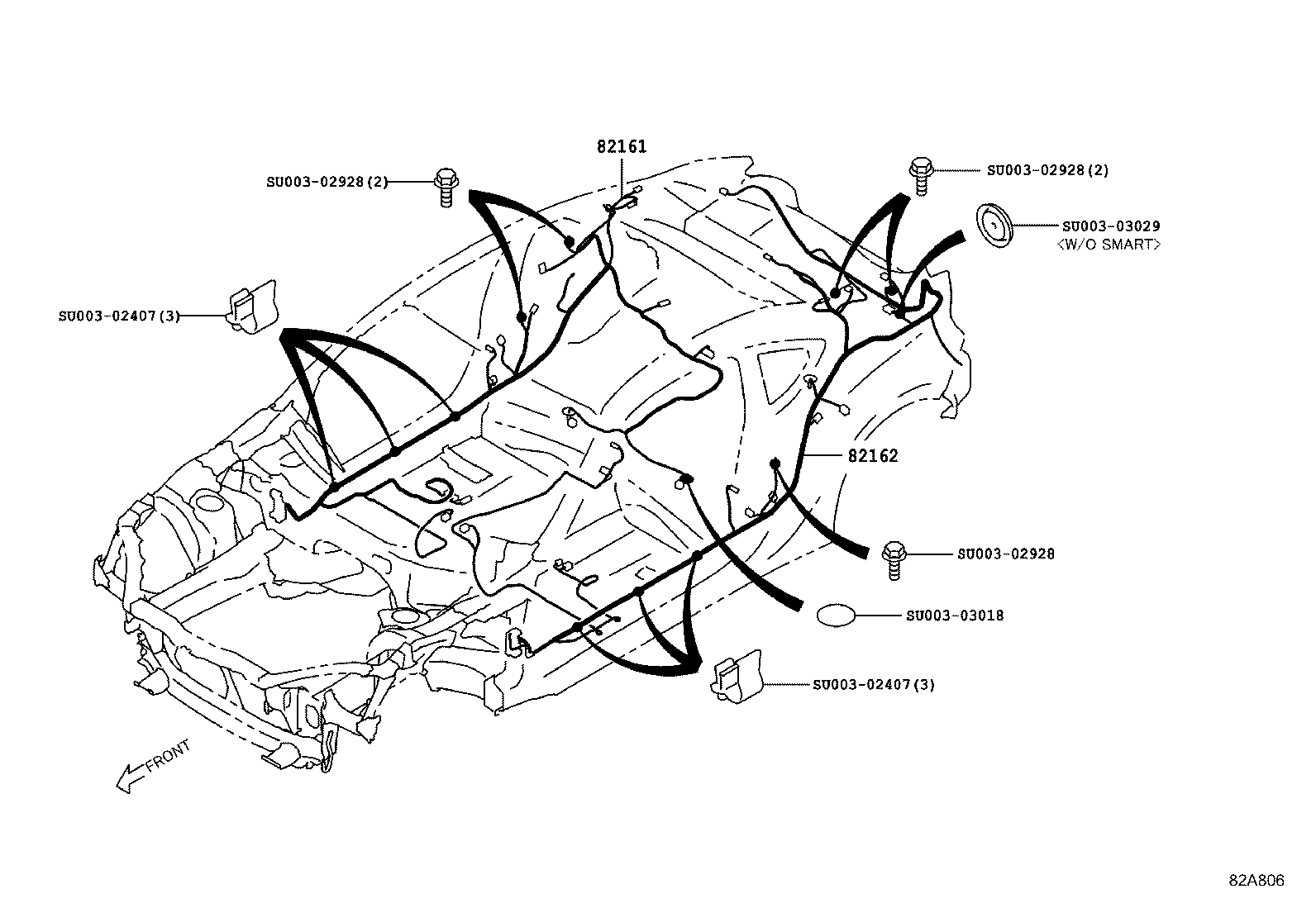

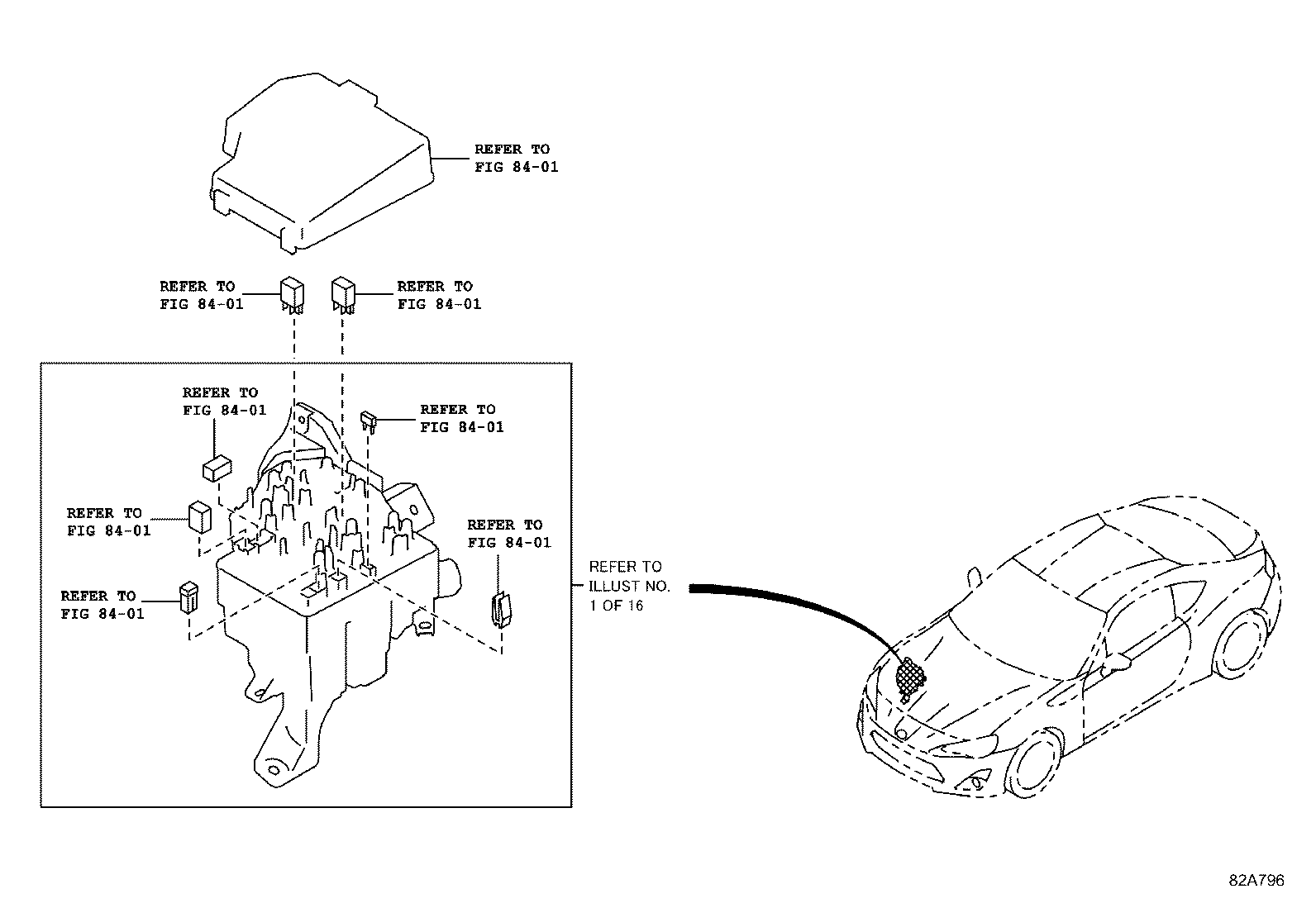

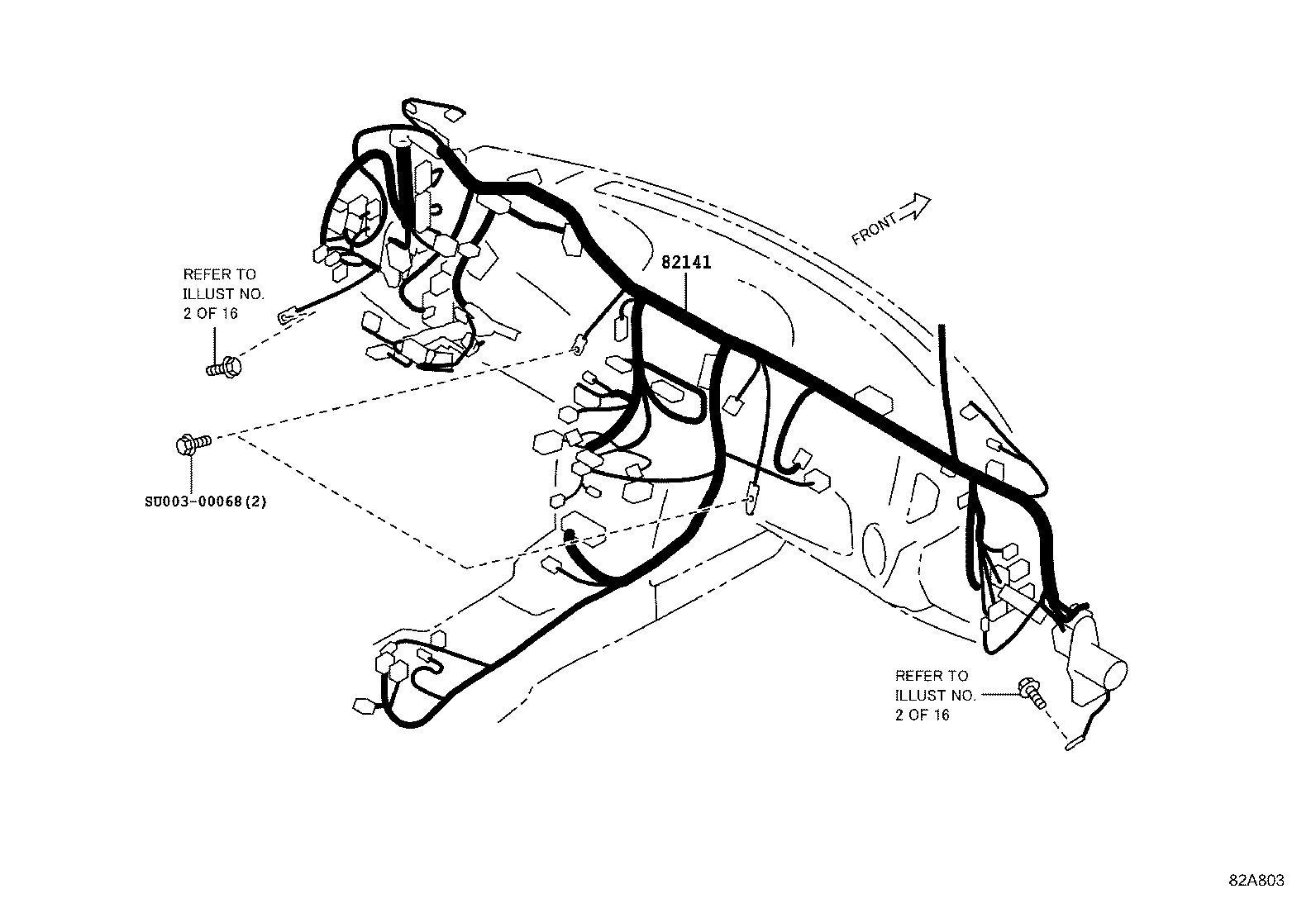

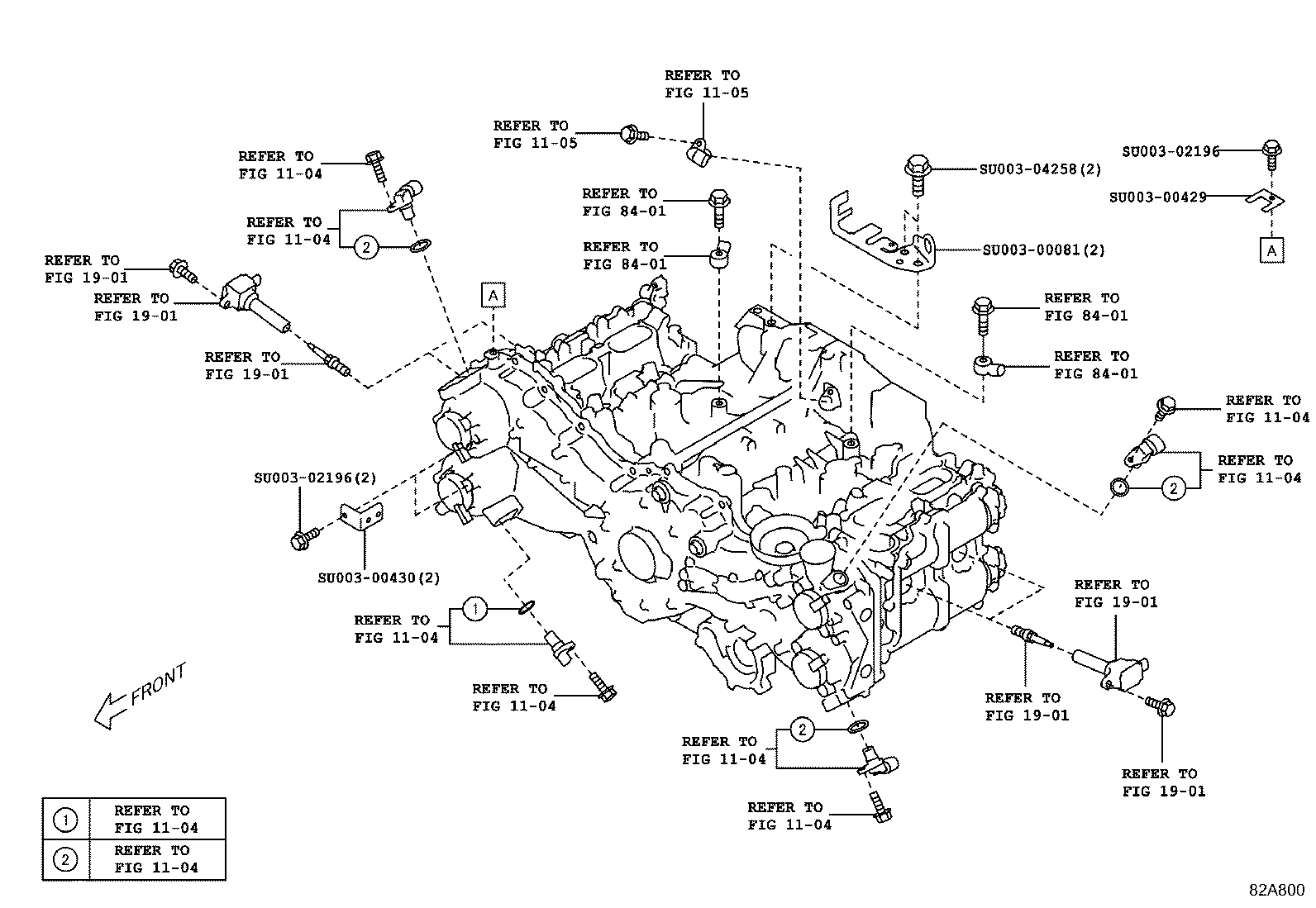

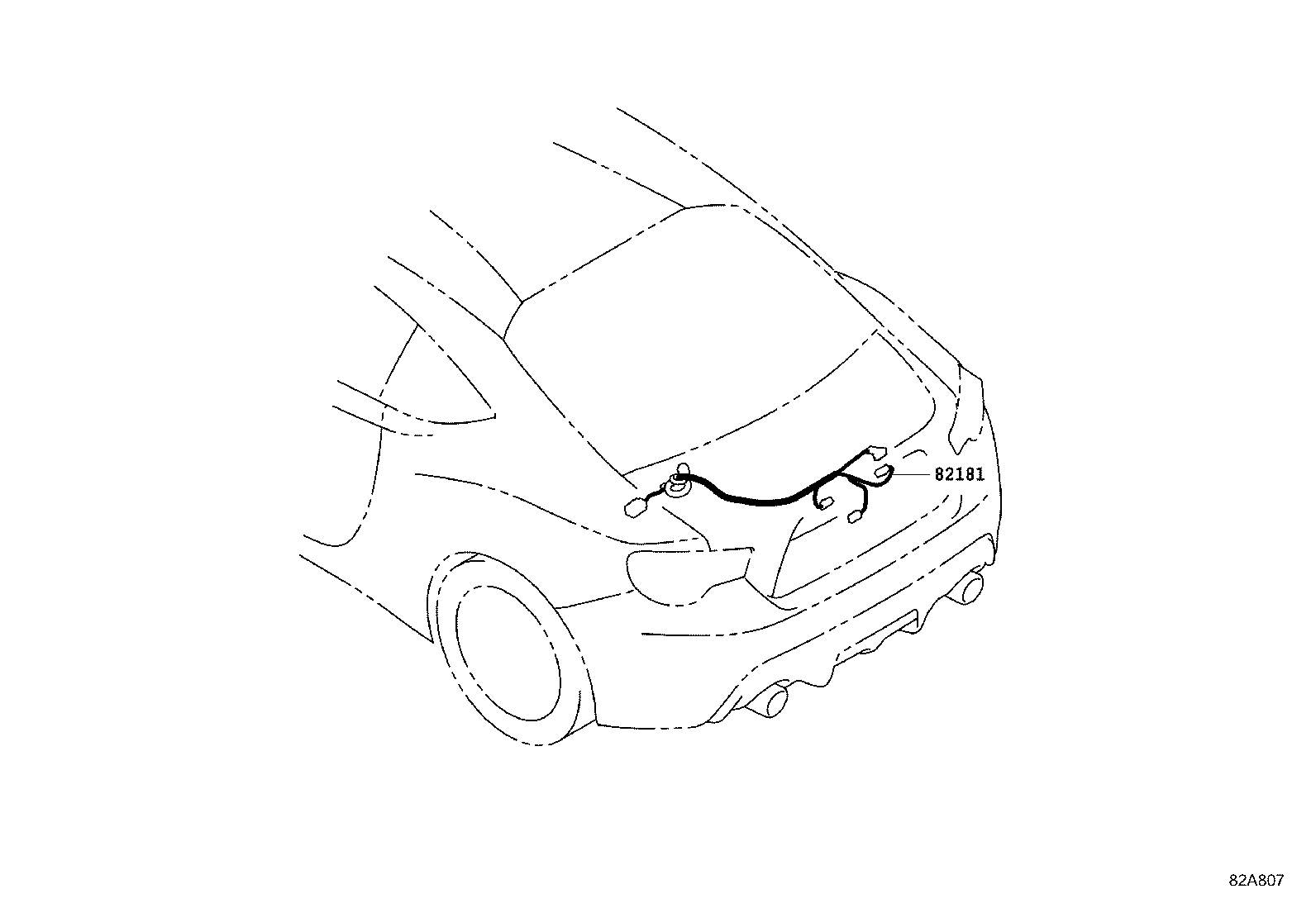

Figure 82A794 82A794 2016-07 → — Figure 82A795 82A795 2016-07 → — Figure 82A796 82A796 2016-07 → — Figure 82A797 82A797 2016-07 → — Figure 82A798A 82A798A 2016-07 → — Figure 82A836 82A836 2016-07 → — Figure 82A799 82A799 2016-07 → — Figure 82A800 82A800 2016-07 → — Figure 82A801 82A801 2016-07 → — Figure 82A802 82A802 2016-07 → — Figure 82A803 82A803 2016-07 → — Figure 82A804 82A804 2016-07 → — Figure 82A805 82A805 2016-07 → — Figure 82A806 82A806 2016-07 → — Figure 82A807 82A807 2016-07 → — Figure 82A808 82A808 2016-07 → — Figure 82A809 82A809 2016-07 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125 Wire, Transmission
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82219A Wire, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
