Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

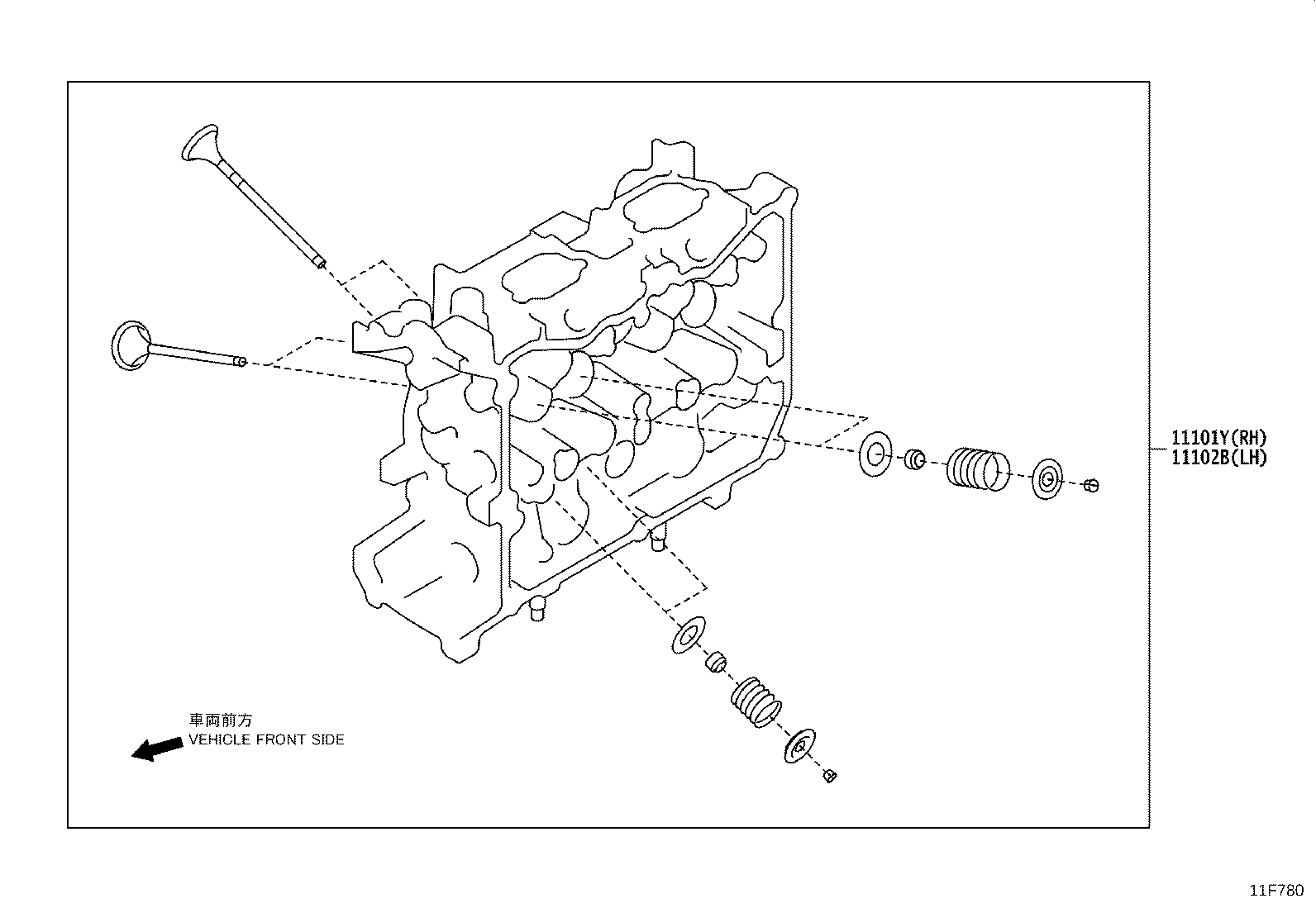

Exploded illustration 11F780 11101Y — HEAD & VALVE SET, CYLINDER, RH (4 parts) 11102B — HEAD & VALVE SET, CYLINDER, LH (4 parts)
11F780 · 2 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
11101Y — Head & Valve Set, Cylinder, RH
SU003-10638 Head & Valve Set, Cylinder, RH
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-10638 Head & Valve Set, Cylinder, RH
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-10638 Head & Valve Set, Cylinder, RH
2023-12 → —
FA24 ZN8 C —
SU003-10638 Head & Valve Set, Cylinder, RH
2024-09 → —
FA24 ZN8 D —
11102B — Head & Valve Set, Cylinder, LH
SU003-10639 Head & Valve Set, Cylinder, LH
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-10639 Head & Valve Set, Cylinder, LH
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-10639 Head & Valve Set, Cylinder, LH
2023-12 → —
FA24 ZN8 C —
SU003-10639 Head & Valve Set, Cylinder, LH
2024-09 → —
FA24 ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
