Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

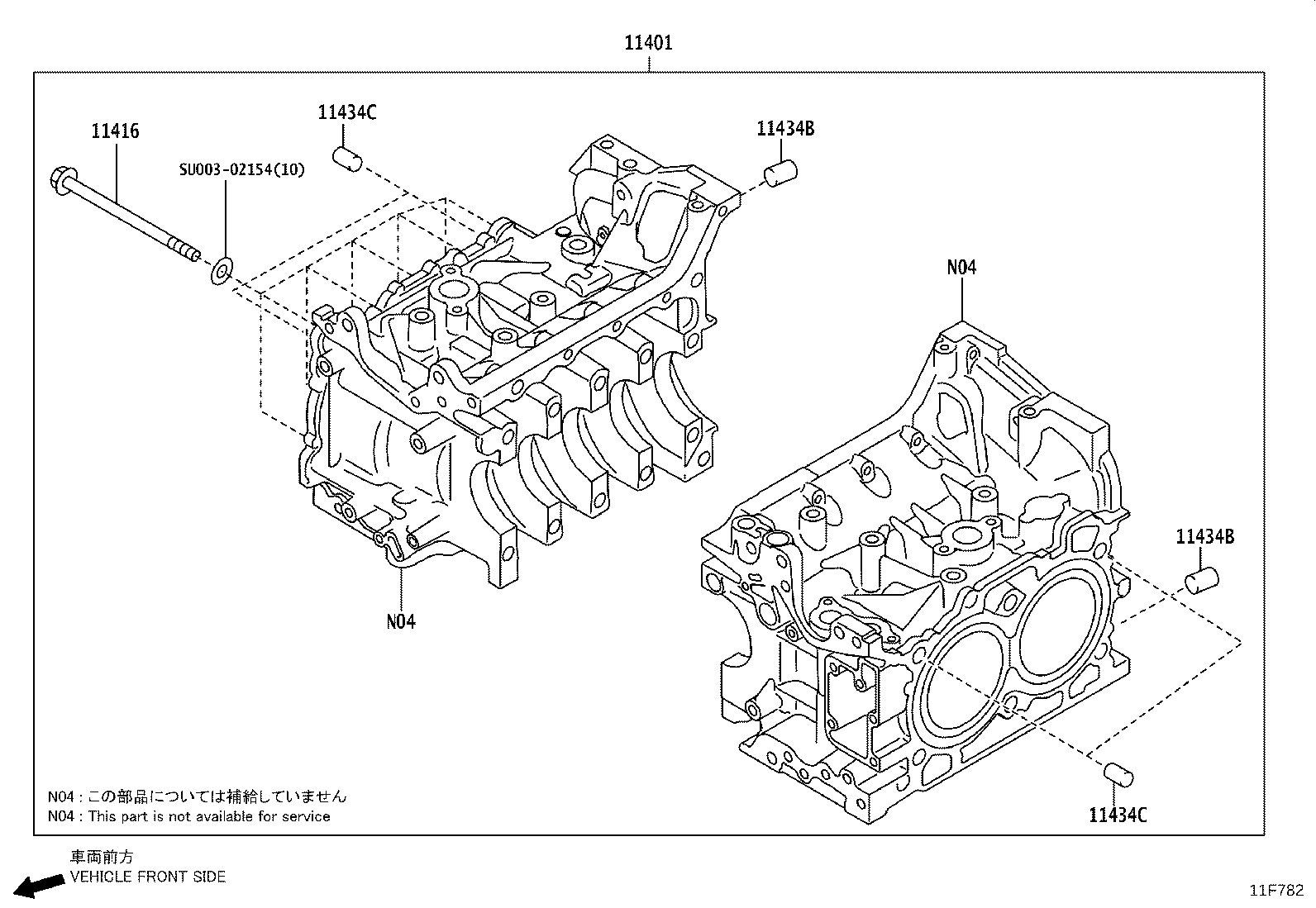

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11401 — Block Sub-assy, Cylinder | ||||
| SU003-10637 |
Block Sub-assy, Cylinder
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-10637 |
Block Sub-assy, Cylinder
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-10637 |
Block Sub-assy, Cylinder
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-10637 |
Block Sub-assy, Cylinder
2024-09 → —
|
FA24 ZN8 D | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| SU003-00098 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-00098 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-00098 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-00098 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2024-09 → —
|
FA24 ZN8 D | — | |
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| SU003-02166 |
Pin, Straight(FOR CLUTCH HOUSING SET)
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-02166 |
Pin, Straight(FOR CLUTCH HOUSING SET)
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-02166 |
Pin, Straight(FOR CLUTCH HOUSING SET)
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-02166 |
Pin, Straight(FOR CLUTCH HOUSING SET)
2024-09 → —
|
FA24 ZN8 D | — | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| SU003-02168 |
Pin, Straight (FOR CYLINDER HEAD SET)
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-02168 |
Pin, Straight (FOR CYLINDER HEAD SET)
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-02168 |
Pin, Straight (FOR CYLINDER HEAD SET)
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-02168 |
Pin, Straight (FOR CYLINDER HEAD SET)
2024-09 → —
|
FA24 ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
