Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

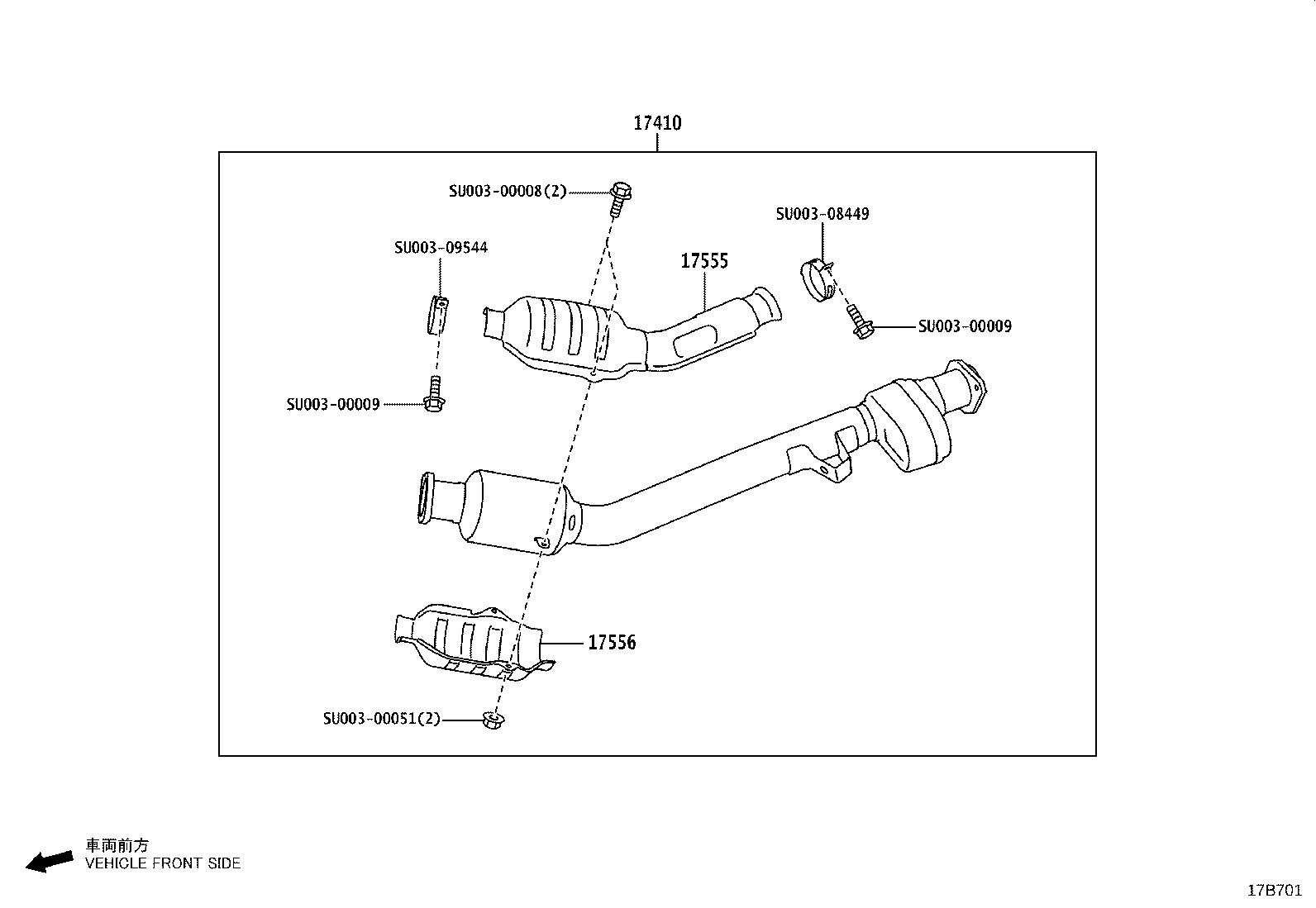

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| SU003-10577 |
Pipe Assy, Exhaust, Front
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-10577 |
Pipe Assy, Exhaust, Front
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-10577 |
Pipe Assy, Exhaust, Front
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-10577 |
Pipe Assy, Exhaust, Front
2024-09 → —
|
FA24 ZN8 D | — | |
| 17555 — Insulator, Exhaust Pipe Heat, NO.5 | ||||
| SU003-09551 |
Insulator, Exhaust Pipe Heat, NO.5
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-09551 |
Insulator, Exhaust Pipe Heat, NO.5
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-09551 |
Insulator, Exhaust Pipe Heat, NO.5
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-09551 |
Insulator, Exhaust Pipe Heat, NO.5
2024-09 → —
|
FA24 ZN8 D | — | |
| 17556 — Insulator, Exhaust Pipe Heat, NO.6 | ||||
| SU003-09552 |
Insulator, Exhaust Pipe Heat, NO.6
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-09552 |
Insulator, Exhaust Pipe Heat, NO.6
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-09552 |
Insulator, Exhaust Pipe Heat, NO.6
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-09552 |
Insulator, Exhaust Pipe Heat, NO.6
2024-09 → —
|
FA24 ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
