Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 17B703A 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 17401 — PIPE SUB-ASSY, EXHAUST, FRONT (4 parts) 17551 — INSULATOR, EXHAUST PIPE HEAT, NO.1 (4 parts) 17552 — INSULATOR, EXHAUST PIPE HEAT, NO.2 (4 parts) 17553 — INSULATOR, EXHAUST PIPE HEAT, NO.3 (4 parts) 17554 — INSULATOR, EXHAUST PIPE HEAT, FRONT (4 parts) SU00301117 — not listed in this catalogue SU00309076 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue SU00300051 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00302877 — not listed in this catalogue SU00300009 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (5 parts)

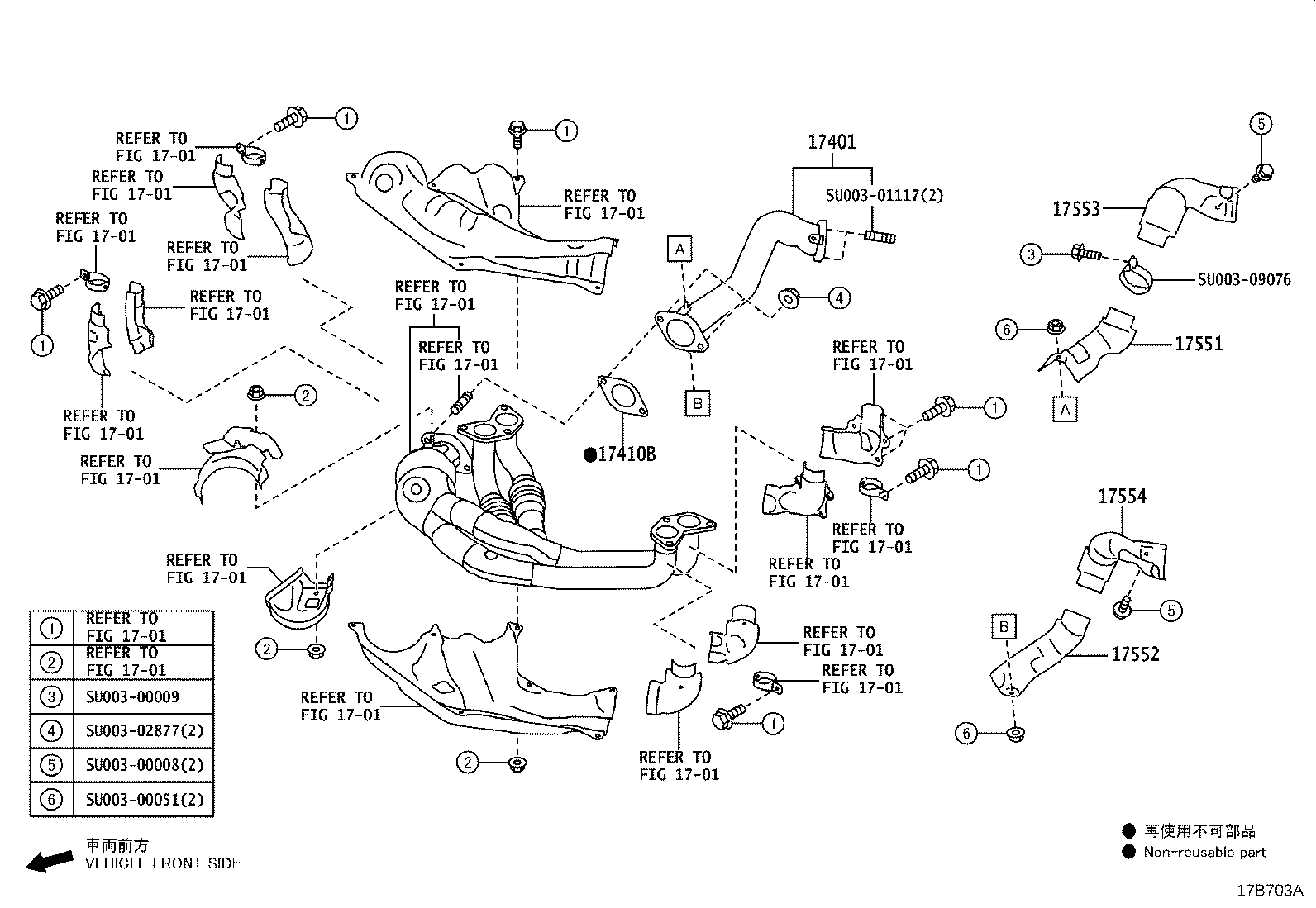

17B703A · 6 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
17401 — Pipe Sub-assy, Exhaust, Front
SU003-10580 Pipe Sub-assy, Exhaust, Front
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-10580 Pipe Sub-assy, Exhaust, Front
2023-12 → —
FA24 ZN8 C —
SU003-10580 Pipe Sub-assy, Exhaust, Front
2024-09 → —
FA24 ZN8 D —
SU003-10580 Pipe Sub-assy, Exhaust, Front
2021-10 → 2022-06 ended
FA24 ZN8 —
17410B — Gasket, Exhaust Pipe
SU003-01110 Gasket, Exhaust Pipe
2021-10 → 2021-12 ended
FA24 ZN8 —
SU003-10928 Gasket, Exhaust Pipe
2022-01 → 2022-06 ended
FA24 ZN8 —
SU003-10928 Gasket, Exhaust Pipe
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-10928 Gasket, Exhaust Pipe
2023-12 → —
FA24 ZN8 C —
SU003-10928 Gasket, Exhaust Pipe
2024-09 → —
FA24 ZN8 D —
17551 — Insulator, Exhaust Pipe Heat, NO.1
SU003-09553 Insulator, Exhaust Pipe Heat, NO.1
2024-09 → —
FA24 ZN8 D —
SU003-09553 Insulator, Exhaust Pipe Heat, NO.1
2023-12 → —
FA24 ZN8 C —
SU003-09553 Insulator, Exhaust Pipe Heat, NO.1
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-09553 Insulator, Exhaust Pipe Heat, NO.1
2021-10 → 2022-06 ended
FA24 ZN8 —
17552 — Insulator, Exhaust Pipe Heat, NO.2
SU003-09555 Insulator, Exhaust Pipe Heat, NO.2
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-09555 Insulator, Exhaust Pipe Heat, NO.2
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-09555 Insulator, Exhaust Pipe Heat, NO.2
2023-12 → —
FA24 ZN8 C —
SU003-09555 Insulator, Exhaust Pipe Heat, NO.2
2024-09 → —
FA24 ZN8 D —
17553 — Insulator, Exhaust Pipe Heat, NO.3
SU003-09554 Insulator, Exhaust Pipe Heat, NO.3
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-09554 Insulator, Exhaust Pipe Heat, NO.3
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-09554 Insulator, Exhaust Pipe Heat, NO.3
2023-12 → —
FA24 ZN8 C —
SU003-09554 Insulator, Exhaust Pipe Heat, NO.3
2024-09 → —
FA24 ZN8 D —
17554 — Insulator, Exhaust Pipe Heat, Front
SU003-09556 Insulator, Exhaust Pipe Heat, Front
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-09556 Insulator, Exhaust Pipe Heat, Front
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-09556 Insulator, Exhaust Pipe Heat, Front
2023-12 → —
FA24 ZN8 C —
SU003-09556 Insulator, Exhaust Pipe Heat, Front
2024-09 → —
FA24 ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
