Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

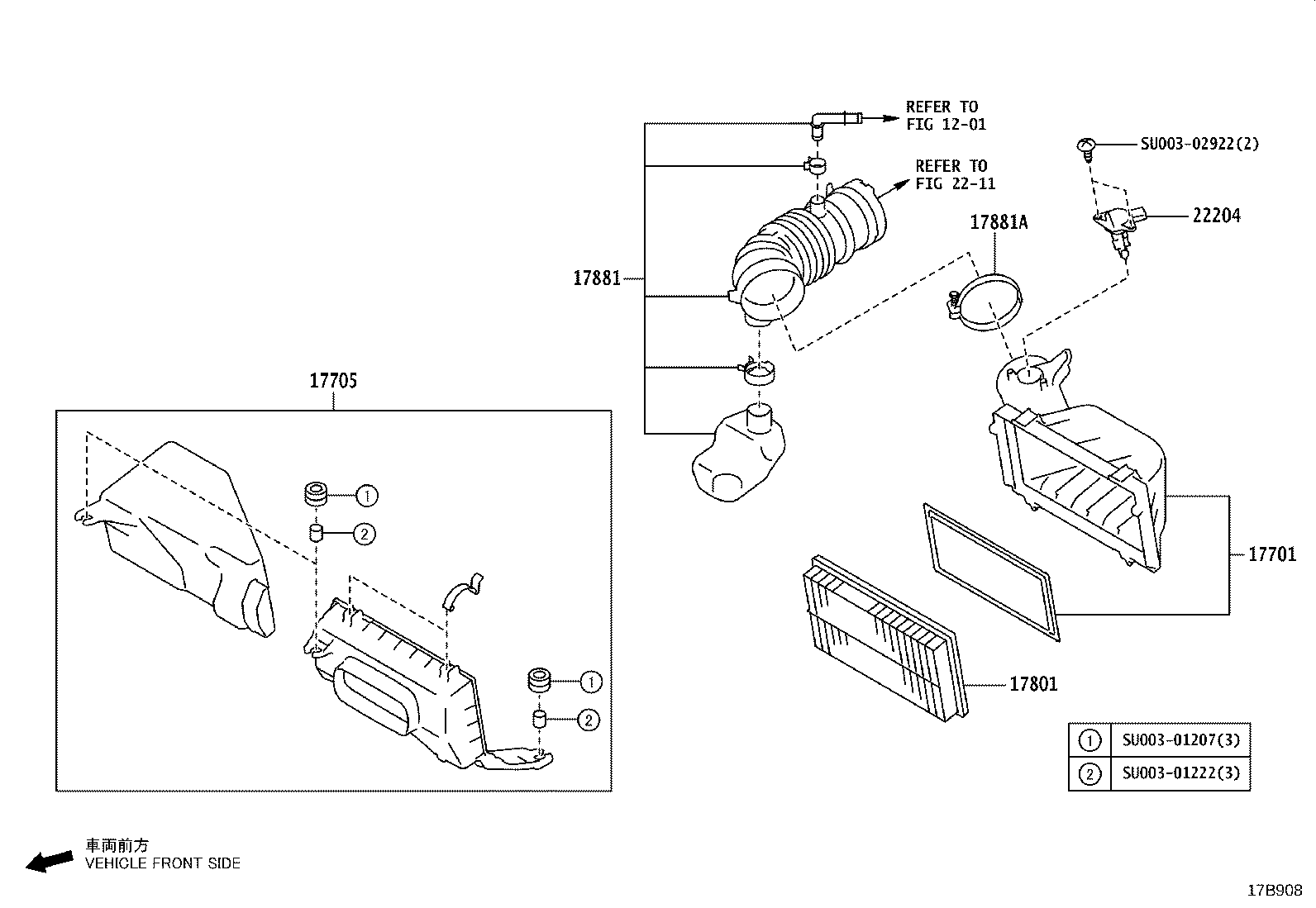

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17701 — Case Sub-assy, Air Cleaner | ||||
| SU003-10480 |
Case Sub-assy, Air Cleaner
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-10480 |
Case Sub-assy, Air Cleaner
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-10480 |
Case Sub-assy, Air Cleaner
2024-09 → —
|
FA24 ZN8 D | — | |
| SU003-10480 |
Case Sub-assy, Air Cleaner
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| SU003-10481 |
Cap Sub-assy, Air Cleaner
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-10481 |
Cap Sub-assy, Air Cleaner
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-10481 |
Cap Sub-assy, Air Cleaner
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-10481 |
Cap Sub-assy, Air Cleaner
2024-09 → —
|
FA24 ZN8 D | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| SU003-09025 |
Element Sub-assy, Air Cleaner Filter
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-09025 |
Element Sub-assy, Air Cleaner Filter
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-09025 |
Element Sub-assy, Air Cleaner Filter
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-09025 |
Element Sub-assy, Air Cleaner Filter
2024-09 → —
|
FA24 ZN8 D | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| SU003-10479 |
Hose, Air Cleaner, NO.1
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-10479 |
Hose, Air Cleaner, NO.1
2024-09 → —
|
FA24 ZN8 D | — | |
| SU003-10479 |
Hose, Air Cleaner, NO.1
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-10479 |
Hose, Air Cleaner, NO.1
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| SU003-09559 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-09559 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-09559 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-09559 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2024-09 → —
|
FA24 ZN8 D | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| SU003-08427 |
Meter Sub-assy, Intake Air Flow
2021-10 → 2022-06
ended
|
FA24 ZN8 | — | |
| SU003-08427 |
Meter Sub-assy, Intake Air Flow
2022-06 → 2023-12
ended
|
FA24 ZN8 B | — | |
| SU003-08427 |
Meter Sub-assy, Intake Air Flow
2023-12 → —
|
FA24 ZN8 C | — | |
| SU003-08427 |
Meter Sub-assy, Intake Air Flow
2024-09 → —
|
FA24 ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
