Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10

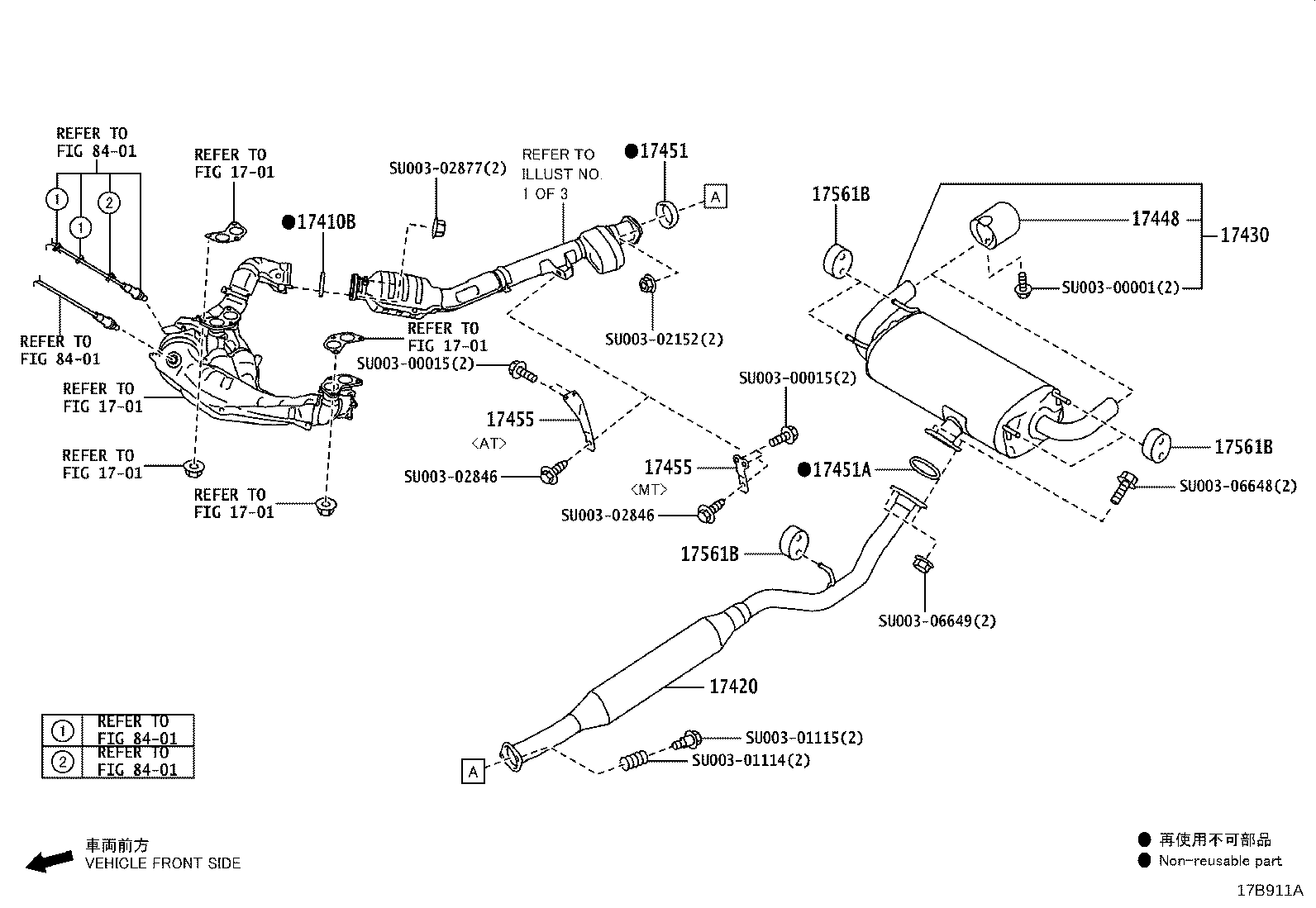

Exploded illustration 17B911A 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1701 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (5 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (4 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (5 parts) 17448 — BAFFLE, TAILPIPE (4 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (4 parts) 17455 — BRACKET, EXHAUST PIPE (8 parts) 17455 — BRACKET, EXHAUST PIPE (8 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (4 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (4 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (4 parts) SU00300001 — not listed in this catalogue SU00300015 — not listed in this catalogue SU00300015 — not listed in this catalogue SU00301114 — not listed in this catalogue SU00301115 — not listed in this catalogue SU00302152 — not listed in this catalogue SU00302846 — not listed in this catalogue SU00302846 — not listed in this catalogue SU00302877 — not listed in this catalogue SU00306648 — not listed in this catalogue SU00306649 — not listed in this catalogue
17B911A · 11 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17410B — Gasket, Exhaust Pipe
SU003-01110 Gasket, Exhaust Pipe
2021-10 → 2021-12 ended
FA24 ZN8 —
SU003-10928 Gasket, Exhaust Pipe
2022-01 → 2022-06 ended
FA24 ZN8 —
SU003-10928 Gasket, Exhaust Pipe
2024-09 → —
FA24 ZN8 D —
SU003-10928 Gasket, Exhaust Pipe
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-10928 Gasket, Exhaust Pipe
2023-12 → —
FA24 ZN8 C —
17420 — Pipe Assy, Exhaust, Center
SU003-09540 Pipe Assy, Exhaust, Center
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-09540 Pipe Assy, Exhaust, Center
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-09540 Pipe Assy, Exhaust, Center
2023-12 → —
FA24 ZN8 C —
SU003-11841 Pipe Assy, Exhaust, Center
2024-09 → —
FA24 ZN8 D —
17430 — Pipe Assy, Exhaust, Tail
SU003-09543 Pipe Assy, Exhaust, Tail
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-09543 Pipe Assy, Exhaust, Tail
2022-06 → 2022-11 ended
FA24 ZN8 B —
SU003-11046 Pipe Assy, Exhaust, Tail
2022-11 → 2023-12 ended
FA24 ZN8 B —
SU003-11046 Pipe Assy, Exhaust, Tail
2024-09 → —
FA24 ZN8 D —
SU003-11046 Pipe Assy, Exhaust, Tail
2023-12 → —
FA24 ZN8 C —
17448 — Baffle, Tailpipe
SU003-05273 Baffle, Tailpipe
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-05273 Baffle, Tailpipe
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-05273 Baffle, Tailpipe
2023-12 → —
FA24 ZN8 C —
SU003-05273 Baffle, Tailpipe
2024-09 → —
FA24 ZN8 D —
17451 — Gasket, Exhaust Pipe
SU003-01112 Gasket, Exhaust Pipe
2024-09 → —
FA24 ZN8 D —
SU003-01112 Gasket, Exhaust Pipe
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-01112 Gasket, Exhaust Pipe
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-01112 Gasket, Exhaust Pipe
2023-12 → —
FA24 ZN8 C —
17451A — Gasket, Exhaust Pipe, NO.2
SU003-06425 Gasket, Exhaust Pipe, NO.2
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-06425 Gasket, Exhaust Pipe, NO.2
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-06425 Gasket, Exhaust Pipe, NO.2
2023-12 → —
FA24 ZN8 C —
SU003-06425 Gasket, Exhaust Pipe, NO.2
2024-09 → —
FA24 ZN8 D —
17455 — Bracket, Exhaust Pipe
SU003-01128 Bracket, Exhaust Pipe
2021-10 → 2022-06 ended
FA24 ZN8 6FC —
SU003-01128 Bracket, Exhaust Pipe
2022-06 → 2023-12 ended
FA24 ZN8 6FC B —
SU003-01128 Bracket, Exhaust Pipe
2023-12 → —
FA24 ZN8 6FC C —
SU003-01128 Bracket, Exhaust Pipe
2024-09 → —
FA24 ZN8 6FC D —
SU003-01129 Bracket, Exhaust Pipe
2022-06 → 2023-12 ended
FA24 ZN8 6F B —
SU003-01129 Bracket, Exhaust Pipe
2024-09 → —
FA24 ZN8 6F D —
SU003-01129 Bracket, Exhaust Pipe
2023-12 → —
FA24 ZN8 6F C —
SU003-01129 Bracket, Exhaust Pipe
2021-10 → 2022-06 ended
FA24 ZN8 6F —
17561B — Support, Exhaust Pipe, NO.1
SU003-01116 Support, Exhaust Pipe, NO.1
2021-10 → 2022-06 ended
FA24 ZN8 —
SU003-01116 Support, Exhaust Pipe, NO.1
2022-06 → 2023-12 ended
FA24 ZN8 B —
SU003-01116 Support, Exhaust Pipe, NO.1
2023-12 → —
FA24 ZN8 C —
SU003-01116 Support, Exhaust Pipe, NO.1
2024-09 → —
FA24 ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
