Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

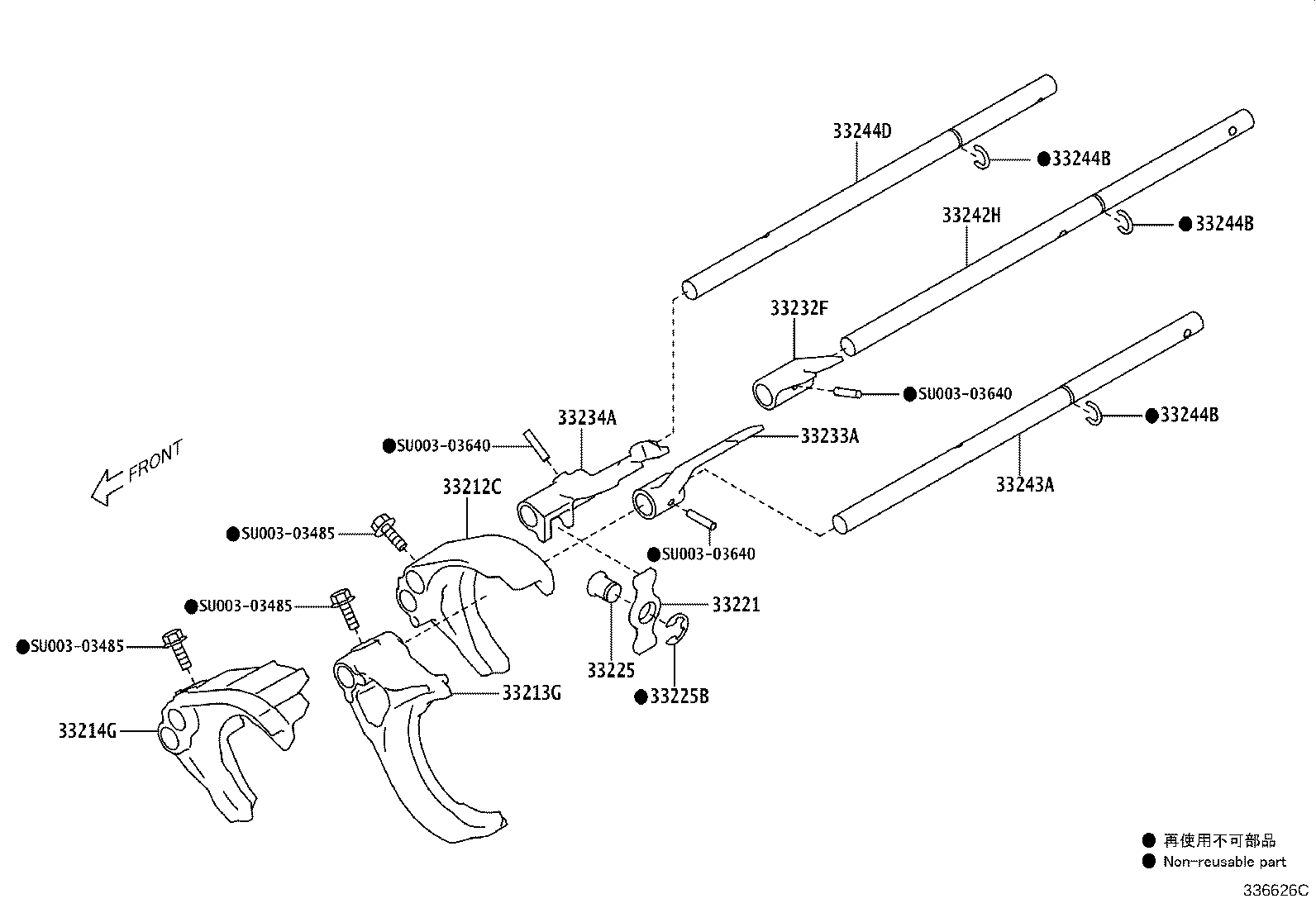

Exploded illustration 336626C 33214G — FORK, GEAR SHIFT, NO.3 (4 parts) 33212C — FORK, GEAR SHIFT, NO.1 (4 parts) 33234A — HEAD, GEAR SHIFT, NO.3 (4 parts) 33225 — SHOE, SHIFT ARM (4 parts) 33225B — RING, E(FOR SHIFT ARM SHOE) (4 parts) 33213G — FORK, GEAR SHIFT, NO.2 (4 parts) 33221 — ARM, REVERSE SHIFT (4 parts) 33233A — HEAD, GEAR SHIFT, NO.2 (4 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (4 parts) 33242H — SHAFT, GEAR SHIFT FORK, NO.1 (4 parts) 33232F — HEAD, GEAR SHIFT, NO.1 (4 parts) 33244D — SHAFT, GEAR SHIFT FORK, NO.3 (4 parts) 33244B — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) 33244B — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) 33244B — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) SU00303485 — not listed in this catalogue SU00303485 — not listed in this catalogue SU00303485 — not listed in this catalogue SU00303640 — not listed in this catalogue SU00303640 — not listed in this catalogue SU00303640 — not listed in this catalogue
336626C · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
33212C — Fork, Gear Shift, NO.1
SU003-03863 Fork, Gear Shift, NO.1
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03863 Fork, Gear Shift, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03863 Fork, Gear Shift, NO.1
2024-09 → —
ZN8 6F D —
SU003-03863 Fork, Gear Shift, NO.1
2023-12 → —
ZN8 6F C —
33213G — Fork, Gear Shift, NO.2
SU003-10745 Fork, Gear Shift, NO.2
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10745 Fork, Gear Shift, NO.2
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-10745 Fork, Gear Shift, NO.2
2023-12 → —
ZN8 6F C —
SU003-10745 Fork, Gear Shift, NO.2
2024-09 → —
ZN8 6F D —
33214G — Fork, Gear Shift, NO.3
SU003-03865 Fork, Gear Shift, NO.3
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03865 Fork, Gear Shift, NO.3
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03865 Fork, Gear Shift, NO.3
2023-12 → —
ZN8 6F C —
SU003-03865 Fork, Gear Shift, NO.3
2024-09 → —
ZN8 6F D —
33221 — Arm, Reverse Shift
SU003-03867 Arm, Reverse Shift
2023-12 → —
ZN8 6F C —
SU003-03867 Arm, Reverse Shift
2024-09 → —
ZN8 6F D —
SU003-03867 Arm, Reverse Shift
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03867 Arm, Reverse Shift
2021-10 → 2022-06 ended
ZN8 6F —
33225 — Shoe, Shift Arm
SU003-03868 Shoe, Shift Arm
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03868 Shoe, Shift Arm
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03868 Shoe, Shift Arm
2023-12 → —
ZN8 6F C —
SU003-03868 Shoe, Shift Arm
2024-09 → —
ZN8 6F D —
33225B — Ring, E(FOR SHIFT ARM SHOE)
SU003-03885 Ring, E(FOR SHIFT ARM SHOE)
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03885 Ring, E(FOR SHIFT ARM SHOE)
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03885 Ring, E(FOR SHIFT ARM SHOE)
2023-12 → —
ZN8 6F C —
SU003-03885 Ring, E(FOR SHIFT ARM SHOE)
2024-09 → —
ZN8 6F D —
33232F — Head, Gear Shift, NO.1
SU003-10763 Head, Gear Shift, NO.1
2024-09 → —
ZN8 6F D —
SU003-10763 Head, Gear Shift, NO.1
2023-12 → —
ZN8 6F C —
SU003-10763 Head, Gear Shift, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10763 Head, Gear Shift, NO.1
2022-06 → 2023-12 ended
ZN8 6F B —
33233A — Head, Gear Shift, NO.2
SU003-10746 Head, Gear Shift, NO.2
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10746 Head, Gear Shift, NO.2
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-10746 Head, Gear Shift, NO.2
2023-12 → —
ZN8 6F C —
SU003-10746 Head, Gear Shift, NO.2
2024-09 → —
ZN8 6F D —
33234A — Head, Gear Shift, NO.3
SU003-03871 Head, Gear Shift, NO.3
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03871 Head, Gear Shift, NO.3
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03871 Head, Gear Shift, NO.3
2023-12 → —
ZN8 6F C —
SU003-03871 Head, Gear Shift, NO.3
2024-09 → —
ZN8 6F D —
33242H — Shaft, Gear Shift Fork, NO.1
SU003-03872 Shaft, Gear Shift Fork, NO.1
2024-09 → —
ZN8 6F D —
SU003-03872 Shaft, Gear Shift Fork, NO.1
2023-12 → —
ZN8 6F C —
SU003-03872 Shaft, Gear Shift Fork, NO.1
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03872 Shaft, Gear Shift Fork, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
33243A — Shaft, Gear Shift Fork, NO.2
SU003-03873 Shaft, Gear Shift Fork, NO.2
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03873 Shaft, Gear Shift Fork, NO.2
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03873 Shaft, Gear Shift Fork, NO.2
2023-12 → —
ZN8 6F C —
SU003-03873 Shaft, Gear Shift Fork, NO.2
2024-09 → —
ZN8 6F D —
33244B — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
SU003-03549 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03549 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03549 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2023-12 → —
ZN8 6F C —
SU003-03549 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2024-09 → —
ZN8 6F D —
33244D — Shaft, Gear Shift Fork, NO.3
SU003-03875 Shaft, Gear Shift Fork, NO.3
2021-10 → 2022-06 ended
ZN8 6F —
SU003-03875 Shaft, Gear Shift Fork, NO.3
2022-06 → 2023-12 ended
ZN8 6F B —
SU003-03875 Shaft, Gear Shift Fork, NO.3
2023-12 → —
ZN8 6F C —
SU003-03875 Shaft, Gear Shift Fork, NO.3
2024-09 → —
ZN8 6F D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
