Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

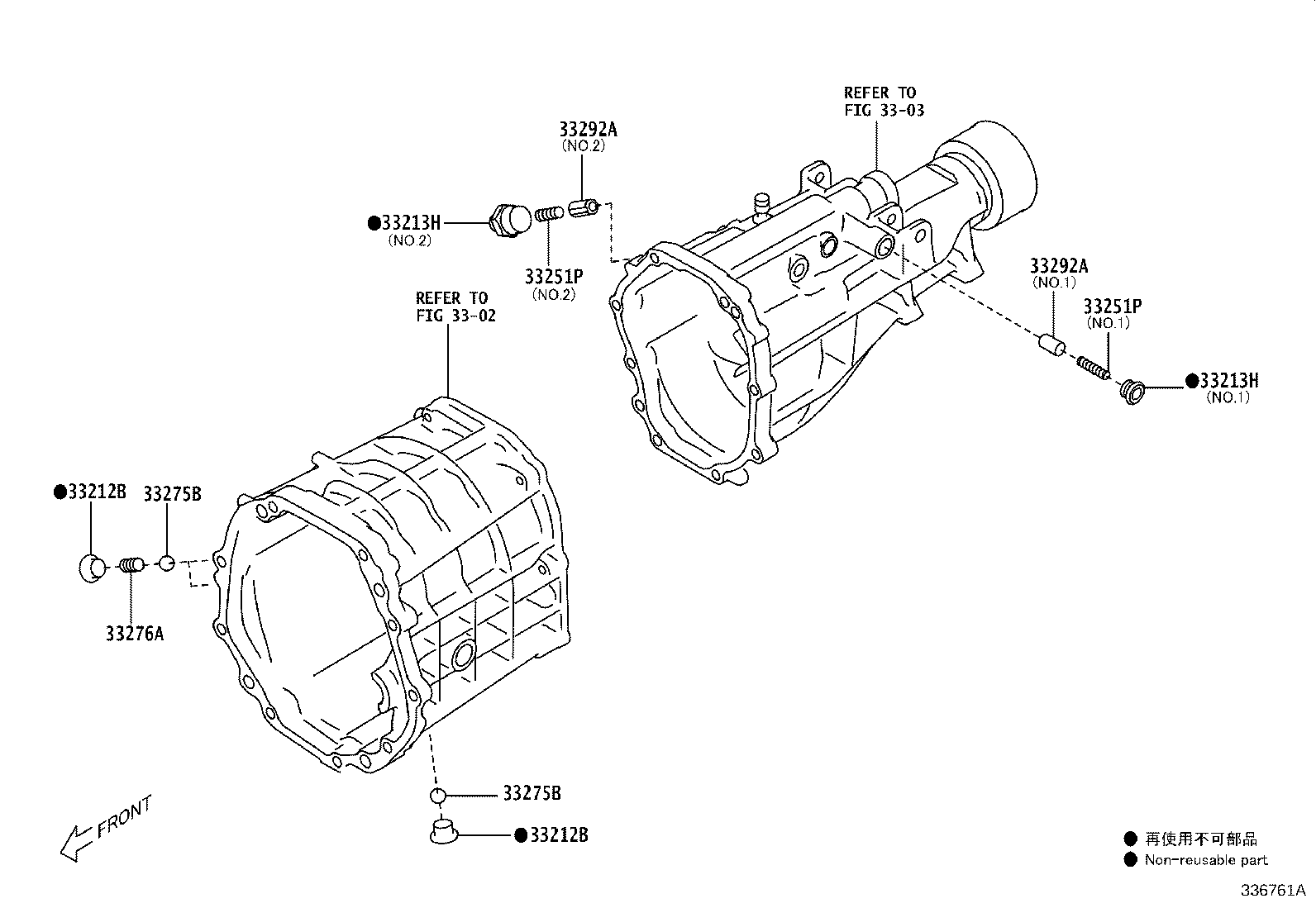

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33212B — Plug, W/Head Straight Screw, NO.1 | ||||
| SU003-03619 |
Plug, W/Head Straight Screw, NO.1
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03619 |
Plug, W/Head Straight Screw, NO.1
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03619 |
Plug, W/Head Straight Screw, NO.1
2024-09 → —
|
ZN8 6F D | — | |
| SU003-03619 |
Plug, W/Head Straight Screw, NO.1
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| 33213H — Plug, W/Head Straight Screw, NO.2 | ||||
| SU003-03620 note |
Plug, W/Head Straight Screw, NO.2
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03620 note |
Plug, W/Head Straight Screw, NO.2
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03620 note |
Plug, W/Head Straight Screw, NO.2
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03620 note |
Plug, W/Head Straight Screw, NO.2
2024-09 → —
|
ZN8 6F D | — | |
| SU003-03861 note |
Plug, W/Head Straight Screw, NO.2
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03861 note |
Plug, W/Head Straight Screw, NO.2
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03861 note |
Plug, W/Head Straight Screw, NO.2
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03861 note |
Plug, W/Head Straight Screw, NO.2
2024-09 → —
|
ZN8 6F D | — | |
| 33251P — Spring (FOR SHIFT & SELECT LEVER) | ||||
| SU003-03882 note |
Spring (FOR SHIFT & SELECT LEVER)
2024-09 → —
|
ZN8 6F D | — | |
| SU003-03882 note |
Spring (FOR SHIFT & SELECT LEVER)
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03882 note |
Spring (FOR SHIFT & SELECT LEVER)
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03882 note |
Spring (FOR SHIFT & SELECT LEVER)
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03883 note |
Spring (FOR SHIFT & SELECT LEVER)
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03883 note |
Spring (FOR SHIFT & SELECT LEVER)
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03883 note |
Spring (FOR SHIFT & SELECT LEVER)
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03883 note |
Spring (FOR SHIFT & SELECT LEVER)
2024-09 → —
|
ZN8 6F D | — | |
| 33275B — Ball, Shaft Detent | ||||
| SU003-03884 |
Ball, Shaft Detent
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03884 |
Ball, Shaft Detent
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03884 |
Ball, Shaft Detent
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03884 |
Ball, Shaft Detent
2024-09 → —
|
ZN8 6F D | — | |
| 33276A — Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) | ||||
| SU003-03880 |
Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03880 |
Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
2024-09 → —
|
ZN8 6F D | — | |
| SU003-03880 |
Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03880 |
Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| 33292A — Pin, Lock Ball | ||||
| SU003-03638 note |
Pin, Lock Ball
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03638 note |
Pin, Lock Ball
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03638 note |
Pin, Lock Ball
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03638 note |
Pin, Lock Ball
2024-09 → —
|
ZN8 6F D | — | |
| SU003-03639 note |
Pin, Lock Ball
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-03639 note |
Pin, Lock Ball
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-03639 note |
Pin, Lock Ball
2023-12 → —
|
ZN8 6F C | — | |
| SU003-03639 note |
Pin, Lock Ball
2024-09 → —
|
ZN8 6F D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
