Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

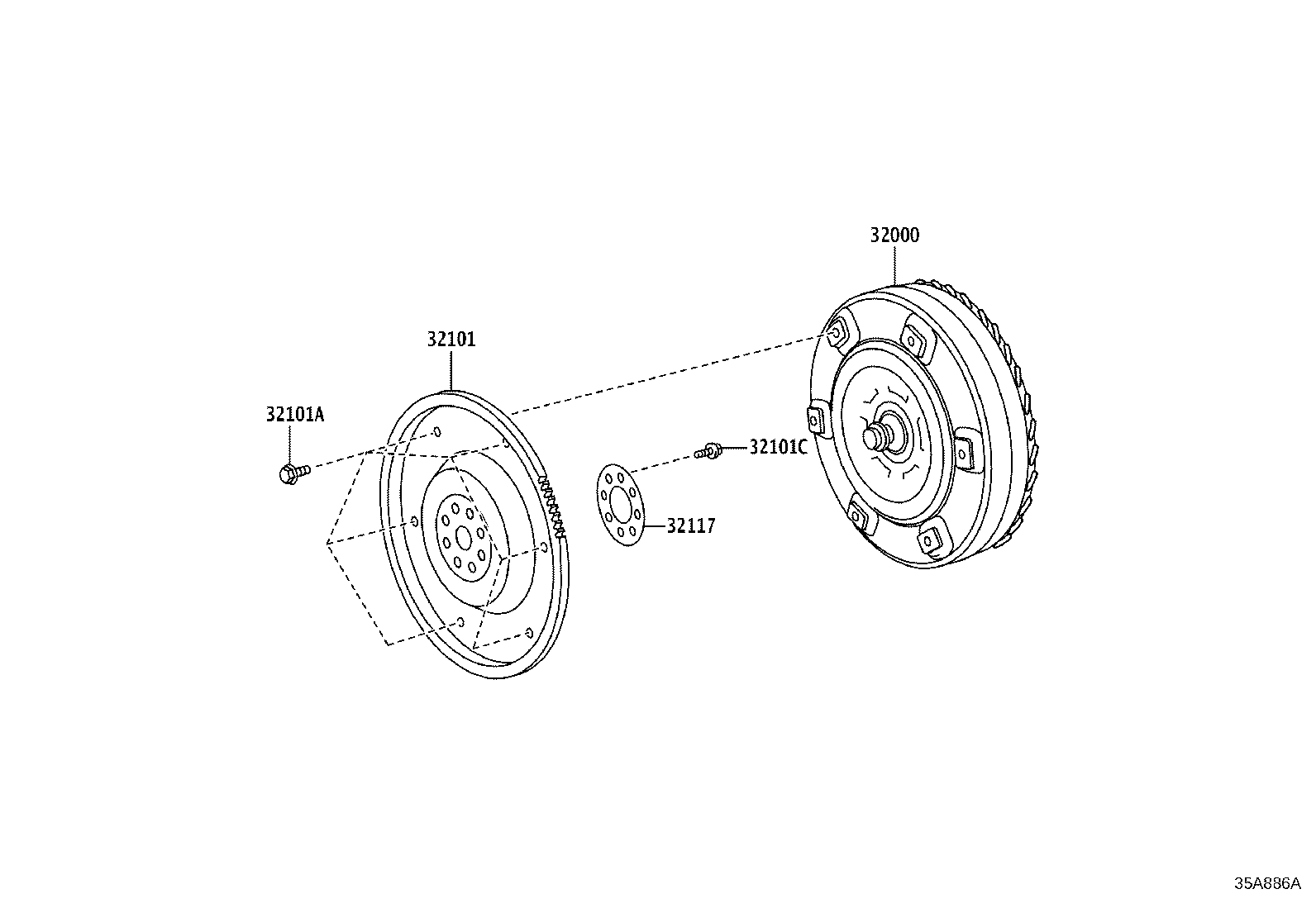

| 32000 — Converter Assy, Torque | ||||
| SU003-10666 |
Converter Assy, Torque
2022-06 → 2023-12
ended
|
ZN8 6FC B | — | |
| SU003-10666 |
Converter Assy, Torque
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-10666 |
Converter Assy, Torque
2024-09 → —
|
ZN8 6FC D | — | |
| SU003-10666 |
Converter Assy, Torque
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| 32101 — Gear Sub-assy, Drive Plate & Ring | ||||
| SU003-09003 |
Gear Sub-assy, Drive Plate & Ring
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| SU003-09003 |
Gear Sub-assy, Drive Plate & Ring
2022-06 → 2023-12
ended
|
ZN8 6FC B | — | |
| SU003-09003 |
Gear Sub-assy, Drive Plate & Ring
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-09003 |
Gear Sub-assy, Drive Plate & Ring
2024-09 → —
|
ZN8 6FC D | — | |
| 32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| SU003-02133 |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| SU003-02133 |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2024-09 → —
|
ZN8 6FC D | — | |
| SU003-02133 |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-02133 |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2022-06 → 2023-12
ended
|
ZN8 6FC B | — | |
| 32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| SU003-02143 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2021-10 → —
|
ZN8 6FC | — | |
| 32117 — Spacer, Drive Plate, Rear | ||||
| SU003-00176 |
Spacer, Drive Plate, Rear
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| SU003-00176 |
Spacer, Drive Plate, Rear
2022-06 → 2023-12
ended
|
ZN8 6FC B | — | |
| SU003-00176 |
Spacer, Drive Plate, Rear
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-00176 |
Spacer, Drive Plate, Rear
2024-09 → —
|
ZN8 6FC D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
