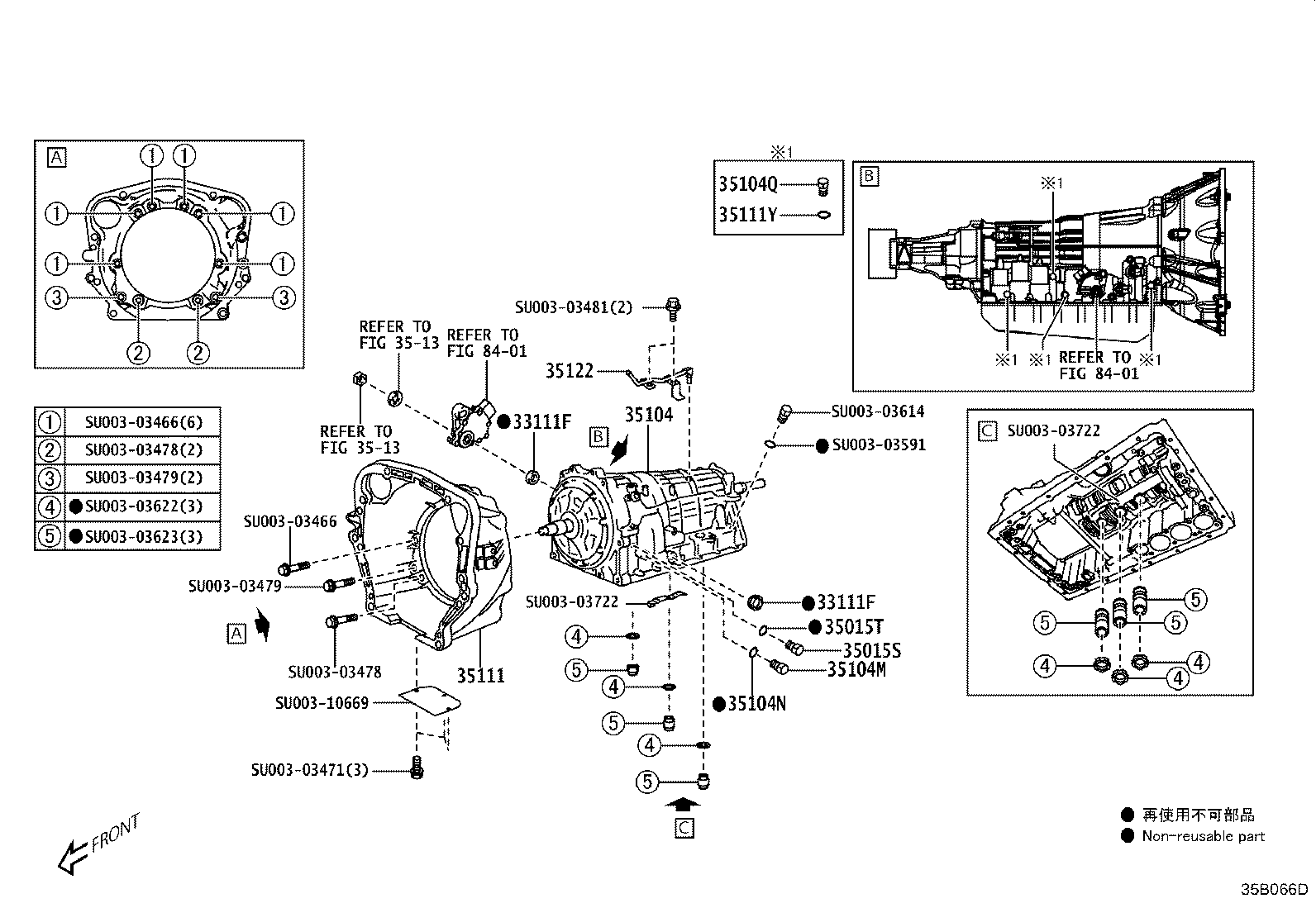

Exploded illustration 35B066D 35111 — HOUSING, AUTOMATIC TRANSMISSION (4 parts) 35104 — CASE SUB-ASSY, AUTOMATIC TRANSMISSION (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (4 parts) 33111F — SEAL, OIL(FOR TRANSMISSION CASE) (4 parts) 33111F — SEAL, OIL(FOR TRANSMISSION CASE) (4 parts) 35015T — RING, O(FOR TRANSMISSION CASE ADAPTER) (4 parts) 35104N — RING, O (FOR REFILL PLUG) (4 parts) 35104M — PLUG, REFILL(ATM) (4 parts) 35015S — PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) (4 parts) SU00303466 — not listed in this catalogue SU00303478 — not listed in this catalogue SU00303479 — not listed in this catalogue SU00303622 — not listed in this catalogue SU00303623 — not listed in this catalogue SU00303614 — not listed in this catalogue SU00303478 — not listed in this catalogue SU00303479 — not listed in this catalogue SU00303466 — not listed in this catalogue SU00303471 — not listed in this catalogue SU00310669 — not listed in this catalogue SU00303591 — not listed in this catalogue 8401 — not listed in this catalogue 3513 — not listed in this catalogue 3513 — not listed in this catalogue 8401 — not listed in this catalogue SU00303481 — not listed in this catalogue SU00303722 — not listed in this catalogue 35122 — TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) (4 parts) SU00303722 — not listed in this catalogue
35B066D · 11 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
33111F — Seal, Oil(FOR TRANSMISSION CASE)
SU003-03628 Seal, Oil(FOR TRANSMISSION CASE)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03628 Seal, Oil(FOR TRANSMISSION CASE)
2023-12 → —
ZN8 6FC C —
SU003-03628 Seal, Oil(FOR TRANSMISSION CASE)
2024-09 → —
ZN8 6FC D —
SU003-03628 Seal, Oil(FOR TRANSMISSION CASE)
2021-10 → 2022-06 ended
ZN8 6FC —
35015S — Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
SU003-03612 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03612 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03612 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2023-12 → —
ZN8 6FC C —
SU003-03612 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2024-09 → —
ZN8 6FC D —
35015T — Ring, O(FOR TRANSMISSION CASE ADAPTER)
SU003-03589 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2024-09 → —
ZN8 6FC D —
SU003-03589 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2023-12 → —
ZN8 6FC C —
SU003-03589 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03589 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2021-10 → 2022-06 ended
ZN8 6FC —
35104 — Case Sub-assy, Automatic Transmission
SU003-03666 Case Sub-assy, Automatic Transmission
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03666 Case Sub-assy, Automatic Transmission
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03666 Case Sub-assy, Automatic Transmission
2023-12 → —
ZN8 6FC C —
SU003-03666 Case Sub-assy, Automatic Transmission
2024-09 → —
ZN8 6FC D —
35104M — Plug, Refill(ATM)
SU003-03615 Plug, Refill(ATM)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03615 Plug, Refill(ATM)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03615 Plug, Refill(ATM)
2023-12 → —
ZN8 6FC C —
SU003-03615 Plug, Refill(ATM)
2024-09 → —
ZN8 6FC D —
35104N — Ring, O (FOR REFILL PLUG)
SU003-03590 Ring, O (FOR REFILL PLUG)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03590 Ring, O (FOR REFILL PLUG)
2024-09 → —
ZN8 6FC D —
SU003-03590 Ring, O (FOR REFILL PLUG)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03590 Ring, O (FOR REFILL PLUG)
2023-12 → —
ZN8 6FC C —
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
SU003-03612 Plug, NO.1 (FOR TRANSAXLE CASE)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03612 Plug, NO.1 (FOR TRANSAXLE CASE)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03612 Plug, NO.1 (FOR TRANSAXLE CASE)
2023-12 → —
ZN8 6FC C —
SU003-03612 Plug, NO.1 (FOR TRANSAXLE CASE)
2024-09 → —
ZN8 6FC D —
35111 — Housing, Automatic Transmission
SU003-10668 Housing, Automatic Transmission
2024-09 → —
ZN8 6FC D —
SU003-10668 Housing, Automatic Transmission
2023-12 → —
ZN8 6FC C —
SU003-10668 Housing, Automatic Transmission
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-10668 Housing, Automatic Transmission
2021-10 → 2022-06 ended
ZN8 6FC —
35111Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
SU003-03589 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03589 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03589 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2023-12 → —
ZN8 6FC C —
SU003-03589 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2024-09 → —
ZN8 6FC D —
35122 — Tube, Breather (FOR AUTOMATIC TRANSAXLE)
SU003-03850 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03850 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03850 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2023-12 → —
ZN8 6FC C —
SU003-03850 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2024-09 → —
ZN8 6FC D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
