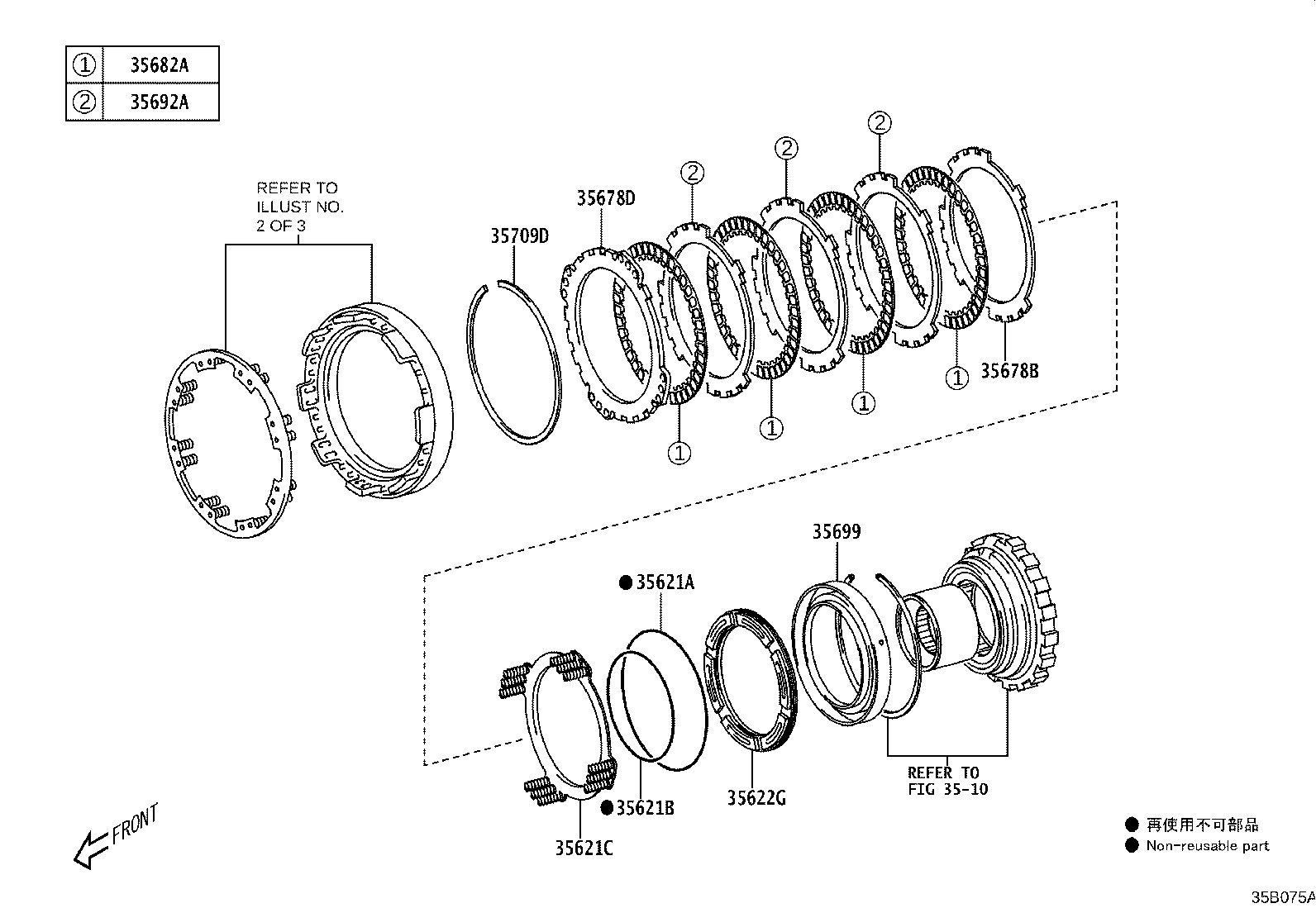

Exploded illustration 35B075A 3510 — not listed in this catalogue 35709D — RING, HOLE SNAP (4 parts) 35678D — FLANGE, BRAKE, NO.2 (4 parts) 35678B — FLANGE, BRAKE, NO.2 (32 parts) 35621C — SPRING (FOR BRAKE PISTON RETURN) (4 parts) 35621B — RING, O (FOR BRAKE PISTON INNER) (4 parts) 35622G — PISTON, BRAKE, NO.2 (4 parts) 35621A — RING, O (FOR BRAKE PISTON OUTER) (4 parts) 35699 — CYLINDER, BRAKE, NO.2 (4 parts) 35682A — DISC, BRAKE, NO.2 (4 parts) 35692A — PLATE, BRAKE, NO.2 (4 parts)
35B075A · 10 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
35621A — Ring, O (FOR BRAKE PISTON OUTER)
SU003-03611 Ring, O (FOR BRAKE PISTON OUTER)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03611 Ring, O (FOR BRAKE PISTON OUTER)
2023-12 → —
ZN8 6FC C —
SU003-03611 Ring, O (FOR BRAKE PISTON OUTER)
2024-09 → —
ZN8 6FC D —
SU003-03611 Ring, O (FOR BRAKE PISTON OUTER)
2021-10 → 2022-06 ended
ZN8 6FC —
35621B — Ring, O (FOR BRAKE PISTON INNER)
SU003-03606 Ring, O (FOR BRAKE PISTON INNER)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03606 Ring, O (FOR BRAKE PISTON INNER)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03606 Ring, O (FOR BRAKE PISTON INNER)
2023-12 → —
ZN8 6FC C —
SU003-03606 Ring, O (FOR BRAKE PISTON INNER)
2024-09 → —
ZN8 6FC D —
35621C — Spring (FOR BRAKE PISTON RETURN)
SU003-03655 Spring (FOR BRAKE PISTON RETURN)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03655 Spring (FOR BRAKE PISTON RETURN)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03655 Spring (FOR BRAKE PISTON RETURN)
2023-12 → —
ZN8 6FC C —
SU003-03655 Spring (FOR BRAKE PISTON RETURN)
2024-09 → —
ZN8 6FC D —
35622G — Piston, Brake, NO.2
SU003-03706 Piston, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03706 Piston, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03706 Piston, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03706 Piston, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
35678B — Flange, Brake, NO.2
SU003-03771 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03771 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03771 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03771 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03772 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03772 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03772 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03772 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03773 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03773 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03773 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03773 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03774 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03774 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03774 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03774 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03775 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03775 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03775 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03775 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03776 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03776 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03776 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03776 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03777 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03777 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03777 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03777 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03778 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03778 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03778 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03778 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
35678D — Flange, Brake, NO.2
SU003-03770 note Flange, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03770 note Flange, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03770 note Flange, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03770 note Flange, Brake, NO.2
2024-09 → —
ZN8 6FC D —
35682A — Disc, Brake, NO.2
SU003-03781 Disc, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03781 Disc, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03781 Disc, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03781 Disc, Brake, NO.2
2024-09 → —
ZN8 6FC D —
35692A — Plate, Brake, NO.2
SU003-03795 Plate, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03795 Plate, Brake, NO.2
2024-09 → —
ZN8 6FC D —
SU003-03795 Plate, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03795 Plate, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
35699 — Cylinder, Brake, NO.2
SU003-03799 Cylinder, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03799 Cylinder, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03799 Cylinder, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03799 Cylinder, Brake, NO.2
2024-09 → —
ZN8 6FC D —
35709D — Ring, Hole Snap
SU003-03539 Ring, Hole Snap
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03539 Ring, Hole Snap
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03539 Ring, Hole Snap
2023-12 → —
ZN8 6FC C —
SU003-03539 Ring, Hole Snap
2024-09 → —
ZN8 6FC D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
