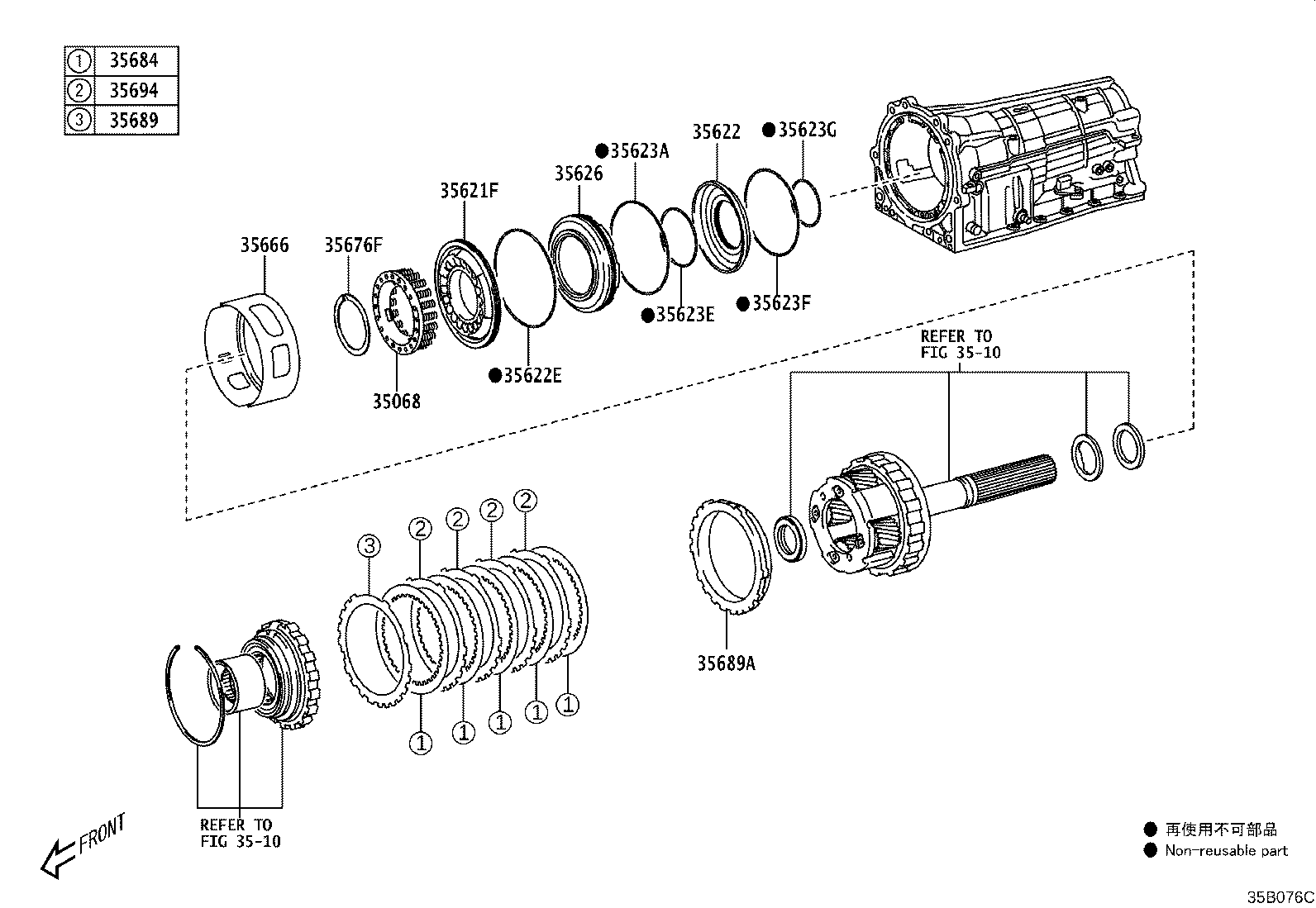

Exploded illustration 35B076C 3510 — not listed in this catalogue 35666 — TUBE, BRAKE APPLY (4 parts) 35676F — RING, SNAP (FOR TRANSMISSION CASE) (4 parts) 35621F — PISTON, BRAKE, NO.1 (4 parts) 35068 — SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN (4 parts) 35622E — RING, O (FOR BRAKE PISTON NO.2) (4 parts) 35626 — SLEEVE, BRAKE REACTION (4 parts) 35623A — RING, O (FOR BRAKE PISTON NO.3 ) (4 parts) 35622 — PISTON, BRAKE, NO.2 (4 parts) 35623G — RING, O, NO.3 (FOR BRAKE PISTON) (4 parts) 35623E — RING, O, NO.1 (FOR BRAKE PISTON) (4 parts) 35623F — RING, O, NO.2 (FOR BRAKE PISTON) (4 parts) 3510 — not listed in this catalogue 35684 — DISC, BRAKE, NO.4 (4 parts) 35694 — PLATE, BRAKE, NO.4 (4 parts) 35689 — FLANGE, BRAKE, NO.4 (40 parts) 35689A — FLANGE, BRAKE, NO.4 (4 parts)
35B076C · 15 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
35068 — Spring Sub-assy, 1ST & Reverse Brake Return
SU003-03662 Spring Sub-assy, 1ST & Reverse Brake Return
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03662 Spring Sub-assy, 1ST & Reverse Brake Return
2023-12 → —
ZN8 6FC C —
SU003-03662 Spring Sub-assy, 1ST & Reverse Brake Return
2024-09 → —
ZN8 6FC D —
SU003-03662 Spring Sub-assy, 1ST & Reverse Brake Return
2021-10 → 2022-06 ended
ZN8 6FC —
35621F — Piston, Brake, NO.1
SU003-03707 Piston, Brake, NO.1
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03707 Piston, Brake, NO.1
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03707 Piston, Brake, NO.1
2023-12 → —
ZN8 6FC C —
SU003-03707 Piston, Brake, NO.1
2024-09 → —
ZN8 6FC D —
35622 — Piston, Brake, NO.2
SU003-03709 Piston, Brake, NO.2
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03709 Piston, Brake, NO.2
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03709 Piston, Brake, NO.2
2023-12 → —
ZN8 6FC C —
SU003-03709 Piston, Brake, NO.2
2024-09 → —
ZN8 6FC D —
35622E — Ring, O (FOR BRAKE PISTON NO.2)
SU003-03608 Ring, O (FOR BRAKE PISTON NO.2)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03608 Ring, O (FOR BRAKE PISTON NO.2)
2024-09 → —
ZN8 6FC D —
SU003-03608 Ring, O (FOR BRAKE PISTON NO.2)
2023-12 → —
ZN8 6FC C —
SU003-03608 Ring, O (FOR BRAKE PISTON NO.2)
2021-10 → 2022-06 ended
ZN8 6FC —
35623A — Ring, O (FOR BRAKE PISTON NO.3 )
SU003-03606 Ring, O (FOR BRAKE PISTON NO.3 )
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03606 Ring, O (FOR BRAKE PISTON NO.3 )
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03606 Ring, O (FOR BRAKE PISTON NO.3 )
2023-12 → —
ZN8 6FC C —
SU003-03606 Ring, O (FOR BRAKE PISTON NO.3 )
2024-09 → —
ZN8 6FC D —
35623E — Ring, O, NO.1 (FOR BRAKE PISTON)
SU003-03602 Ring, O, NO.1 (FOR BRAKE PISTON)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03602 Ring, O, NO.1 (FOR BRAKE PISTON)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03602 Ring, O, NO.1 (FOR BRAKE PISTON)
2023-12 → —
ZN8 6FC C —
SU003-03602 Ring, O, NO.1 (FOR BRAKE PISTON)
2024-09 → —
ZN8 6FC D —
35623F — Ring, O, NO.2 (FOR BRAKE PISTON)
SU003-03603 Ring, O, NO.2 (FOR BRAKE PISTON)
2023-12 → —
ZN8 6FC C —
SU003-03603 Ring, O, NO.2 (FOR BRAKE PISTON)
2024-09 → —
ZN8 6FC D —
SU003-03603 Ring, O, NO.2 (FOR BRAKE PISTON)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03603 Ring, O, NO.2 (FOR BRAKE PISTON)
2021-10 → 2022-06 ended
ZN8 6FC —
35623G — Ring, O, NO.3 (FOR BRAKE PISTON)
SU003-03601 Ring, O, NO.3 (FOR BRAKE PISTON)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03601 Ring, O, NO.3 (FOR BRAKE PISTON)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03601 Ring, O, NO.3 (FOR BRAKE PISTON)
2023-12 → —
ZN8 6FC C —
SU003-03601 Ring, O, NO.3 (FOR BRAKE PISTON)
2024-09 → —
ZN8 6FC D —
35626 — Sleeve, Brake Reaction
SU003-03708 Sleeve, Brake Reaction
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03708 Sleeve, Brake Reaction
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03708 Sleeve, Brake Reaction
2023-12 → —
ZN8 6FC C —
SU003-03708 Sleeve, Brake Reaction
2024-09 → —
ZN8 6FC D —
35666 — Tube, Brake Apply
SU003-03740 Tube, Brake Apply
2024-09 → —
ZN8 6FC D —
SU003-03740 Tube, Brake Apply
2023-12 → —
ZN8 6FC C —
SU003-03740 Tube, Brake Apply
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03740 Tube, Brake Apply
2021-10 → 2022-06 ended
ZN8 6FC —
35676F — Ring, Snap (FOR TRANSMISSION CASE)
SU003-03530 Ring, Snap (FOR TRANSMISSION CASE)
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03530 Ring, Snap (FOR TRANSMISSION CASE)
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03530 Ring, Snap (FOR TRANSMISSION CASE)
2023-12 → —
ZN8 6FC C —
SU003-03530 Ring, Snap (FOR TRANSMISSION CASE)
2024-09 → —
ZN8 6FC D —
35684 — Disc, Brake, NO.4
SU003-05188 Disc, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05188 Disc, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05188 Disc, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05188 Disc, Brake, NO.4
2024-09 → —
ZN8 6FC D —
35689 — Flange, Brake, NO.4
SU003-05642 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05642 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05642 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05642 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05643 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05643 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05643 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05643 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05644 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05644 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05644 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05644 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05645 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05645 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05645 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05645 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05646 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05646 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05646 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05646 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05647 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05647 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05647 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05647 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05648 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05648 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05648 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05648 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05649 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05649 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05649 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05649 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05650 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05650 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-05650 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05650 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05651 note Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
SU003-05651 note Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-05651 note Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-05651 note Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
35689A — Flange, Brake, NO.4
SU003-03785 Flange, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03785 Flange, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03785 Flange, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-03785 Flange, Brake, NO.4
2024-09 → —
ZN8 6FC D —
35694 — Plate, Brake, NO.4
SU003-03796 Plate, Brake, NO.4
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-03796 Plate, Brake, NO.4
2022-06 → 2023-12 ended
ZN8 6FC B —
SU003-03796 Plate, Brake, NO.4
2023-12 → —
ZN8 6FC C —
SU003-03796 Plate, Brake, NO.4
2024-09 → —
ZN8 6FC D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
