Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

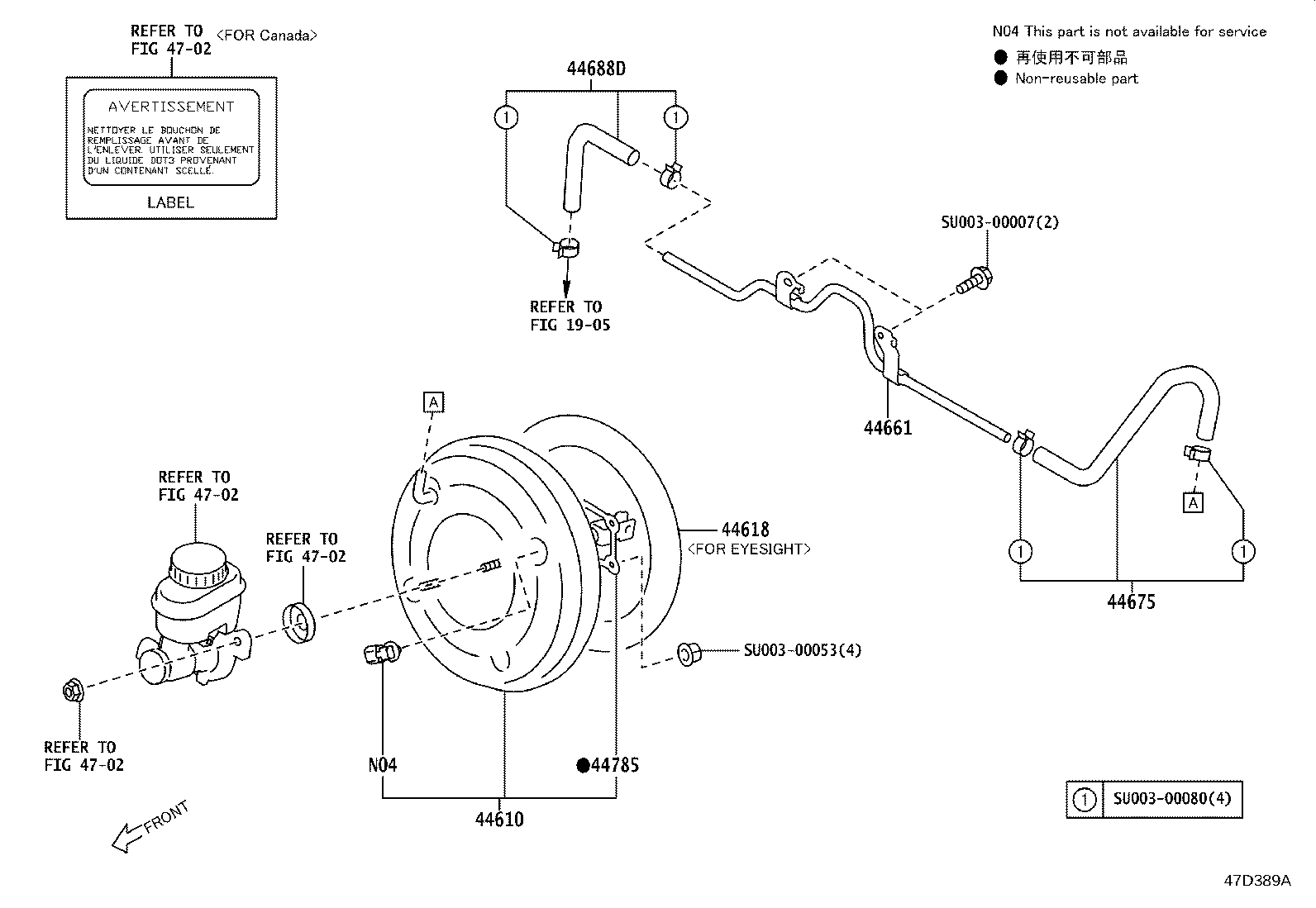

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| SU003-09709 |
Booster Assy, Brake
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09709 |
Booster Assy, Brake
2023-12 → 2024-01
ended
|
ZN8 C | — | |
| SU003-09709 |
Booster Assy, Brake
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-11614 |
Booster Assy, Brake
2024-01 → —
|
ZN8 C | — | |
| SU003-11614 |
Booster Assy, Brake
2024-09 → —
|
ZN8 D | — | |
| 44618 — Seal, Booster Body | ||||
| SU003-08834 |
Seal, Booster Body
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-08834 |
Seal, Booster Body
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-08834 |
Seal, Booster Body
2023-12 → —
|
ZN8 C | — | |
| SU003-08834 |
Seal, Booster Body
2024-09 → —
|
ZN8 D | — | |
| 44661 — Tube, Booster Vacuum | ||||
| SU003-10347 |
Tube, Booster Vacuum
2024-09 → —
|
ZN8 D | — | |
| SU003-10347 |
Tube, Booster Vacuum
2023-12 → —
|
ZN8 C | — | |
| SU003-10347 |
Tube, Booster Vacuum
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10347 |
Tube, Booster Vacuum
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 44675 — Hose, Booster Vacuum | ||||
| SU003-09858 |
Hose, Booster Vacuum
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09858 |
Hose, Booster Vacuum
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09858 |
Hose, Booster Vacuum
2023-12 → —
|
ZN8 C | — | |
| SU003-09858 |
Hose, Booster Vacuum
2024-09 → —
|
ZN8 D | — | |
| 44688D — Hose, Booster Vacuum | ||||
| SU003-09859 |
Hose, Booster Vacuum
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09859 |
Hose, Booster Vacuum
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09859 |
Hose, Booster Vacuum
2023-12 → —
|
ZN8 C | — | |
| SU003-09859 |
Hose, Booster Vacuum
2024-09 → —
|
ZN8 D | — | |
| 44785 — Gasket, Brake Booster | ||||
| SU003-04545 |
Gasket, Brake Booster
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-04545 |
Gasket, Brake Booster
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-04545 |
Gasket, Brake Booster
2023-12 → —
|
ZN8 C | — | |
| SU003-04545 |
Gasket, Brake Booster
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
