Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

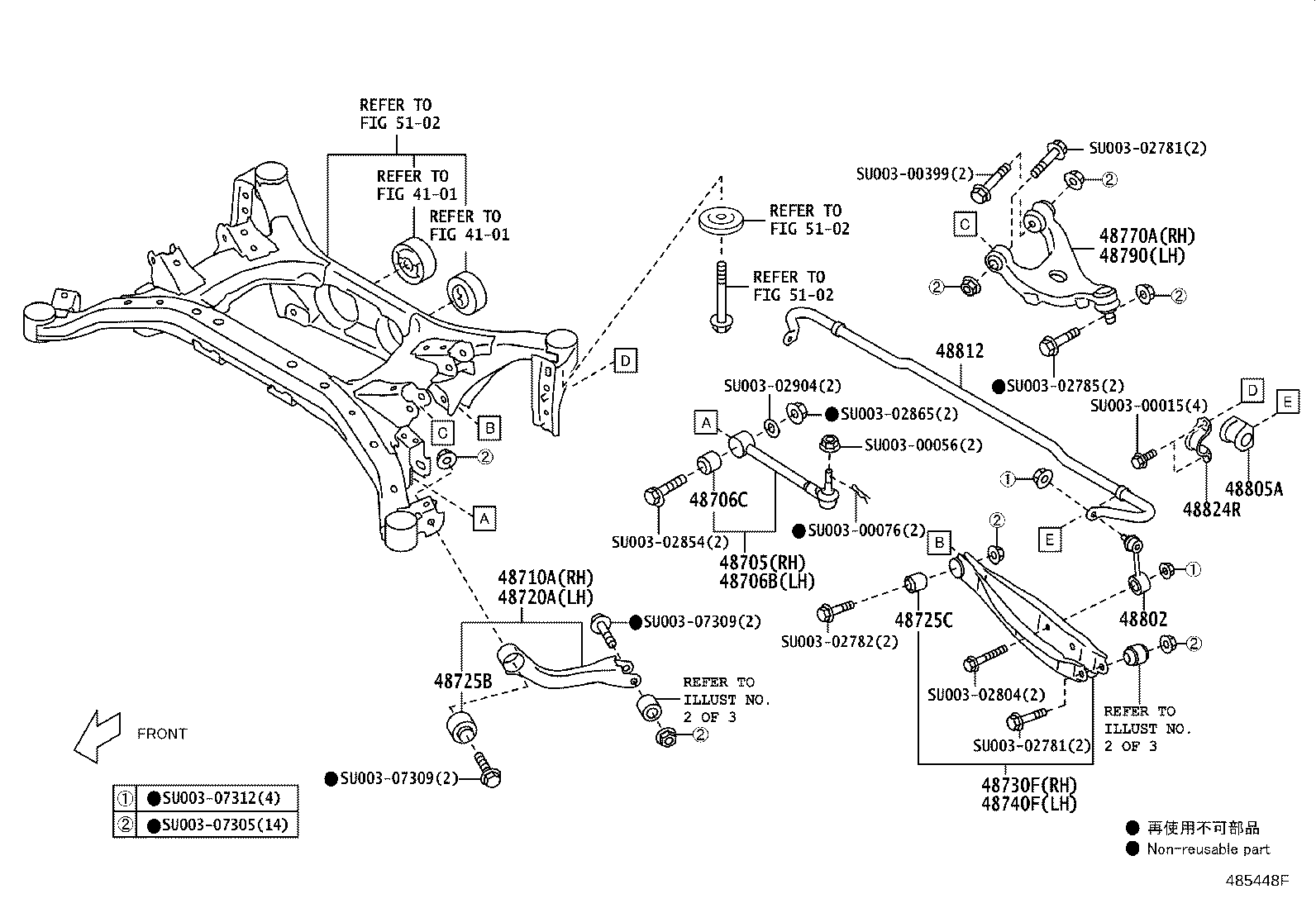

Exploded illustration 485448F 48824R — BRACKET, STABILIZER(FOR REAR) (4 parts) 48805A — BUSH(FOR REAR STABILIZER BAR) (4 parts) 48812 — BAR, STABILIZER, REAR (4 parts) 48725B — BUSH, REAR SUSPENSION ARM, NO.1 (4 parts) 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (4 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (4 parts) 48705 — LINK SUB-ASSY, TOE CONTROL, RH (4 parts) 48706B — LINK SUB-ASSY, TOE CONTROL, LH (4 parts) 48770A — ARM ASSY, UPPER CONTROL, REAR RH (4 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (4 parts) 48706C — BUSH SUB-ASSY, LATERAL CONTROL ROD (4 parts) 48802 — LINK SUB-ASSY, STABILIZER (4 parts) 48730F — ARM ASSY, REAR SUSPENSION, NO.2 RH (4 parts) 5102 — not listed in this catalogue 5102 — not listed in this catalogue 4101 — not listed in this catalogue 4101 — not listed in this catalogue SU00307309 — not listed in this catalogue SU00307309 — not listed in this catalogue SU00302854 — not listed in this catalogue SU00302904 — not listed in this catalogue SU00302865 — not listed in this catalogue SU00300056 — not listed in this catalogue SU00302785 — not listed in this catalogue SU00302781 — not listed in this catalogue SU00300399 — not listed in this catalogue SU00300015 — not listed in this catalogue SU00300076 — not listed in this catalogue SU00302782 — not listed in this catalogue SU00302804 — not listed in this catalogue SU00302781 — not listed in this catalogue SU00307305 — not listed in this catalogue SU00307312 — not listed in this catalogue 48725C — BUSH, REAR SUSPENSION ARM, NO.2 (4 parts) 48740F — ARM ASSY, REAR SUSPENSION, NO.2 LH (4 parts) 5102 — not listed in this catalogue
485448F · 15 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
48705 — Link Sub-assy, Toe Control, RH
SU003-00362 Link Sub-assy, Toe Control, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00362 Link Sub-assy, Toe Control, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-00362 Link Sub-assy, Toe Control, RH
2024-09 → —
ZN8 D —
SU003-00362 Link Sub-assy, Toe Control, RH
2023-12 → —
ZN8 C —
48706B — Link Sub-assy, Toe Control, LH
SU003-00362 Link Sub-assy, Toe Control, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-00362 Link Sub-assy, Toe Control, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00362 Link Sub-assy, Toe Control, LH
2023-12 → —
ZN8 C —
SU003-00362 Link Sub-assy, Toe Control, LH
2024-09 → —
ZN8 D —
48706C — Bush Sub-assy, Lateral Control Rod
SU003-00367 Bush Sub-assy, Lateral Control Rod
2021-10 → 2022-06 ended
ZN8 —
SU003-00367 Bush Sub-assy, Lateral Control Rod
2022-06 → 2023-12 ended
ZN8 B —
SU003-00367 Bush Sub-assy, Lateral Control Rod
2023-12 → —
ZN8 C —
SU003-00367 Bush Sub-assy, Lateral Control Rod
2024-09 → —
ZN8 D —
48710A — Arm Assy, Rear Suspension, NO.1 RH
SU003-00360 Arm Assy, Rear Suspension, NO.1 RH
2021-10 → 2022-06 ended
ZN8 —
SU003-00360 Arm Assy, Rear Suspension, NO.1 RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00360 Arm Assy, Rear Suspension, NO.1 RH
2023-12 → —
ZN8 C —
SU003-00360 Arm Assy, Rear Suspension, NO.1 RH
2024-09 → —
ZN8 D —
48720A — Arm Assy, Rear Suspension, NO.1 LH
SU003-00360 Arm Assy, Rear Suspension, NO.1 LH
2021-10 → 2022-06 ended
ZN8 —
SU003-00360 Arm Assy, Rear Suspension, NO.1 LH
2024-09 → —
ZN8 D —
SU003-00360 Arm Assy, Rear Suspension, NO.1 LH
2023-12 → —
ZN8 C —
SU003-00360 Arm Assy, Rear Suspension, NO.1 LH
2022-06 → 2023-12 ended
ZN8 B —
48725B — Bush, Rear Suspension Arm, NO.1
SU003-00366 Bush, Rear Suspension Arm, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-00366 Bush, Rear Suspension Arm, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-00366 Bush, Rear Suspension Arm, NO.1
2023-12 → —
ZN8 C —
SU003-00366 Bush, Rear Suspension Arm, NO.1
2024-09 → —
ZN8 D —
48725C — Bush, Rear Suspension Arm, NO.2
SU003-00365 Bush, Rear Suspension Arm, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-00365 Bush, Rear Suspension Arm, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-00365 Bush, Rear Suspension Arm, NO.2
2023-12 → —
ZN8 C —
SU003-00365 Bush, Rear Suspension Arm, NO.2
2024-09 → —
ZN8 D —
48730F — Arm Assy, Rear Suspension, NO.2 RH
SU003-08417 Arm Assy, Rear Suspension, NO.2 RH
2024-09 → —
ZN8 D —
SU003-08417 Arm Assy, Rear Suspension, NO.2 RH
2023-12 → —
ZN8 C —
SU003-08417 Arm Assy, Rear Suspension, NO.2 RH
2021-10 → 2022-06 ended
ZN8 —
SU003-08417 Arm Assy, Rear Suspension, NO.2 RH
2022-06 → 2023-12 ended
ZN8 B —
48740F — Arm Assy, Rear Suspension, NO.2 LH
SU003-08417 Arm Assy, Rear Suspension, NO.2 LH
2021-10 → 2022-06 ended
ZN8 —
SU003-08417 Arm Assy, Rear Suspension, NO.2 LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08417 Arm Assy, Rear Suspension, NO.2 LH
2023-12 → —
ZN8 C —
SU003-08417 Arm Assy, Rear Suspension, NO.2 LH
2024-09 → —
ZN8 D —
48770A — Arm Assy, Upper Control, Rear RH
SU003-07492 Arm Assy, Upper Control, Rear RH
2021-10 → 2022-06 ended
ZN8 —
SU003-07492 Arm Assy, Upper Control, Rear RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-07492 Arm Assy, Upper Control, Rear RH
2023-12 → —
ZN8 C —
SU003-07492 Arm Assy, Upper Control, Rear RH
2024-09 → —
ZN8 D —
48790 — Arm Assy, Upper Control, Rear LH
SU003-07493 Arm Assy, Upper Control, Rear LH
2021-10 → 2022-06 ended
ZN8 —
SU003-07493 Arm Assy, Upper Control, Rear LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-07493 Arm Assy, Upper Control, Rear LH
2023-12 → —
ZN8 C —
SU003-07493 Arm Assy, Upper Control, Rear LH
2024-09 → —
ZN8 D —
48802 — Link Sub-assy, Stabilizer
SU003-00398 Link Sub-assy, Stabilizer
2022-06 → 2023-12 ended
ZN8 B —
SU003-00398 Link Sub-assy, Stabilizer
2024-09 → —
ZN8 D —
SU003-00398 Link Sub-assy, Stabilizer
2023-12 → —
ZN8 C —
SU003-00398 Link Sub-assy, Stabilizer
2021-10 → 2022-06 ended
ZN8 —
48805A — Bush(FOR REAR STABILIZER BAR)
SU003-06462 Bush(FOR REAR STABILIZER BAR)
2021-10 → 2022-06 ended
ZN8 —
SU003-06462 Bush(FOR REAR STABILIZER BAR)
2022-06 → 2023-12 ended
ZN8 B —
SU003-06462 Bush(FOR REAR STABILIZER BAR)
2023-12 → —
ZN8 C —
SU003-06462 Bush(FOR REAR STABILIZER BAR)
2024-09 → —
ZN8 D —
48812 — Bar, Stabilizer, Rear
SU003-06461 Bar, Stabilizer, Rear
2021-10 → 2022-06 ended
ZN8 —
SU003-06461 Bar, Stabilizer, Rear
2022-06 → 2023-12 ended
ZN8 B —
SU003-06461 Bar, Stabilizer, Rear
2023-12 → —
ZN8 C —
SU003-06461 Bar, Stabilizer, Rear
2024-09 → —
ZN8 D —
48824R — Bracket, Stabilizer(FOR REAR)
SU003-00397 Bracket, Stabilizer(FOR REAR)
2021-10 → 2022-06 ended
ZN8 —
SU003-00397 Bracket, Stabilizer(FOR REAR)
2022-06 → 2023-12 ended
ZN8 B —
SU003-00397 Bracket, Stabilizer(FOR REAR)
2023-12 → —
ZN8 C —
SU003-00397 Bracket, Stabilizer(FOR REAR)
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
