Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

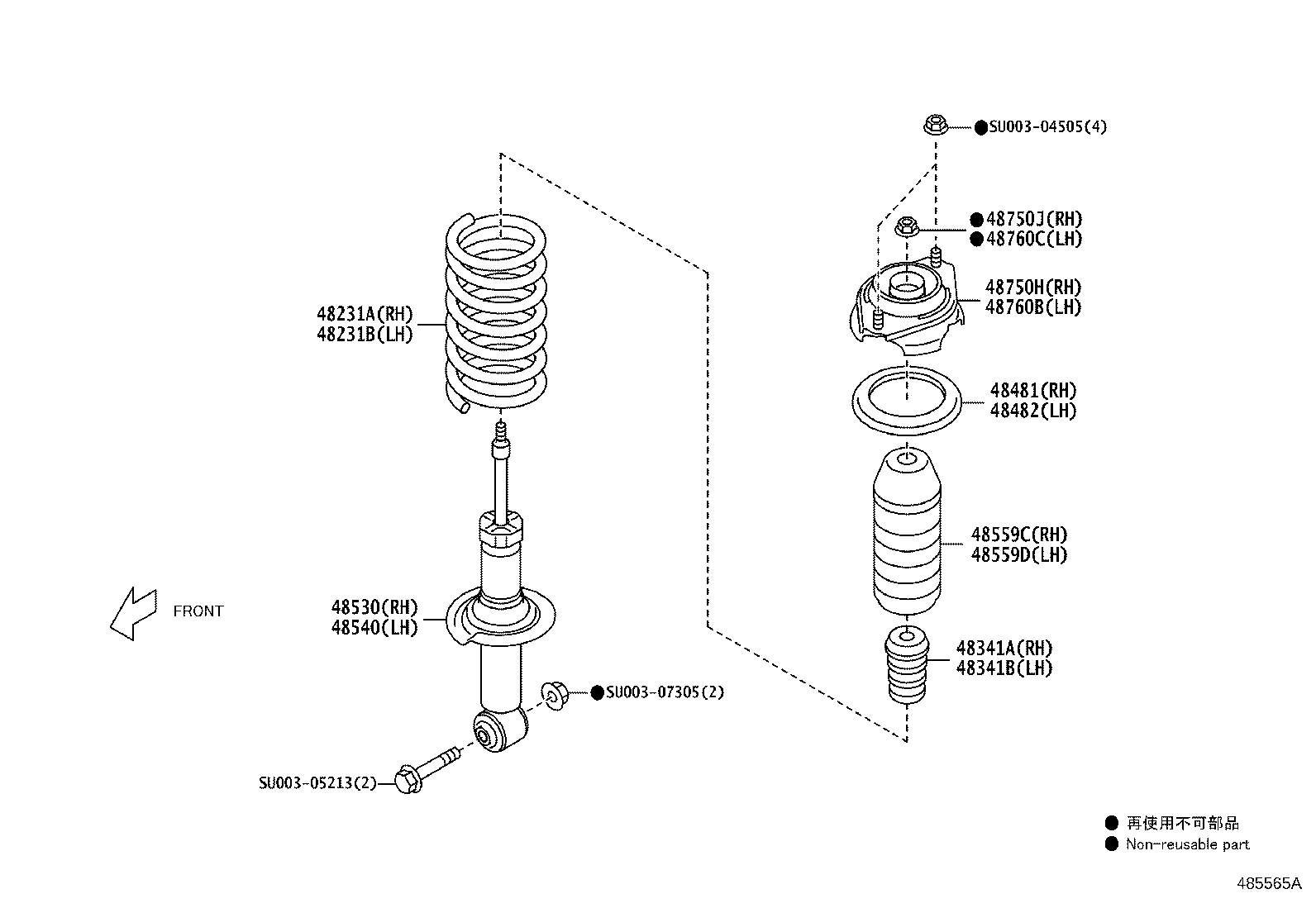

Exploded illustration 485565A 48231A — SPRING, COIL, REAR RH (9 parts) 48231B — SPRING, COIL, REAR LH (9 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (24 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (24 parts) 48750J — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) (4 parts) 48760C — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) (4 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (4 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (4 parts) 48481 — SEAT, REAR SPRING, UPPER (4 parts) 48482 — SEAT, REAR SPRING, UPPER LH (4 parts) 48559C — COVER, REAR SHOCK ABSORBER DUST, RH NO.1 (4 parts) 48559D — COVER, REAR SHOCK ABSORBER DUST, LH NO.1 (4 parts) 48341A — BUMPER, REAR SPRING, NO.1 RH (4 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (4 parts) SU00304505 — not listed in this catalogue SU00305213 — not listed in this catalogue SU00307305 — not listed in this catalogue
485565A · 14 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
48231A — Spring, Coil, Rear RH
SU003-10778 note Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10778 note Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10778 Spring, Coil, Rear RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-10778 Spring, Coil, Rear RH
2023-12 → —
ZN8 C —
SU003-10778 Spring, Coil, Rear RH
2024-09 → —
ZN8 D —
SU003-10778 Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-10779 Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-10779 note Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10779 note Spring, Coil, Rear RH
2021-10 → 2022-06 ended
ZN8 6F —
48231B — Spring, Coil, Rear LH
SU003-10778 Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-10778 note Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10778 note Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10778 Spring, Coil, Rear LH
2024-09 → —
ZN8 D —
SU003-10778 Spring, Coil, Rear LH
2023-12 → —
ZN8 C —
SU003-10778 Spring, Coil, Rear LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-10779 note Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10779 note Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10779 Spring, Coil, Rear LH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
48341A — Bumper, Rear Spring, NO.1 RH
SU003-00384 Bumper, Rear Spring, NO.1 RH
2021-10 → 2022-06 ended
ZN8 —
SU003-00384 Bumper, Rear Spring, NO.1 RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00384 Bumper, Rear Spring, NO.1 RH
2023-12 → —
ZN8 C —
SU003-00384 Bumper, Rear Spring, NO.1 RH
2024-09 → —
ZN8 D —
48341B — Bumper, Rear Spring, NO.1 LH
SU003-00384 Bumper, Rear Spring, NO.1 LH
2021-10 → 2022-06 ended
ZN8 —
SU003-00384 Bumper, Rear Spring, NO.1 LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00384 Bumper, Rear Spring, NO.1 LH
2023-12 → —
ZN8 C —
SU003-00384 Bumper, Rear Spring, NO.1 LH
2024-09 → —
ZN8 D —
48481 — Seat, Rear Spring, Upper
SU003-00387 Seat, Rear Spring, Upper
2023-12 → —
ZN8 C —
SU003-00387 Seat, Rear Spring, Upper
2024-09 → —
ZN8 D —
SU003-00387 Seat, Rear Spring, Upper
2022-06 → 2023-12 ended
ZN8 B —
SU003-00387 Seat, Rear Spring, Upper
2021-10 → 2022-06 ended
ZN8 —
48482 — Seat, Rear Spring, Upper LH
SU003-00387 Seat, Rear Spring, Upper LH
2021-10 → 2022-06 ended
ZN8 —
SU003-00387 Seat, Rear Spring, Upper LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-00387 Seat, Rear Spring, Upper LH
2023-12 → —
ZN8 C —
SU003-00387 Seat, Rear Spring, Upper LH
2024-09 → —
ZN8 D —
48530 — Absorber Assy, Shock, Rear RH
SU003-09578 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09578 note Absorber Assy, Shock, Rear RH
2021-10 → 2022-06 ended
ZN8 —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 GRA —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear RH
2023-12 → —
ZN8 ORB —
SU003-11832 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear RH
2024-09 → —
ZN8 (BASE,HIGH) D —
48540 — Absorber Assy, Shock, Rear LH
SU003-09578 note Absorber Assy, Shock, Rear LH
2021-10 → 2022-06 ended
ZN8 —
SU003-09578 note Absorber Assy, Shock, Rear LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09578 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09578 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11421 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 GRA —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11421 note Absorber Assy, Shock, Rear LH
2023-12 → —
ZN8 ORB —
SU003-11832 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11832 note Absorber Assy, Shock, Rear LH
2024-09 → —
ZN8 (BASE,HIGH) D —
48559C — Cover, Rear Shock Absorber Dust, RH NO.1
SU003-00385 Cover, Rear Shock Absorber Dust, RH NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-00385 Cover, Rear Shock Absorber Dust, RH NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-00385 Cover, Rear Shock Absorber Dust, RH NO.1
2023-12 → —
ZN8 C —
SU003-00385 Cover, Rear Shock Absorber Dust, RH NO.1
2024-09 → —
ZN8 D —
48559D — Cover, Rear Shock Absorber Dust, LH NO.1
SU003-00385 Cover, Rear Shock Absorber Dust, LH NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-00385 Cover, Rear Shock Absorber Dust, LH NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-00385 Cover, Rear Shock Absorber Dust, LH NO.1
2023-12 → —
ZN8 C —
SU003-00385 Cover, Rear Shock Absorber Dust, LH NO.1
2024-09 → —
ZN8 D —
48750H — Support Assy, Rear Suspension, RH
SU003-08419 Support Assy, Rear Suspension, RH
2023-12 → —
ZN8 C —
SU003-08419 Support Assy, Rear Suspension, RH
2024-09 → —
ZN8 D —
SU003-08419 Support Assy, Rear Suspension, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08419 Support Assy, Rear Suspension, RH
2021-10 → 2022-06 ended
ZN8 —
48750J — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2021-10 → 2022-06 ended
ZN8 —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2022-06 → 2023-12 ended
ZN8 B —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2023-12 → —
ZN8 C —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2024-09 → —
ZN8 D —
48760B — Support Assy Rear Suspension, LH
SU003-08419 Support Assy Rear Suspension, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-08419 Support Assy Rear Suspension, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08419 Support Assy Rear Suspension, LH
2023-12 → —
ZN8 C —
SU003-08419 Support Assy Rear Suspension, LH
2024-09 → —
ZN8 D —
48760C — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2021-10 → 2022-06 ended
ZN8 —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2022-06 → 2023-12 ended
ZN8 B —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2023-12 → —
ZN8 C —
SU003-02869 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
