Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

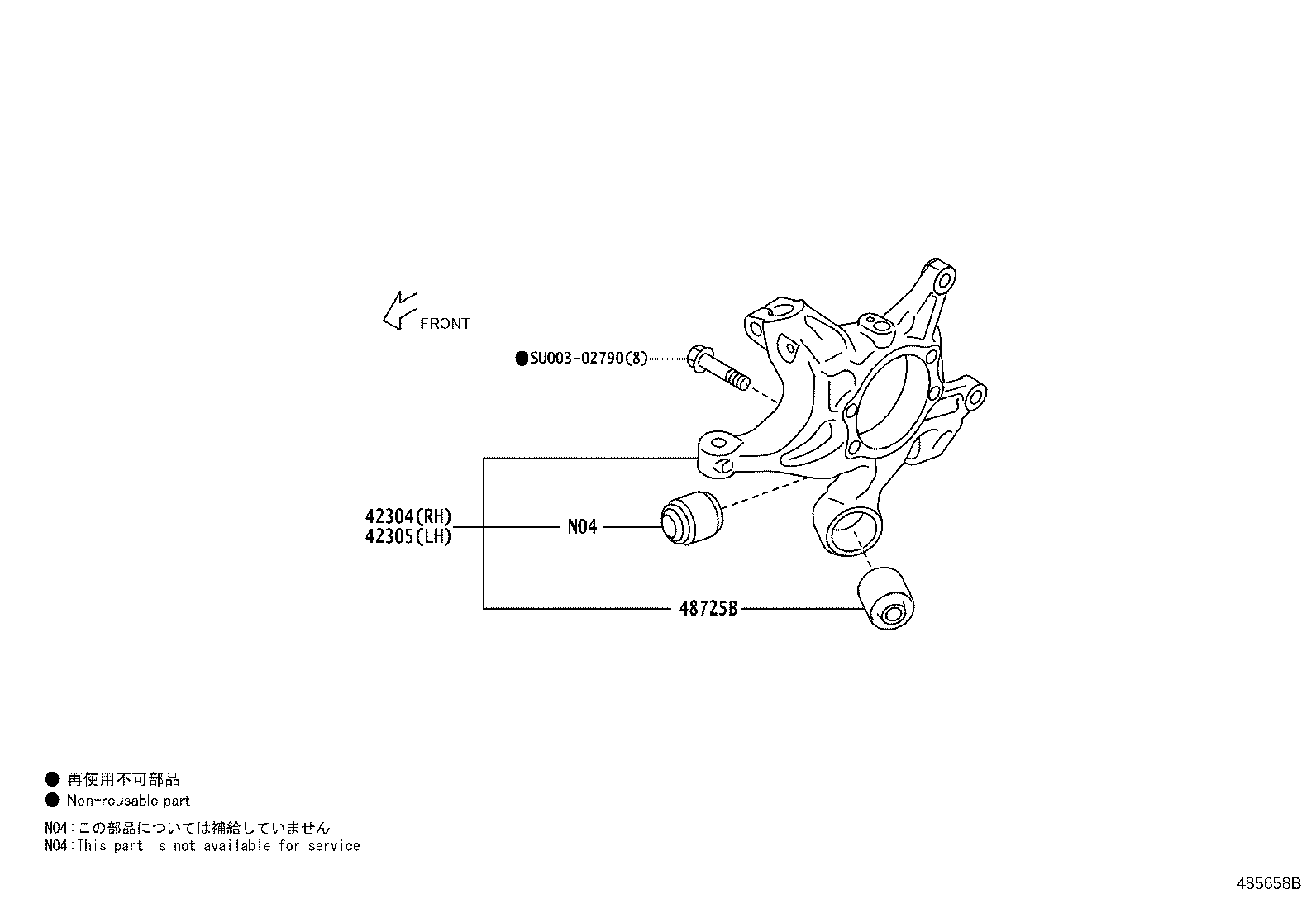

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42304 — Carrier Sub-assy, Rear Axle, RH | ||||
| SU003-10802 |
Carrier Sub-assy, Rear Axle, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10802 |
Carrier Sub-assy, Rear Axle, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10802 |
Carrier Sub-assy, Rear Axle, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-10802 |
Carrier Sub-assy, Rear Axle, RH
2024-09 → —
|
ZN8 D | — | |
| 42305 — Carrier Sub-assy, Rear Axle, LH | ||||
| SU003-10803 |
Carrier Sub-assy, Rear Axle, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10803 |
Carrier Sub-assy, Rear Axle, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10803 |
Carrier Sub-assy, Rear Axle, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-10803 |
Carrier Sub-assy, Rear Axle, LH
2024-09 → —
|
ZN8 D | — | |
| 48725B — Bush, Rear Suspension Arm, NO.1 | ||||
| SU003-00366 |
Bush, Rear Suspension Arm, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-00366 |
Bush, Rear Suspension Arm, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-00366 |
Bush, Rear Suspension Arm, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-00366 |
Bush, Rear Suspension Arm, NO.1
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
