Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

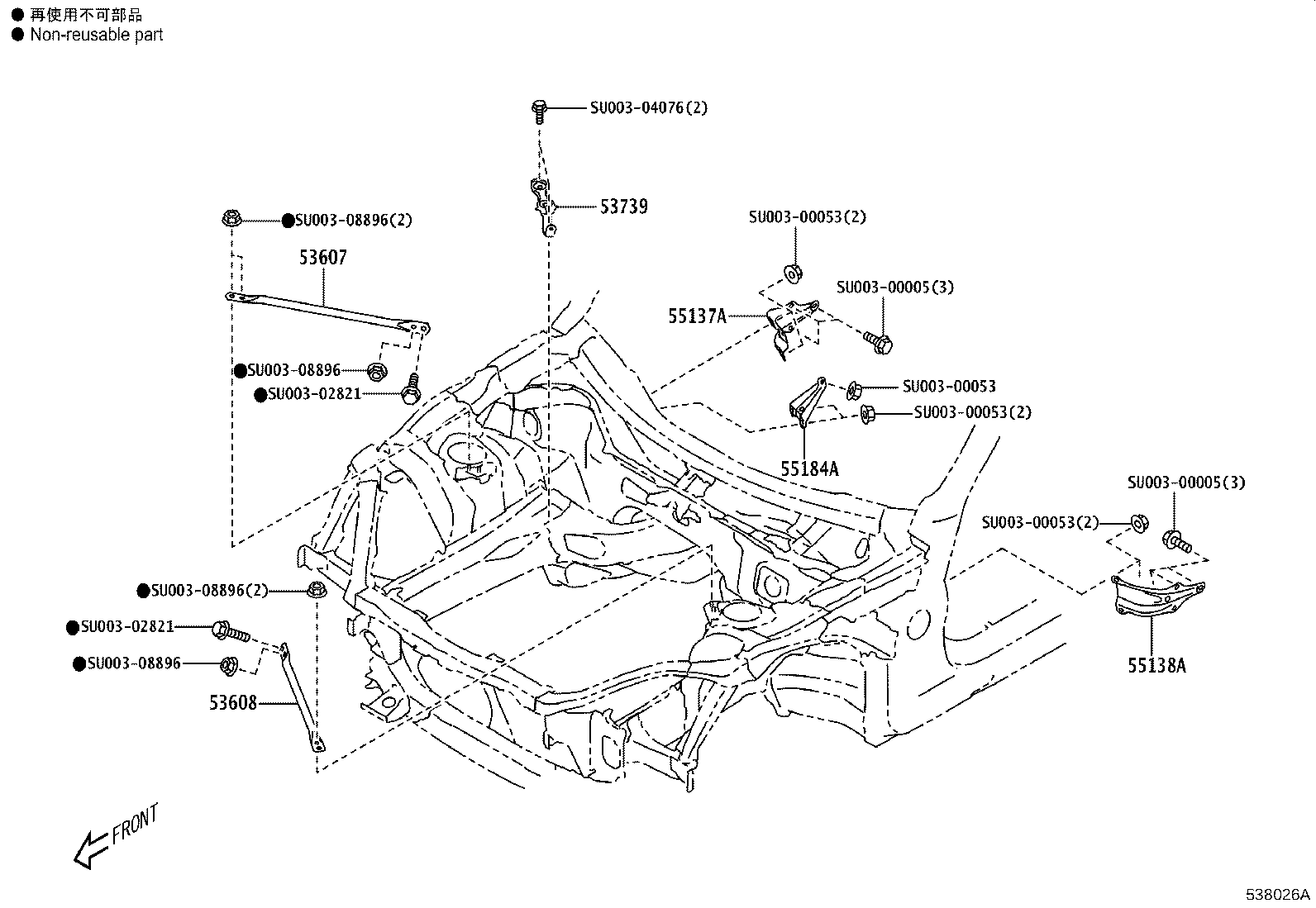

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53607 — Brace Sub-assy, Front Suspension Upper TO Cowl, RH | ||||
| SU003-01232 |
Brace Sub-assy, Front Suspension Upper TO Cowl, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01232 |
Brace Sub-assy, Front Suspension Upper TO Cowl, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-01232 |
Brace Sub-assy, Front Suspension Upper TO Cowl, RH
2024-09 → —
|
ZN8 D | — | |
| SU003-01232 |
Brace Sub-assy, Front Suspension Upper TO Cowl, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 53608 — Brace Sub-assy, Front Suspension Upper TO Cowl, LH | ||||
| SU003-01233 |
Brace Sub-assy, Front Suspension Upper TO Cowl, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-01233 |
Brace Sub-assy, Front Suspension Upper TO Cowl, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01233 |
Brace Sub-assy, Front Suspension Upper TO Cowl, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-01233 |
Brace Sub-assy, Front Suspension Upper TO Cowl, LH
2024-09 → —
|
ZN8 D | — | |
| 53739 — Bracket, Battery Support | ||||
| SU003-01234 |
Bracket, Battery Support
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-01234 |
Bracket, Battery Support
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01234 |
Bracket, Battery Support
2023-12 → —
|
ZN8 C | — | |
| SU003-01234 |
Bracket, Battery Support
2024-09 → —
|
ZN8 D | — | |
| 55137A — Brace, Dash TO Frame, RH | ||||
| SU003-08894 |
Brace, Dash TO Frame, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08894 |
Brace, Dash TO Frame, RH
2024-09 → —
|
ZN8 D | — | |
| SU003-08894 |
Brace, Dash TO Frame, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-08894 |
Brace, Dash TO Frame, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| 55138A — Brace, Dash TO Frame, LH | ||||
| SU003-08895 |
Brace, Dash TO Frame, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08895 |
Brace, Dash TO Frame, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08895 |
Brace, Dash TO Frame, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-08895 |
Brace, Dash TO Frame, LH
2024-09 → —
|
ZN8 D | — | |
| 55184A — Bracket, Dash Panel | ||||
| SU003-01229 |
Bracket, Dash Panel
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-01229 |
Bracket, Dash Panel
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01229 |
Bracket, Dash Panel
2023-12 → —
|
ZN8 C | — | |
| SU003-01229 |
Bracket, Dash Panel
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
