Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

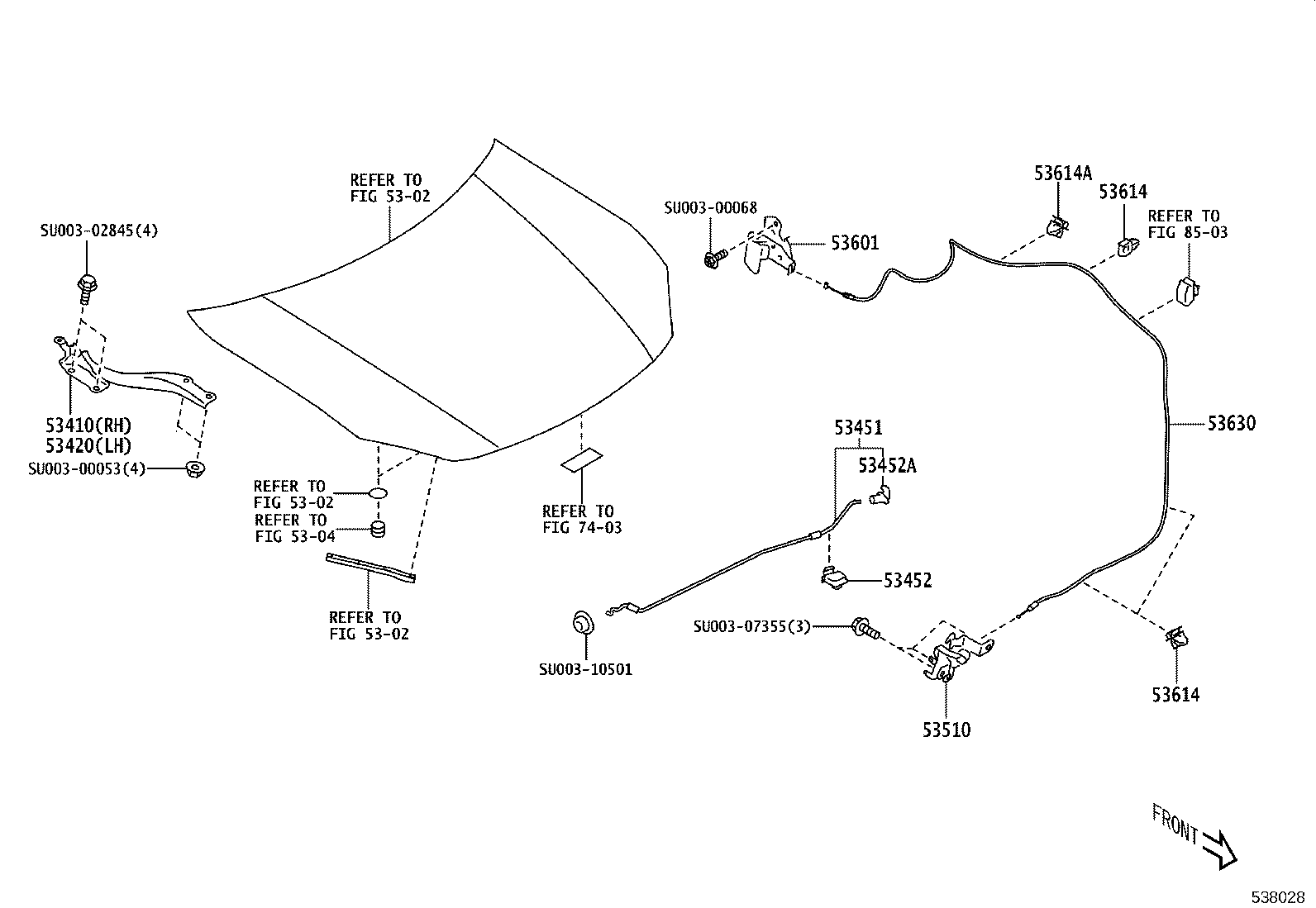

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| SU003-09179 |
Hinge Assy, Hood, RH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09179 |
Hinge Assy, Hood, RH
2023-12 → —
|
ZN8 C | — | |
| SU003-09179 |
Hinge Assy, Hood, RH
2024-09 → —
|
ZN8 D | — | |
| SU003-09179 |
Hinge Assy, Hood, RH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| SU003-09180 |
Hinge Assy, Hood, LH
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09180 |
Hinge Assy, Hood, LH
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09180 |
Hinge Assy, Hood, LH
2023-12 → —
|
ZN8 C | — | |
| SU003-09180 |
Hinge Assy, Hood, LH
2024-09 → —
|
ZN8 D | — | |
| 53451 — Rod, Hood Support | ||||
| SU003-09176 |
Rod, Hood Support
2024-09 → —
|
ZN8 D | — | |
| SU003-09176 |
Rod, Hood Support
2023-12 → —
|
ZN8 C | — | |
| SU003-09176 |
Rod, Hood Support
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09176 |
Rod, Hood Support
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 53452 — Holder, Hood Stay | ||||
| SU003-09178 |
Holder, Hood Stay
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09178 |
Holder, Hood Stay
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09178 |
Holder, Hood Stay
2023-12 → —
|
ZN8 C | — | |
| SU003-09178 |
Holder, Hood Stay
2024-09 → —
|
ZN8 D | — | |
| 53452A — Holder, Hood Stay | ||||
| SU003-08452 |
Holder, Hood Stay
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08452 |
Holder, Hood Stay
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08452 |
Holder, Hood Stay
2023-12 → —
|
ZN8 C | — | |
| SU003-08452 |
Holder, Hood Stay
2024-09 → —
|
ZN8 D | — | |
| 53510 — Lock Assy, Hood | ||||
| SU003-09883 |
Lock Assy, Hood
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09883 |
Lock Assy, Hood
2024-09 → —
|
ZN8 D | — | |
| SU003-09883 |
Lock Assy, Hood
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09883 |
Lock Assy, Hood
2023-12 → —
|
ZN8 C | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| SU003-01410 |
Lever Sub-assy, Hood Lock Control
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-01410 |
Lever Sub-assy, Hood Lock Control
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01410 |
Lever Sub-assy, Hood Lock Control
2023-12 → —
|
ZN8 C | — | |
| SU003-01410 |
Lever Sub-assy, Hood Lock Control
2024-09 → —
|
ZN8 D | — | |
| 53614 — Clamp, Hood Lock Control Cable | ||||
| SU003-08047 |
Clamp, Hood Lock Control Cable
2024-09 → —
|
ZN8 D | — | |
| SU003-08047 |
Clamp, Hood Lock Control Cable
2023-12 → —
|
ZN8 C | — | |
| SU003-08047 |
Clamp, Hood Lock Control Cable
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08047 |
Clamp, Hood Lock Control Cable
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 53614A — Clamp, Hood Lock Control Cable, NO.1 | ||||
| SU003-10807 |
Clamp, Hood Lock Control Cable, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-10807 |
Clamp, Hood Lock Control Cable, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10807 |
Clamp, Hood Lock Control Cable, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-10807 |
Clamp, Hood Lock Control Cable, NO.1
2024-09 → —
|
ZN8 D | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| SU003-09182 |
Cable Assy, Hood Lock Control
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09182 |
Cable Assy, Hood Lock Control
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09182 |
Cable Assy, Hood Lock Control
2023-12 → —
|
ZN8 C | — | |
| SU003-09182 |
Cable Assy, Hood Lock Control
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
