Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

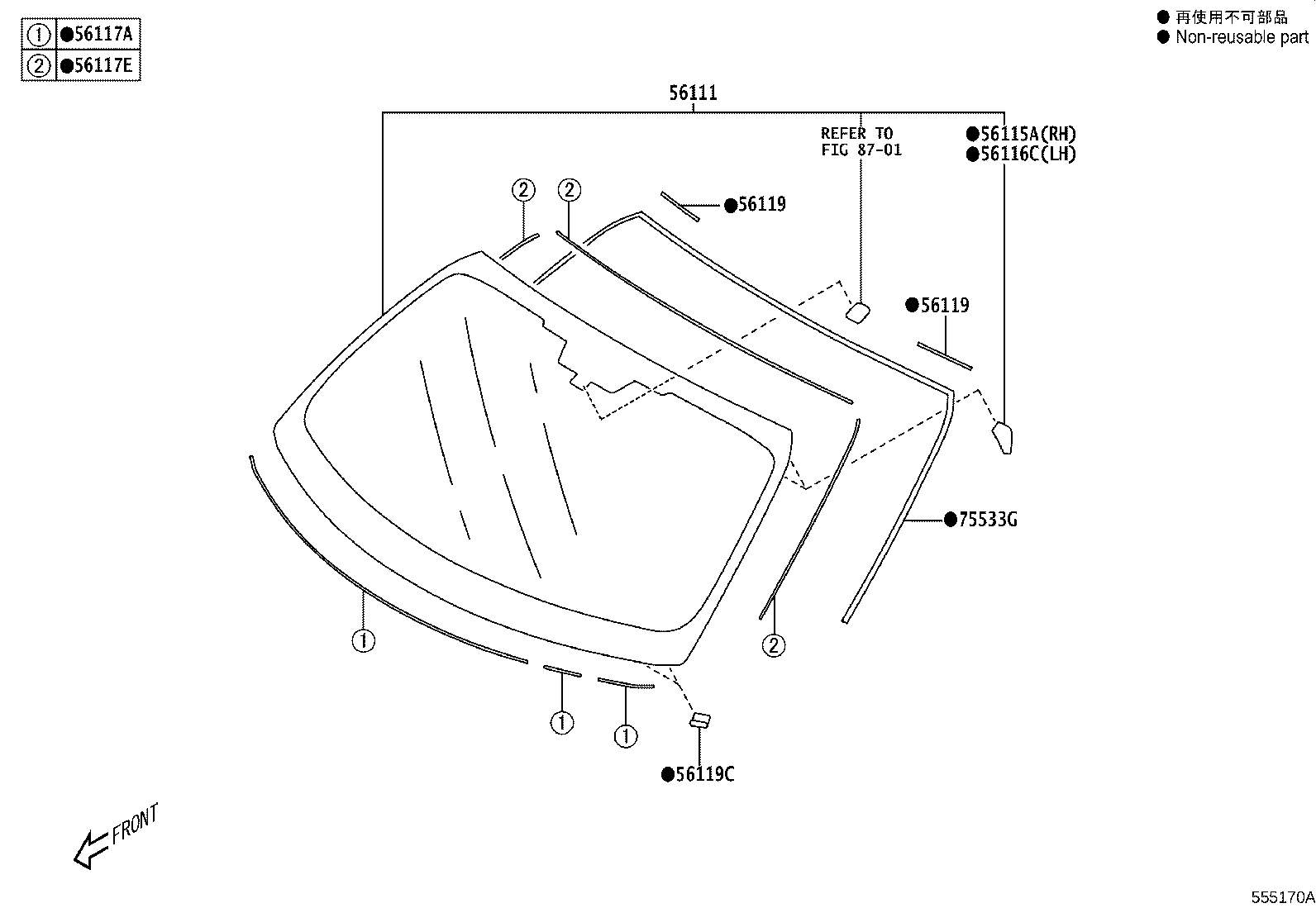

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 56111 — Glass, Windshield | ||||
| SU003-G0040 note |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-G0040 |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 6FC (BASE,HIGH) | — | |
| SU003-G0040 note |
Glass, Windshield
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-G0040 note |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-G0040 |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE,HIGH) B | — | |
| SU003-G0041 note |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-G0041 note |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-G0041 |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6F ORA | — | |
| SU003-G0041 note |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-G0041 note |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-G0041 note |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6F (BASE,HIGH) B | — | |
| SU003-G0041 note |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-G0042 note |
Glass, Windshield
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-G0042 note |
Glass, Windshield
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-G0042 note |
Glass, Windshield
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-G0042 note |
Glass, Windshield
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| SU003-G0042 |
Glass, Windshield
2024-09 → —
|
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 | — | |
| SU003-G0042 note |
Glass, Windshield
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-G0042 note |
Glass, Windshield
2023-12 → —
|
ZN8 6F (BASE,HIGH) C | — | |
| SU003-G0042 |
Glass, Windshield
2021-10 → 2022-06
ended
|
ZN8 BASE2,HIGH2 | — | |
| SU003-G0042 |
Glass, Windshield
2023-12 → —
|
ZN8 6FC C;ZN8 6F +1 | — | |
| SU003-G0042 |
Glass, Windshield
2022-06 → 2023-12
ended
|
ZN8 6FC (BASE2,HIGH2,ORA) B | — | |
| SU003-G0043 note |
Glass, Windshield
2024-09 → —
|
ZN8 6F (BASE,HIGH) D | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| SU003-08617 |
Stopper, Windshield Glass, NO.1
2024-09 → —
|
ZN8 D | — | |
| SU003-08617 |
Stopper, Windshield Glass, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-08617 |
Stopper, Windshield Glass, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08617 |
Stopper, Windshield Glass, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| SU003-08618 |
Stopper, Windshield Glass, NO.2
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08618 |
Stopper, Windshield Glass, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08618 |
Stopper, Windshield Glass, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-08618 |
Stopper, Windshield Glass, NO.2
2024-09 → —
|
ZN8 D | — | |
| 56117A — Dam, Window Glass Adhesive | ||||
| SU003-08620 note |
Dam, Window Glass Adhesive
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08620 note |
Dam, Window Glass Adhesive
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08620 note |
Dam, Window Glass Adhesive
2023-12 → —
|
ZN8 C | — | |
| SU003-08620 note |
Dam, Window Glass Adhesive
2024-09 → —
|
ZN8 D | — | |
| 56117E — Dam, Window Glass Adhesive | ||||
| SU003-08619 note |
Dam, Window Glass Adhesive
2024-09 → —
|
ZN8 D | — | |
| SU003-08619 note |
Dam, Window Glass Adhesive
2023-12 → —
|
ZN8 C | — | |
| SU003-08619 note |
Dam, Window Glass Adhesive
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08619 note |
Dam, Window Glass Adhesive
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 56119 — Seal, Windshield Glass | ||||
| SU003-08468 |
Seal, Windshield Glass
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08468 |
Seal, Windshield Glass
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08468 |
Seal, Windshield Glass
2023-12 → —
|
ZN8 C | — | |
| SU003-08468 |
Seal, Windshield Glass
2024-09 → —
|
ZN8 D | — | |
| 56119C — Seal, Windshield Glass | ||||
| SU003-01895 |
Seal, Windshield Glass
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-01895 |
Seal, Windshield Glass
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-01895 |
Seal, Windshield Glass
2023-12 → —
|
ZN8 C | — | |
| SU003-01895 |
Seal, Windshield Glass
2024-09 → —
|
ZN8 D | — | |
| 75533G — Moulding, Windshield, Outside | ||||
| SU003-08621 |
Moulding, Windshield, Outside
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-08621 |
Moulding, Windshield, Outside
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08621 |
Moulding, Windshield, Outside
2023-12 → —
|
ZN8 C | — | |
| SU003-08621 |
Moulding, Windshield, Outside
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
