Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

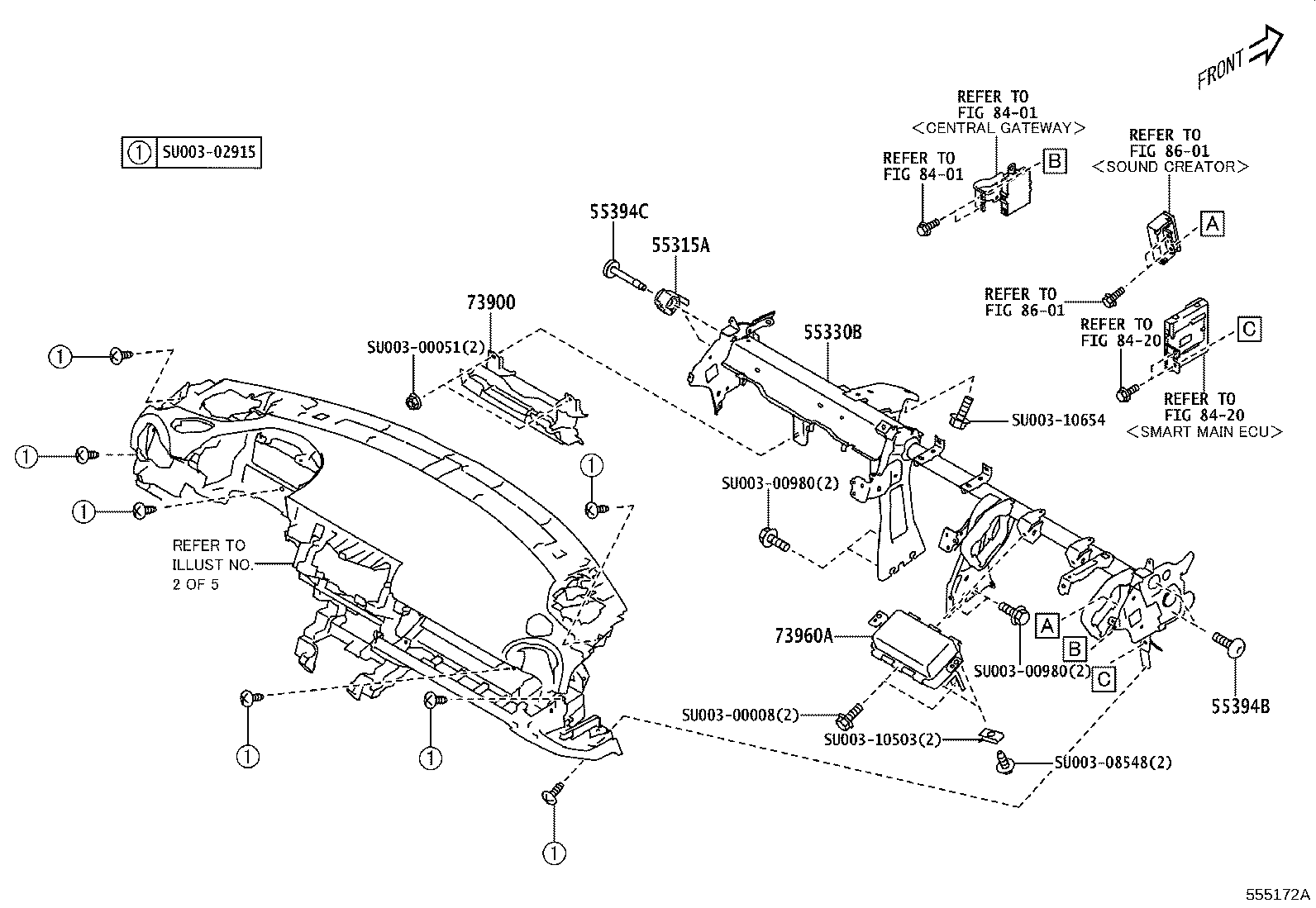

Exploded illustration 555172A 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8601 — not listed in this catalogue 8601 — not listed in this catalogue 8420 — not listed in this catalogue 8420 — not listed in this catalogue 55394B — BOLT, INSTRUMENT PANEL (4 parts) SU00300980 — not listed in this catalogue SU00300008 — not listed in this catalogue SU00310503 — not listed in this catalogue SU00308548 — not listed in this catalogue 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (22 parts) SU00300051 — not listed in this catalogue 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (22 parts) 55394C — BOLT, INSTRUMENT PANEL (4 parts) 55315A — SPACER, INSTRUMENT PANEL, NO.1 (4 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (4 parts) SU00300980 — not listed in this catalogue SU00310654 — not listed in this catalogue SU00302915 — not listed in this catalogue
555172A · 6 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
55315A — Spacer, Instrument Panel, NO.1
SU003-02991 Spacer, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-02991 Spacer, Instrument Panel, NO.1
2023-12 → —
ZN8 C —
SU003-02991 Spacer, Instrument Panel, NO.1
2024-09 → —
ZN8 D —
SU003-02991 Spacer, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 —
55330B — Reinforcement Assy, Instrument Panel
SU003-09821 Reinforcement Assy, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-09821 Reinforcement Assy, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-09821 Reinforcement Assy, Instrument Panel
2023-12 → —
ZN8 C —
SU003-09821 Reinforcement Assy, Instrument Panel
2024-09 → —
ZN8 D —
55394B — Bolt, Instrument Panel
SU003-02856 Bolt, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-02856 Bolt, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-02856 Bolt, Instrument Panel
2023-12 → —
ZN8 C —
SU003-02856 Bolt, Instrument Panel
2024-09 → —
ZN8 D —
55394C — Bolt, Instrument Panel
SU003-02855 Bolt, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-02855 Bolt, Instrument Panel
2024-09 → —
ZN8 D —
SU003-02855 Bolt, Instrument Panel
2023-12 → —
ZN8 C —
SU003-02855 Bolt, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10053 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10054 note Airbag Assy, Instrument Panel, Lower NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10051 Airbag Assy, Instrument Panel Passenger W/O Door
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-10051 Airbag Assy, Instrument Panel Passenger W/O Door
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10051 Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10051 note Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10051 Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-10052 note Airbag Assy, Instrument Panel Passenger W/O Door
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-10052 note Airbag Assy, Instrument Panel Passenger W/O Door
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-10052 note Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-10052 Airbag Assy, Instrument Panel Passenger W/O Door
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-10052 note Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 6F —
SU003-10052 Airbag Assy, Instrument Panel Passenger W/O Door
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
