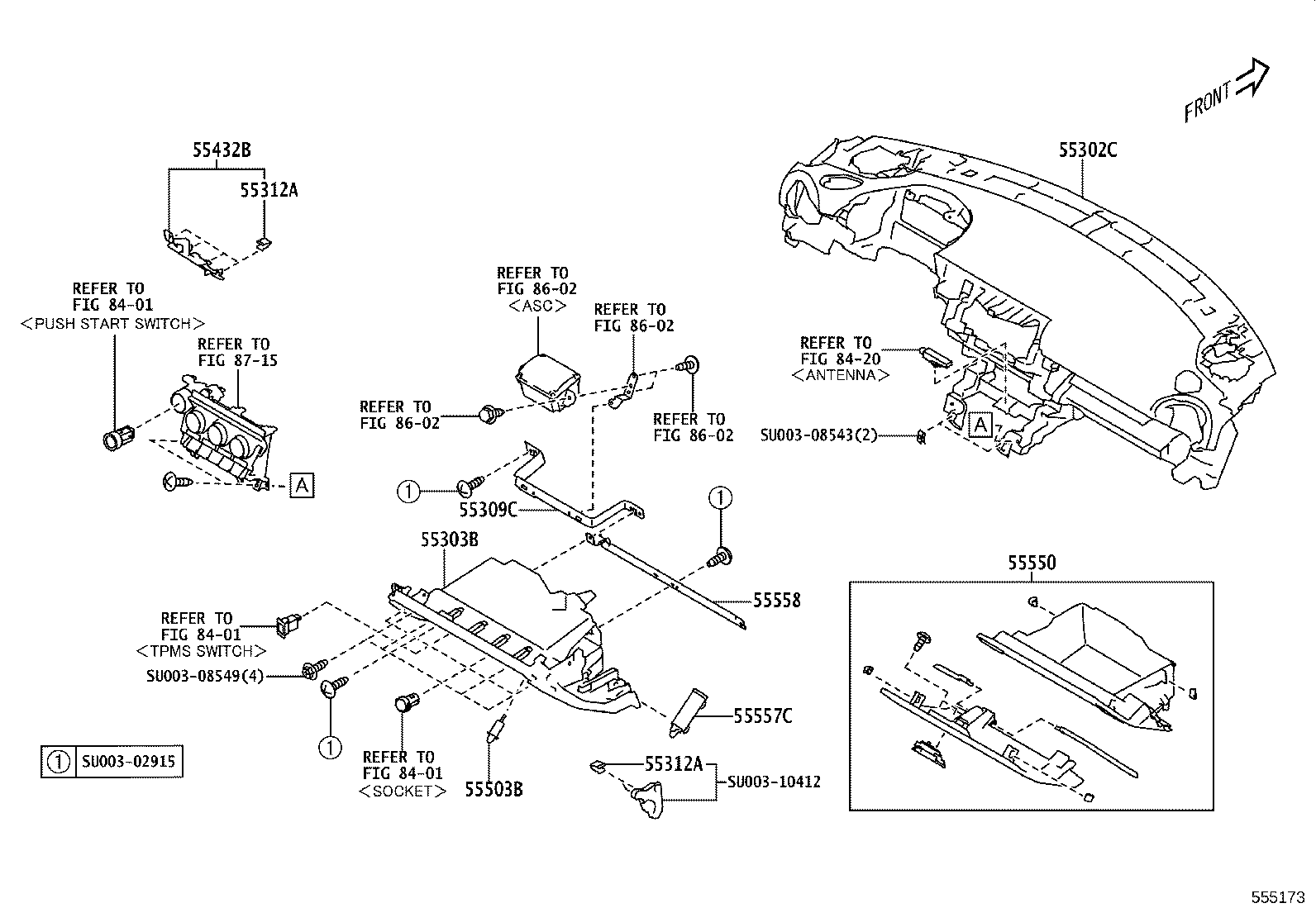

Exploded illustration 555173 55302C — PANEL SUB-ASSY, INSTRUMENT (5 parts) 8420 — not listed in this catalogue SU00308543 — not listed in this catalogue 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (4 parts) 8401 — not listed in this catalogue 8715 — not listed in this catalogue 8602 — not listed in this catalogue 8602 — not listed in this catalogue 55309C — REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER (4 parts) 55558 — REINFORCEMENT, GLOVE COMPARTMENT DOOR (4 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (28 parts) 55312A — CLIP, INSTRUMENT PANEL (4 parts) SU00310412 — not listed in this catalogue 55557C — DAMPER, GLOVE COMPARTMENT DOOR (4 parts) 55503B — CUSHION(FOR GLOVE COMPARTMENT) (5 parts) 8401 — not listed in this catalogue SU00308549 — not listed in this catalogue 8401 — not listed in this catalogue SU00302915 — not listed in this catalogue 8602 — not listed in this catalogue 8602 — not listed in this catalogue 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (4 parts)
555173 · 10 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
55302C — Panel Sub-assy, Instrument
SU003-09799 Panel Sub-assy, Instrument
2021-10 → 2022-05 ended
ZN8 —
SU003-11168 Panel Sub-assy, Instrument
2022-05 → 2022-06 ended
ZN8 —
SU003-11168 Panel Sub-assy, Instrument
2024-09 → —
ZN8 D —
SU003-11168 Panel Sub-assy, Instrument
2022-06 → 2023-12 ended
ZN8 B —
SU003-11168 Panel Sub-assy, Instrument
2023-12 → —
ZN8 C —
55303B — Panel Sub-assy, Instrument, Lower
SU003-09801 Panel Sub-assy, Instrument, Lower
2021-10 → 2022-06 ended
ZN8 —
SU003-09801 Panel Sub-assy, Instrument, Lower
2022-06 → 2023-12 ended
ZN8 B —
SU003-09801 Panel Sub-assy, Instrument, Lower
2023-12 → —
ZN8 C —
SU003-09801 Panel Sub-assy, Instrument, Lower
2024-09 → —
ZN8 D —
55309C — Reinforcement Sub-assy, Instrument Panel, Center
SU003-08724 Reinforcement Sub-assy, Instrument Panel, Center
2021-10 → 2022-06 ended
ZN8 —
SU003-08724 Reinforcement Sub-assy, Instrument Panel, Center
2022-06 → 2023-12 ended
ZN8 B —
SU003-08724 Reinforcement Sub-assy, Instrument Panel, Center
2023-12 → —
ZN8 C —
SU003-08724 Reinforcement Sub-assy, Instrument Panel, Center
2024-09 → —
ZN8 D —
55312A — Clip, Instrument Panel
SU003-02967 Clip, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-02967 Clip, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-02967 Clip, Instrument Panel
2023-12 → —
ZN8 C —
SU003-02967 Clip, Instrument Panel
2024-09 → —
ZN8 D —
55432B — Panel, Instrument Panel Finish, Lower
SU003-09805 Panel, Instrument Panel Finish, Lower
2021-10 → 2022-06 ended
ZN8 —
SU003-09805 Panel, Instrument Panel Finish, Lower
2024-09 → —
ZN8 D —
SU003-09805 Panel, Instrument Panel Finish, Lower
2023-12 → —
ZN8 C —
SU003-09805 Panel, Instrument Panel Finish, Lower
2022-06 → 2023-12 ended
ZN8 B —
55503B — Cushion(FOR GLOVE COMPARTMENT)
SU003-08470 Cushion(FOR GLOVE COMPARTMENT)
2021-10 → 2022-06 ended
ZN8 —
SU003-08470 Cushion(FOR GLOVE COMPARTMENT)
2022-06 → 2023-10 ended
ZN8 B —
SU003-11809 Cushion(FOR GLOVE COMPARTMENT)
2023-10 → 2023-12 ended
ZN8 B —
SU003-11809 Cushion(FOR GLOVE COMPARTMENT)
2023-12 → —
ZN8 C —
SU003-11809 Cushion(FOR GLOVE COMPARTMENT)
2024-09 → —
ZN8 D —
55550 — Door Assy, Glove Compartment
SU003-09812 Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 BASE2,HIGH2 —
SU003-09812 note Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 6F —
SU003-09812 note Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 6F —
SU003-09812 note Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 6F —
SU003-10704 note Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 6F —
SU003-10704 Door Assy, Glove Compartment
2021-10 → 2022-05 ended
ZN8 6FC (BASE,HIGH) —
SU003-11178 Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-11178 note Door Assy, Glove Compartment
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11178 note Door Assy, Glove Compartment
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11178 note Door Assy, Glove Compartment
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11178 Door Assy, Glove Compartment
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-11178 note Door Assy, Glove Compartment
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-11178 note Door Assy, Glove Compartment
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-11178 note Door Assy, Glove Compartment
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-11178 Door Assy, Glove Compartment
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-11178 note Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11178 note Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11178 note Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11178 Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11178 note Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 6F —
SU003-11178 note Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 6F —
SU003-11178 note Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 6F —
SU003-11180 Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11180 note Door Assy, Glove Compartment
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11180 Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-11180 note Door Assy, Glove Compartment
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-11180 note Door Assy, Glove Compartment
2022-05 → 2022-06 ended
ZN8 6F —
SU003-11180 note Door Assy, Glove Compartment
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
55557C — Damper, Glove Compartment Door
SU003-08471 Damper, Glove Compartment Door
2021-10 → 2022-06 ended
ZN8 —
SU003-08471 Damper, Glove Compartment Door
2022-06 → 2023-12 ended
ZN8 B —
SU003-08471 Damper, Glove Compartment Door
2023-12 → —
ZN8 C —
SU003-08471 Damper, Glove Compartment Door
2024-09 → —
ZN8 D —
55558 — Reinforcement, Glove Compartment Door
SU003-09818 Reinforcement, Glove Compartment Door
2021-10 → 2022-06 ended
ZN8 —
SU003-09818 Reinforcement, Glove Compartment Door
2022-06 → 2023-12 ended
ZN8 B —
SU003-09818 Reinforcement, Glove Compartment Door
2023-12 → —
ZN8 C —
SU003-09818 Reinforcement, Glove Compartment Door
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
