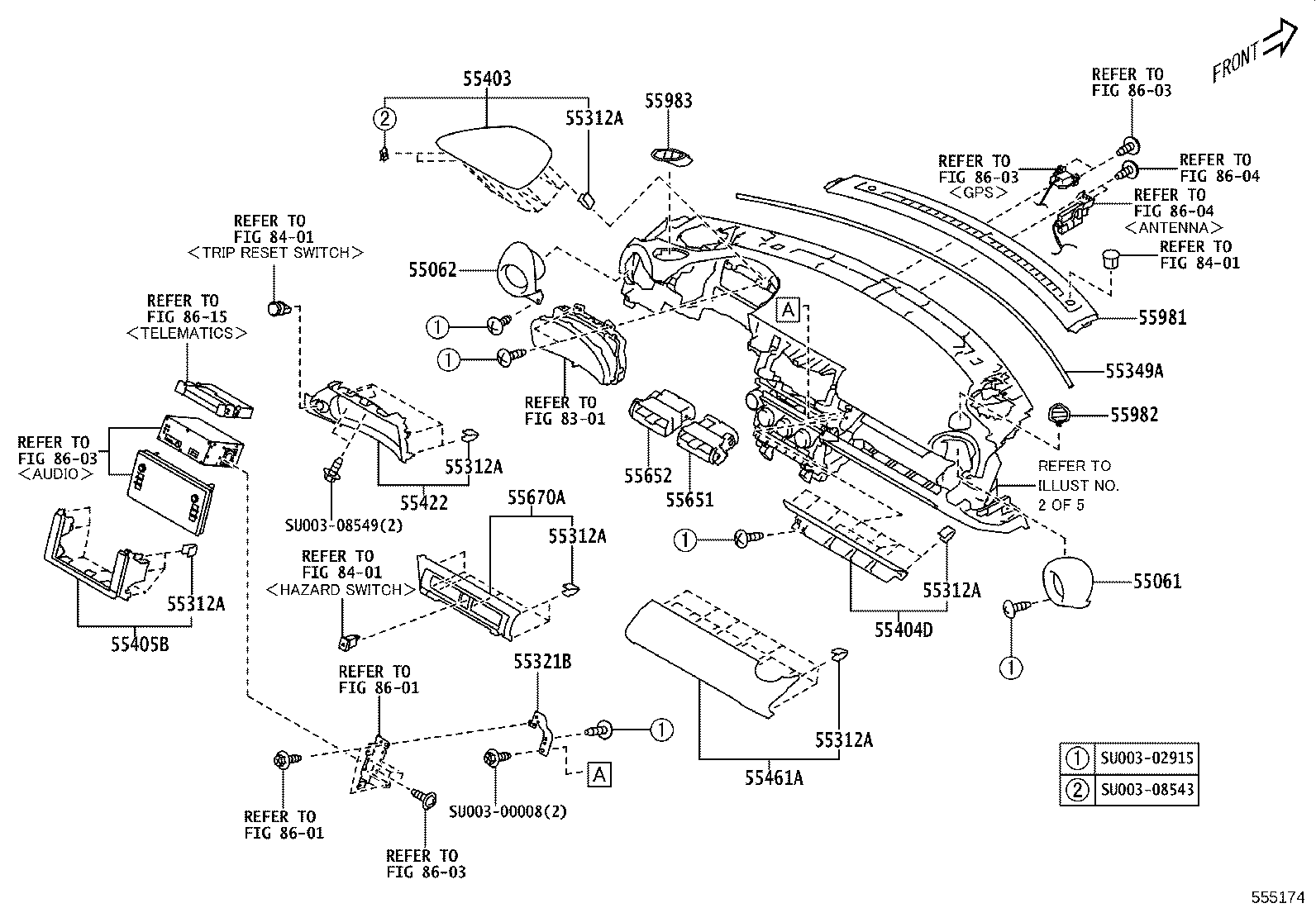

Exploded illustration 555174 8603 — not listed in this catalogue 8604 — not listed in this catalogue 8401 — not listed in this catalogue 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (4 parts) 55349A — CUSHION, INSTRUMENT PANEL (4 parts) 55982 — GARNISH, DEFROSTER NOZZLE, NO.2 (4 parts) 55061 — REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 (4 parts) 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (7 parts) 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55461A — ORNAMENT, INSTRUMENT PANEL (4 parts) 55651 — REGISTER, INSTRUMENT PANEL, NO.1 (4 parts) 55652 — REGISTER, INSTRUMENT PANEL, NO.2 (4 parts) 8301 — not listed in this catalogue 55062 — REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 (4 parts) 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55403 — HOOD SUB-ASSY, METER (8 parts) 55983 — GARNISH, DEFROSTER NOZZLE, NO.3 (4 parts) 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (4 parts) 8401 — not listed in this catalogue SU00300008 — not listed in this catalogue 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (4 parts) 8603 — not listed in this catalogue 8615 — not listed in this catalogue 8401 — not listed in this catalogue SU00308549 — not listed in this catalogue 55312A — CLIP, INSTRUMENT PANEL (4 parts) 55422 — ORNAMENT, INSTRUMENT PANEL METER, UPPER (4 parts) SU00302915 — not listed in this catalogue SU00308543 — not listed in this catalogue 8604 — not listed in this catalogue 8603 — not listed in this catalogue 8601 — not listed in this catalogue 8601 — not listed in this catalogue 55321B — BRACKET, INSTRUMENT PANEL, NO.1 (40 parts) 8603 — not listed in this catalogue
555174 · 21 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
55061 — Register Sub-assy, Instrument Panel, NO.1
SU003-09809 Register Sub-assy, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09809 Register Sub-assy, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-09809 Register Sub-assy, Instrument Panel, NO.1
2024-09 → —
ZN8 D —
SU003-09809 Register Sub-assy, Instrument Panel, NO.1
2023-12 → —
ZN8 C —
55062 — Register Sub-assy, Instrument Panel, N0.2
SU003-09808 Register Sub-assy, Instrument Panel, N0.2
2021-10 → 2022-06 ended
ZN8 —
SU003-09808 Register Sub-assy, Instrument Panel, N0.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-09808 Register Sub-assy, Instrument Panel, N0.2
2023-12 → —
ZN8 C —
SU003-09808 Register Sub-assy, Instrument Panel, N0.2
2024-09 → —
ZN8 D —
55312A — Clip, Instrument Panel
SU003-02967 Clip, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-02967 Clip, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-02967 Clip, Instrument Panel
2023-12 → —
ZN8 C —
SU003-02967 Clip, Instrument Panel
2024-09 → —
ZN8 D —
55321B — Bracket, Instrument Panel, NO.1
SU003-08722 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08722 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08722 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08722 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08722 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08722 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08722 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08722 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08722 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08722 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-08722 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08722 Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6FC B;ZN8 6F +1 —
SU003-08722 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08722 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08722 Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-08722 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08722 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08722 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08722 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08722 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6FC —
SU003-08723 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08723 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08723 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08723 Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-08723 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08723 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08723 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08723 note Bracket, Instrument Panel, NO.1
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-08723 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08723 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-08723 note Bracket, Instrument Panel, NO.1
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-08723 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08723 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08723 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-08723 note Bracket, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 6FC B;ZN8 6F +1 —
SU003-08723 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08723 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08723 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08723 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6F —
SU003-08723 note Bracket, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 6FC —
55349A — Cushion, Instrument Panel
SU003-10672 Cushion, Instrument Panel
2024-09 → —
ZN8 D —
SU003-10672 Cushion, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-10672 Cushion, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-10672 Cushion, Instrument Panel
2023-12 → —
ZN8 C —
55403 — Hood Sub-assy, Meter
SU003-09813 Hood Sub-assy, Meter
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09813 Hood Sub-assy, Meter
2023-12 → —
ZN8 BASE C —
SU003-09813 Hood Sub-assy, Meter
2024-09 → —
ZN8 BASE D —
SU003-09813 Hood Sub-assy, Meter
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-09814 Hood Sub-assy, Meter
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-09814 Hood Sub-assy, Meter
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-09814 Hood Sub-assy, Meter
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09814 Hood Sub-assy, Meter
2024-09 → —
ZN8 (GRA,HIGH) D —
55404D — Panel Sub-assy, Instrument Cluster Finish
SU003-09806 Panel Sub-assy, Instrument Cluster Finish
2021-10 → 2022-06 ended
ZN8 —
SU003-09806 Panel Sub-assy, Instrument Cluster Finish
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-09806 Panel Sub-assy, Instrument Cluster Finish
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-09806 Panel Sub-assy, Instrument Cluster Finish
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-11017 Panel Sub-assy, Instrument Cluster Finish
2023-12 → —
ZN8 ORB —
SU003-11017 Panel Sub-assy, Instrument Cluster Finish
2024-09 → —
ZN8 GRA —
SU003-11017 Panel Sub-assy, Instrument Cluster Finish
2022-06 → 2023-12 ended
ZN8 ORA —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
SU003-09803 Panel Sub-assy, Instrument Cluster Finish, Center
2021-10 → 2022-06 ended
ZN8 —
SU003-09803 Panel Sub-assy, Instrument Cluster Finish, Center
2022-06 → 2023-12 ended
ZN8 B —
SU003-09803 Panel Sub-assy, Instrument Cluster Finish, Center
2023-12 → —
ZN8 C —
SU003-09803 Panel Sub-assy, Instrument Cluster Finish, Center
2024-09 → —
ZN8 D —
55422 — Ornament, Instrument Panel Meter, Upper
SU003-09815 Ornament, Instrument Panel Meter, Upper
2021-10 → 2022-06 ended
ZN8 —
SU003-09815 Ornament, Instrument Panel Meter, Upper
2022-06 → 2023-12 ended
ZN8 B —
SU003-09815 Ornament, Instrument Panel Meter, Upper
2023-12 → —
ZN8 C —
SU003-09815 Ornament, Instrument Panel Meter, Upper
2024-09 → —
ZN8 D —
55461A — Ornament, Instrument Panel
SU003-09807 Ornament, Instrument Panel
2024-09 → —
ZN8 D —
SU003-09807 Ornament, Instrument Panel
2022-06 → 2023-12 ended
ZN8 B —
SU003-09807 Ornament, Instrument Panel
2021-10 → 2022-06 ended
ZN8 —
SU003-09807 Ornament, Instrument Panel
2023-12 → —
ZN8 C —
55651 — Register, Instrument Panel, NO.1
SU003-08705 Register, Instrument Panel, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-08705 Register, Instrument Panel, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-08705 Register, Instrument Panel, NO.1
2023-12 → —
ZN8 C —
SU003-08705 Register, Instrument Panel, NO.1
2024-09 → —
ZN8 D —
55652 — Register, Instrument Panel, NO.2
SU003-08706 Register, Instrument Panel, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-08706 Register, Instrument Panel, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-08706 Register, Instrument Panel, NO.2
2023-12 → —
ZN8 C —
SU003-08706 Register, Instrument Panel, NO.2
2024-09 → —
ZN8 D —
55670A — Register Assy, Instrument Panel, Center
SU003-09802 Register Assy, Instrument Panel, Center
2024-09 → —
ZN8 D —
SU003-09802 Register Assy, Instrument Panel, Center
2023-12 → —
ZN8 C —
SU003-09802 Register Assy, Instrument Panel, Center
2022-06 → 2023-12 ended
ZN8 B —
SU003-09802 Register Assy, Instrument Panel, Center
2021-10 → 2022-06 ended
ZN8 —
55981 — Garnish, Defroster Nozzle, NO.1
SU003-09811 Garnish, Defroster Nozzle, NO.1
2021-10 → 2022-06 ended
ZN8 —
SU003-09811 Garnish, Defroster Nozzle, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09811 Garnish, Defroster Nozzle, NO.1
2023-12 → —
ZN8 C —
SU003-09811 Garnish, Defroster Nozzle, NO.1
2024-09 → —
ZN8 D —
55982 — Garnish, Defroster Nozzle, NO.2
SU003-08709 Garnish, Defroster Nozzle, NO.2
2021-10 → 2022-06 ended
ZN8 —
SU003-08709 Garnish, Defroster Nozzle, NO.2
2022-06 → 2023-12 ended
ZN8 B —
SU003-08709 Garnish, Defroster Nozzle, NO.2
2023-12 → —
ZN8 C —
SU003-08709 Garnish, Defroster Nozzle, NO.2
2024-09 → —
ZN8 D —
55983 — Garnish, Defroster Nozzle, NO.3
SU003-08710 Garnish, Defroster Nozzle, NO.3
2021-10 → 2022-06 ended
ZN8 —
SU003-08710 Garnish, Defroster Nozzle, NO.3
2022-06 → 2023-12 ended
ZN8 B —
SU003-08710 Garnish, Defroster Nozzle, NO.3
2023-12 → —
ZN8 C —
SU003-08710 Garnish, Defroster Nozzle, NO.3
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
