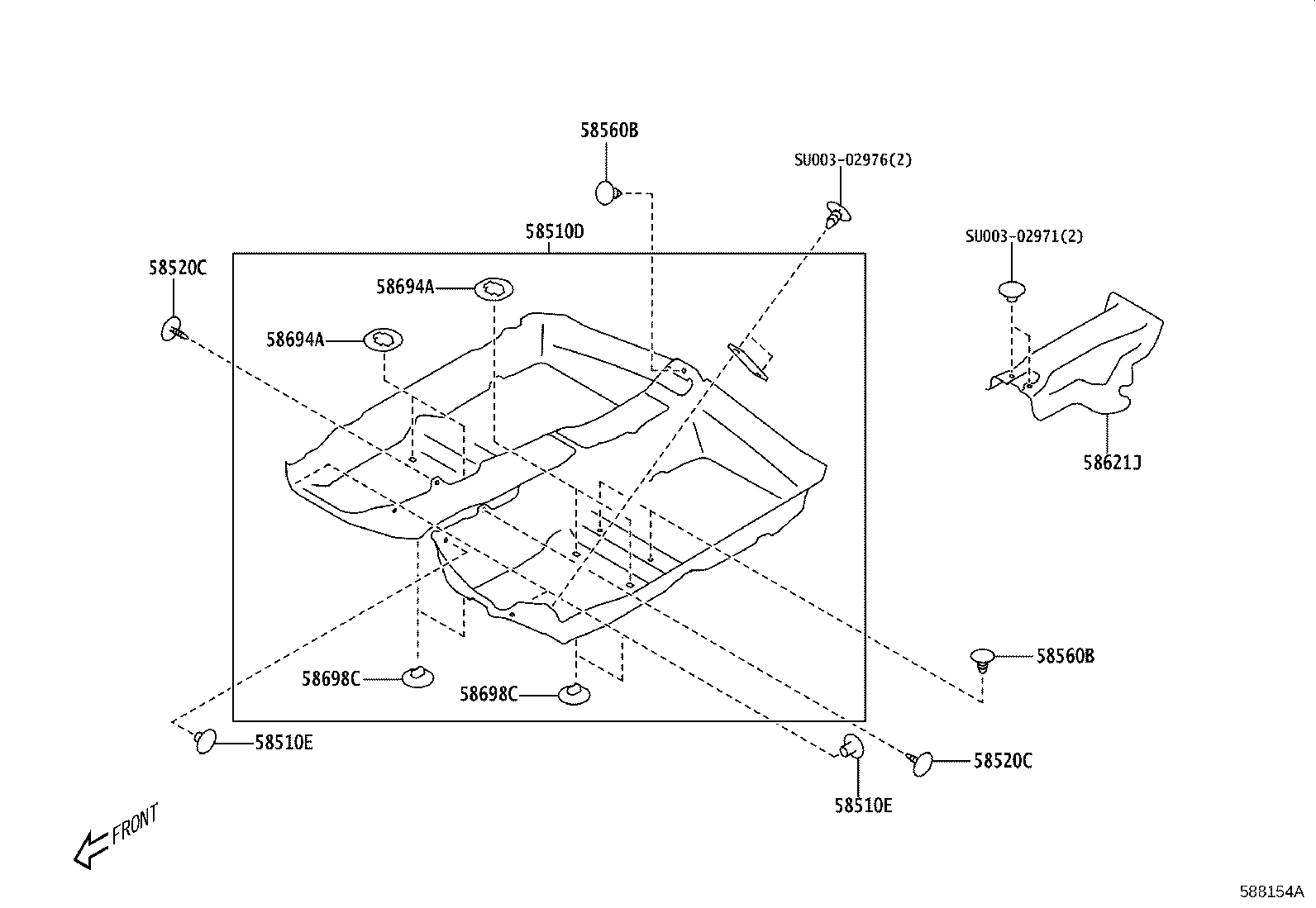

Exploded illustration 588154A 58621J — SILENCER, CENTER CONSOLE, NO.1 (4 parts) 58560B — CLIP(FOR FLOOR CARPET, REAR) (4 parts) 58560B — CLIP(FOR FLOOR CARPET, REAR) (4 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 58698C — PLATE, MAT SET, LOWER (4 parts) 58510E — RETAINER, FLOOR CARPET (4 parts) 58510E — RETAINER, FLOOR CARPET (4 parts) 58698C — PLATE, MAT SET, LOWER (4 parts) 58510D — CARPET ASSY, FLOOR, FRONT (72 parts) 58694A — PLATE, MAT SET, UPPER (4 parts) 58694A — PLATE, MAT SET, UPPER (4 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (4 parts) SU00302971 — not listed in this catalogue SU00302976 — not listed in this catalogue
588154A · 12 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
58510D — Carpet Assy, Floor, Front
SU003-09584 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC (BASE,BASE2) —
SU003-09584 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC (BASE,BASE2) —
SU003-09584 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6FC (BASE,BASE2) B —
SU003-09585 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6FC (BASE,BASE2) B —
SU003-09585 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6FC (HIGH,HIGH2,ORA) B —
SU003-09585 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC (HIGH,HIGH2) —
SU003-09585 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC (BASE,BASE2) —
SU003-09585 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC (BASE,BASE2) —
SU003-09586 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09586 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09586 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6F BASE B —
SU003-09587 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6F (HIGH,ORA) B —
SU003-09587 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6F BASE B —
SU003-09587 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09587 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09587 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09588 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6FC HIGH —
SU003-09588 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6FC HIGH B —
SU003-09589 note Carpet Assy, Floor, Front
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09589 note Carpet Assy, Floor, Front
2022-06 → 2023-02 ended
ZN8 6F HIGH B —
SU003-11374 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11374 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11374 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11374 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11374 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11374 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11374 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11374 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11374 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6FC (BASE,BASE2) B —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6FC (BASE,BASE2) B —
SU003-11375 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6FC (HIGH,HIGH2,ORA) B —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC BASE C —
SU003-11375 Carpet Assy, Floor, Front
2023-12 → —
ZN8 6FC (HIGH,ORB) C —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC BASE D —
SU003-11375 Carpet Assy, Floor, Front
2024-09 → —
ZN8 6FC (GRA,HIGH) D —
SU003-11376 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11376 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6F BASE B —
SU003-11376 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11376 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11376 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11376 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11376 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11376 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11376 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F (GRA,HIGH) D —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2024-09 → —
ZN8 6F BASE D —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11377 Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F (HIGH,ORB) C —
SU003-11377 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6F BASE B —
SU003-11377 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6F (HIGH,ORA) B —
SU003-11377 note Carpet Assy, Floor, Front
2023-12 → —
ZN8 6F BASE C —
SU003-11384 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6FC HIGH B —
SU003-11385 note Carpet Assy, Floor, Front
2023-03 → 2023-12 ended
ZN8 6F HIGH B —
58510E — Retainer, Floor Carpet
SU003-03328 note Retainer, Floor Carpet
2021-10 → 2022-06 ended
ZN8 —
SU003-03328 note Retainer, Floor Carpet
2022-06 → 2023-12 ended
ZN8 B —
SU003-03328 note Retainer, Floor Carpet
2023-12 → —
ZN8 C —
SU003-03328 note Retainer, Floor Carpet
2024-09 → —
ZN8 D —
58520C — Clip(FOR FRONT FLOOR CARPET)
SU003-02972 Clip(FOR FRONT FLOOR CARPET)
2024-09 → —
ZN8 D —
SU003-02972 Clip(FOR FRONT FLOOR CARPET)
2023-12 → —
ZN8 C —
SU003-02972 Clip(FOR FRONT FLOOR CARPET)
2021-10 → 2022-06 ended
ZN8 —
SU003-02972 Clip(FOR FRONT FLOOR CARPET)
2022-06 → 2023-12 ended
ZN8 B —
58560B — Clip(FOR FLOOR CARPET, REAR)
SU003-03344 Clip(FOR FLOOR CARPET, REAR)
2021-10 → 2022-06 ended
ZN8 —
SU003-03344 Clip(FOR FLOOR CARPET, REAR)
2022-06 → 2023-12 ended
ZN8 B —
SU003-03344 Clip(FOR FLOOR CARPET, REAR)
2023-12 → —
ZN8 C —
SU003-03344 Clip(FOR FLOOR CARPET, REAR)
2024-09 → —
ZN8 D —
58621J — Silencer, Center Console, NO.1
SU003-09427 Silencer, Center Console, NO.1
2024-09 → —
ZN8 D —
SU003-09427 Silencer, Center Console, NO.1
2023-12 → —
ZN8 C —
SU003-09427 Silencer, Center Console, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09427 Silencer, Center Console, NO.1
2021-10 → 2022-06 ended
ZN8 —
58694A — Plate, Mat Set, Upper
SU003-09428 Plate, Mat Set, Upper
2021-10 → 2022-06 ended
ZN8 —
SU003-09428 Plate, Mat Set, Upper
2022-06 → 2023-12 ended
ZN8 B —
SU003-09428 Plate, Mat Set, Upper
2023-12 → —
ZN8 C —
SU003-09428 Plate, Mat Set, Upper
2024-09 → —
ZN8 D —
58698C — Plate, Mat Set, Lower
SU003-09429 Plate, Mat Set, Lower
2021-10 → 2022-06 ended
ZN8 —
SU003-09429 Plate, Mat Set, Lower
2022-06 → 2023-12 ended
ZN8 B —
SU003-09429 Plate, Mat Set, Lower
2023-12 → —
ZN8 C —
SU003-09429 Plate, Mat Set, Lower
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
