Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

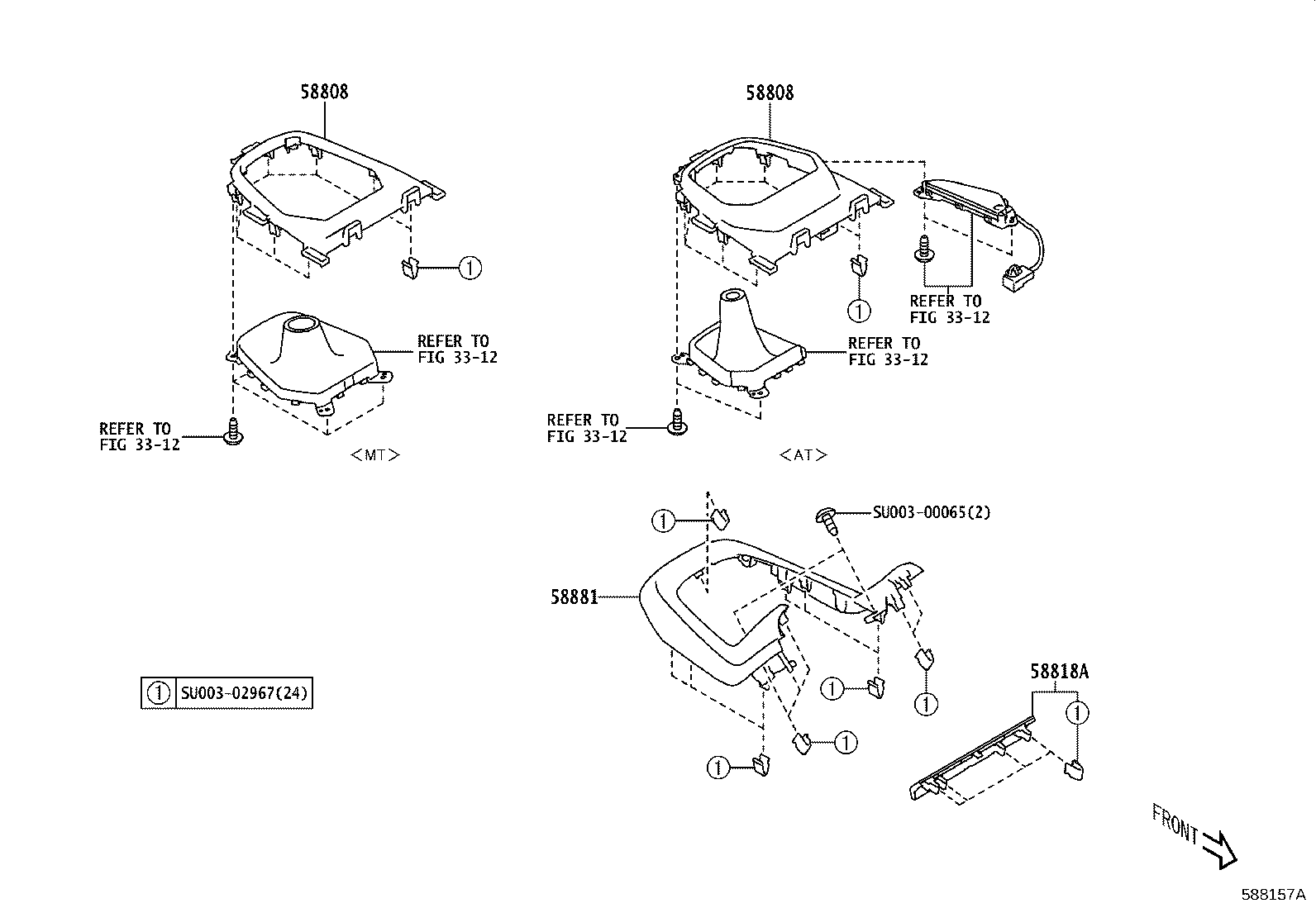

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58808 — Cover Sub-assy, Shifting Hole | ||||
| SU003-08798 |
Cover Sub-assy, Shifting Hole
2022-06 → 2023-12
ended
|
ZN8 6F B | — | |
| SU003-08798 |
Cover Sub-assy, Shifting Hole
2023-12 → —
|
ZN8 6F C | — | |
| SU003-08798 |
Cover Sub-assy, Shifting Hole
2024-09 → —
|
ZN8 6F D | — | |
| SU003-08798 |
Cover Sub-assy, Shifting Hole
2021-10 → 2022-06
ended
|
ZN8 6F | — | |
| SU003-08799 |
Cover Sub-assy, Shifting Hole
2021-10 → 2022-06
ended
|
ZN8 6FC | — | |
| SU003-08799 |
Cover Sub-assy, Shifting Hole
2022-06 → 2023-12
ended
|
ZN8 6FC B | — | |
| SU003-08799 |
Cover Sub-assy, Shifting Hole
2023-12 → —
|
ZN8 6FC C | — | |
| SU003-08799 |
Cover Sub-assy, Shifting Hole
2024-09 → —
|
ZN8 6FC D | — | |
| 58818A — Cover, Console Box, FR | ||||
| SU003-08804 |
Cover, Console Box, FR
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-08804 |
Cover, Console Box, FR
2024-09 → —
|
ZN8 D | — | |
| SU003-08804 |
Cover, Console Box, FR
2023-12 → —
|
ZN8 C | — | |
| SU003-08804 |
Cover, Console Box, FR
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 58881 — Cover, Shifting Hole | ||||
| SU003-09697 |
Cover, Shifting Hole
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09697 |
Cover, Shifting Hole
2022-06 → 2023-12
ended
|
ZN8 (BASE,BASE2,HIGH,HIGH2) B | — | |
| SU003-09697 |
Cover, Shifting Hole
2023-12 → —
|
ZN8 (BASE,HIGH) C | — | |
| SU003-09697 |
Cover, Shifting Hole
2024-09 → —
|
ZN8 (BASE,HIGH) D | — | |
| SU003-11006 |
Cover, Shifting Hole
2022-06 → 2023-12
ended
|
ZN8 ORA | — | |
| SU003-11006 |
Cover, Shifting Hole
2023-12 → —
|
ZN8 ORB | — | |
| SU003-11006 |
Cover, Shifting Hole
2024-09 → —
|
ZN8 GRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
