Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

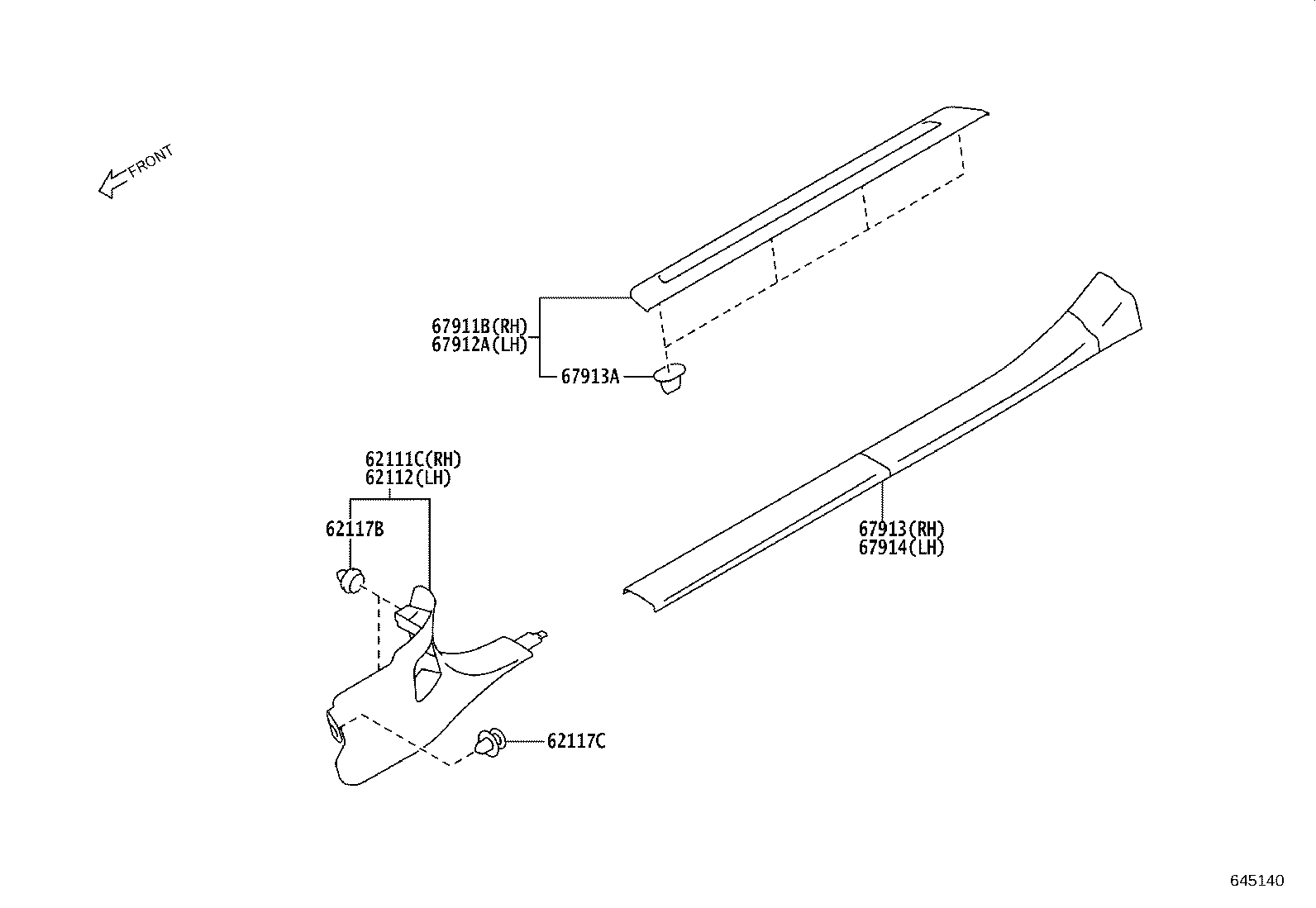

Exploded illustration 645140 62117B — CLIP, NO.1(FOR COWL SIDE TRIM) (4 parts) 62117C — CLIP, NO.2(FOR COWL SIDE TRIM) (4 parts) 62111C — BOARD, COWL SIDE TRIM, RH (4 parts) 62112 — BOARD, COWL SIDE TRIM, LH (4 parts) 67913A — CLIP(FOR SCUFF PLATE) (4 parts) 67911B — PLATE, FRONT DOOR SCUFF, OUTSIDE, RH (8 parts) 67912A — PLATE, FRONT DOOR SCUFF, OUTSIDE LH (8 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (8 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (8 parts)
645140 · 9 callouts Full size ↗
52 parts on this figure
Part number Description Fitment Price
62111C — Board, Cowl Side Trim, RH
SU003-09702 note Board, Cowl Side Trim, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09702 note Board, Cowl Side Trim, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-09702 note Board, Cowl Side Trim, RH
2024-09 → —
ZN8 D —
SU003-09702 note Board, Cowl Side Trim, RH
2023-12 → —
ZN8 C —
62112 — Board, Cowl Side Trim, LH
SU003-09703 note Board, Cowl Side Trim, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-09703 note Board, Cowl Side Trim, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09703 note Board, Cowl Side Trim, LH
2023-12 → —
ZN8 C —
SU003-09703 note Board, Cowl Side Trim, LH
2024-09 → —
ZN8 D —
62117B — Clip, NO.1(FOR COWL SIDE TRIM)
SU003-02968 Clip, NO.1(FOR COWL SIDE TRIM)
2021-10 → 2022-06 ended
ZN8 —
SU003-02968 Clip, NO.1(FOR COWL SIDE TRIM)
2022-06 → 2023-12 ended
ZN8 B —
SU003-02968 Clip, NO.1(FOR COWL SIDE TRIM)
2023-12 → —
ZN8 C —
SU003-02968 Clip, NO.1(FOR COWL SIDE TRIM)
2024-09 → —
ZN8 D —
62117C — Clip, NO.2(FOR COWL SIDE TRIM)
SU003-02986 Clip, NO.2(FOR COWL SIDE TRIM)
2024-09 → —
ZN8 D —
SU003-02986 Clip, NO.2(FOR COWL SIDE TRIM)
2023-12 → —
ZN8 C —
SU003-02986 Clip, NO.2(FOR COWL SIDE TRIM)
2022-06 → 2023-12 ended
ZN8 B —
SU003-02986 Clip, NO.2(FOR COWL SIDE TRIM)
2021-10 → 2022-06 ended
ZN8 —
67911B — Plate, Front Door Scuff, Outside, RH
SU003-09398 note Plate, Front Door Scuff, Outside, RH
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-09398 note Plate, Front Door Scuff, Outside, RH
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09398 note Plate, Front Door Scuff, Outside, RH
2023-12 → —
ZN8 BASE C —
SU003-09398 note Plate, Front Door Scuff, Outside, RH
2024-09 → —
ZN8 BASE D —
SU003-09400 note Plate, Front Door Scuff, Outside, RH
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-09400 note Plate, Front Door Scuff, Outside, RH
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-09400 note Plate, Front Door Scuff, Outside, RH
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09400 note Plate, Front Door Scuff, Outside, RH
2024-09 → —
ZN8 (GRA,HIGH) D —
67912A — Plate, Front Door Scuff, Outside LH
SU003-09399 note Plate, Front Door Scuff, Outside LH
2024-09 → —
ZN8 BASE D —
SU003-09399 note Plate, Front Door Scuff, Outside LH
2023-12 → —
ZN8 BASE C —
SU003-09399 note Plate, Front Door Scuff, Outside LH
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09399 note Plate, Front Door Scuff, Outside LH
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-09401 note Plate, Front Door Scuff, Outside LH
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-09401 note Plate, Front Door Scuff, Outside LH
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09401 note Plate, Front Door Scuff, Outside LH
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-09401 note Plate, Front Door Scuff, Outside LH
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
67913 — Plate, Front Door Scuff, RH
SU003-09394 note Plate, Front Door Scuff, RH
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-09394 note Plate, Front Door Scuff, RH
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09394 note Plate, Front Door Scuff, RH
2024-09 → —
ZN8 BASE D —
SU003-09394 note Plate, Front Door Scuff, RH
2023-12 → —
ZN8 BASE C —
SU003-09396 note Plate, Front Door Scuff, RH
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-09396 note Plate, Front Door Scuff, RH
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09396 note Plate, Front Door Scuff, RH
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-09396 note Plate, Front Door Scuff, RH
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
67913A — Clip(FOR SCUFF PLATE)
SU003-03261 Clip(FOR SCUFF PLATE)
2021-10 → 2022-06 ended
ZN8 —
SU003-03261 Clip(FOR SCUFF PLATE)
2022-06 → 2023-12 ended
ZN8 B —
SU003-03261 Clip(FOR SCUFF PLATE)
2023-12 → —
ZN8 C —
SU003-03261 Clip(FOR SCUFF PLATE)
2024-09 → —
ZN8 D —
67914 — Plate, Front Door Scuff, LH
SU003-09395 note Plate, Front Door Scuff, LH
2021-10 → 2022-06 ended
ZN8 BASE,BASE2 —
SU003-09395 note Plate, Front Door Scuff, LH
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09395 note Plate, Front Door Scuff, LH
2023-12 → —
ZN8 BASE C —
SU003-09395 note Plate, Front Door Scuff, LH
2024-09 → —
ZN8 BASE D —
SU003-09397 note Plate, Front Door Scuff, LH
2021-10 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-09397 note Plate, Front Door Scuff, LH
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
SU003-09397 note Plate, Front Door Scuff, LH
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09397 note Plate, Front Door Scuff, LH
2024-09 → —
ZN8 (GRA,HIGH) D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
