Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10

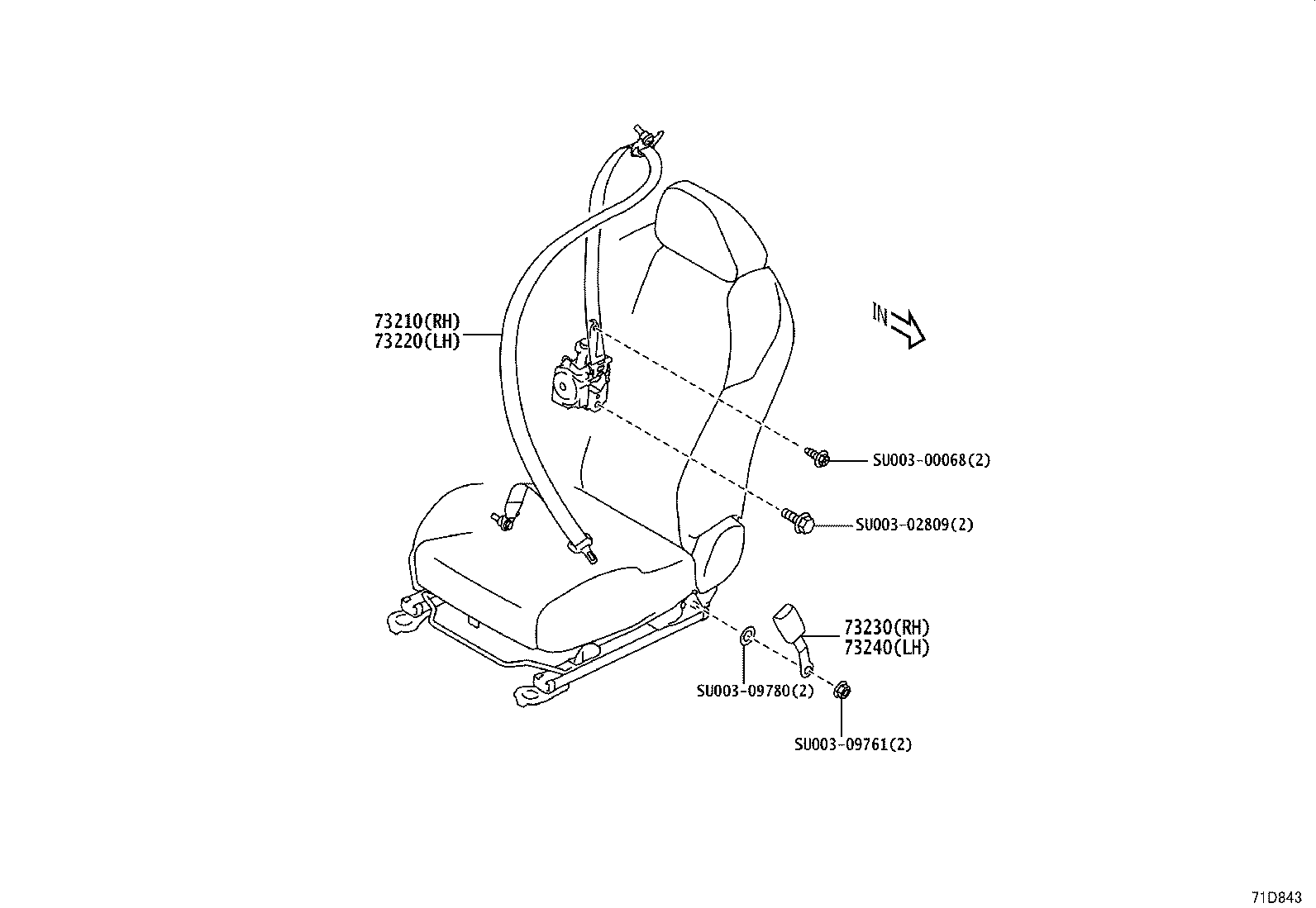

Exploded illustration 71D843 73210 — BELT ASSY, FRONT SEAT OUTER, RH (51 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (51 parts) SU00300068 — not listed in this catalogue SU00302809 — not listed in this catalogue 73230 — BELT ASSY, FRONT SEAT INNER, RH (7 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (33 parts) SU00309780 — not listed in this catalogue SU00309761 — not listed in this catalogue
71D843 · 4 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
73210 — Belt Assy, Front Seat Outer, RH
SU003-09792 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09792 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 BASE2,HIGH2 —
SU003-09792 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09792 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09794 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 6FC (BASE,HIGH) —
SU003-09794 note Belt Assy, Front Seat Outer, RH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 (BASE2,HIGH2) A —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 (BASE2,HIGH2) B —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10851 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10853 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10853 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10853 note Belt Assy, Front Seat Outer, RH
2022-06 → 2022-08 ended
ZN8 6FC (BASE,HIGH) B —
SU003-10853 note Belt Assy, Front Seat Outer, RH
2021-12 → 2022-08 ended
ZN8 6FC (BASE,HIGH) A —
SU003-11183 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11183 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11183 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11183 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11185 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11185 note Belt Assy, Front Seat Outer, RH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11269 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11269 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11269 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11269 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11271 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11271 note Belt Assy, Front Seat Outer, RH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-12 → 2024-08 ended
ZN8 6FC C;ZN8 6F +1 —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11799 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11801 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11801 note Belt Assy, Front Seat Outer, RH
2023-10 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11801 note Belt Assy, Front Seat Outer, RH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-08 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12172 note Belt Assy, Front Seat Outer, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12174 note Belt Assy, Front Seat Outer, RH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12174 note Belt Assy, Front Seat Outer, RH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
73220 — Belt Assy, Front Seat Outer, LH
SU003-09793 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09793 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09793 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 BASE2,HIGH2 —
SU003-09793 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-09795 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 6FC (BASE,HIGH) —
SU003-09795 note Belt Assy, Front Seat Outer, LH
2021-10 → 2021-12 ended
ZN8 6F —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 (BASE2,HIGH2) A —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 (BASE2,HIGH2) B —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10852 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10854 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 6F A —
SU003-10854 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 6F B —
SU003-10854 note Belt Assy, Front Seat Outer, LH
2022-06 → 2022-08 ended
ZN8 6FC (BASE,HIGH) B —
SU003-10854 note Belt Assy, Front Seat Outer, LH
2021-12 → 2022-08 ended
ZN8 6FC (BASE,HIGH) A —
SU003-11184 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11184 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11184 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11184 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11186 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 6F (BASE,HIGH) B —
SU003-11186 note Belt Assy, Front Seat Outer, LH
2022-08 → 2023-05 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11270 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11270 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11270 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11270 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11272 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11272 note Belt Assy, Front Seat Outer, LH
2023-05 → 2023-10 ended
ZN8 6F (BASE,HIGH) B —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-12 → 2024-08 ended
ZN8 6FC C;ZN8 6F +1 —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11800 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11802 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11802 note Belt Assy, Front Seat Outer, LH
2023-12 → 2024-08 ended
ZN8 6F (BASE,HIGH) C —
SU003-11802 note Belt Assy, Front Seat Outer, LH
2023-10 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12173 note Belt Assy, Front Seat Outer, LH
2024-08 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-12175 note Belt Assy, Front Seat Outer, LH
2024-08 → —
ZN8 6F (BASE,HIGH) C —
SU003-12175 note Belt Assy, Front Seat Outer, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
73230 — Belt Assy, Front Seat Inner, RH
SU003-08612 note Belt Assy, Front Seat Inner, RH
2021-10 → 2022-05 ended
ZN8 —
SU003-11165 note Belt Assy, Front Seat Inner, RH
2022-05 → 2022-06 ended
ZN8 —
SU003-11165 note Belt Assy, Front Seat Inner, RH
2022-06 → 2023-03 ended
ZN8 B —
SU003-11275 note Belt Assy, Front Seat Inner, RH
2023-12 → 2024-02 ended
ZN8 C —
SU003-11275 note Belt Assy, Front Seat Inner, RH
2023-03 → 2023-12 ended
ZN8 B —
SU003-11806 note Belt Assy, Front Seat Inner, RH
2024-02 → —
ZN8 C —
SU003-11806 note Belt Assy, Front Seat Inner, RH
2024-09 → —
ZN8 D —
73240 — Belt Assy, Front Seat Inner, LH
SU003-08611 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 6FC (BASE,HIGH) —
SU003-08611 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 6F —
SU003-09796 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 BASE2,HIGH2 —
SU003-09796 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 6F —
SU003-09796 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 6F —
SU003-09796 note Belt Assy, Front Seat Inner, LH
2021-10 → 2022-04 ended
ZN8 6F —
SU003-11039 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 6F —
SU003-11039 note Belt Assy, Front Seat Inner, LH
2023-12 → 2024-02 ended
ZN8 6F (BASE,HIGH) C —
SU003-11039 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11039 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-11039 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2023-12 → 2024-02 ended
ZN8 6F (BASE,HIGH) C —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2023-12 → 2024-02 ended
ZN8 6FC C;ZN8 6F +1 —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2023-12 → 2024-02 ended
ZN8 6F (BASE,HIGH) C —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2023-12 → 2024-02 ended
ZN8 6F (BASE,HIGH) C —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 6F —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 6F —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 6F —
SU003-11040 note Belt Assy, Front Seat Inner, LH
2022-04 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-11805 note Belt Assy, Front Seat Inner, LH
2024-02 → —
ZN8 6F (BASE,HIGH) C —
SU003-11805 note Belt Assy, Front Seat Inner, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-02 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-02 → —
ZN8 6F (BASE,HIGH) C —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-02 → —
ZN8 6F (BASE,HIGH) C —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-02 → —
ZN8 6F (BASE,HIGH) C —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-09 → —
ZN8 GRA;ZN8 6FC (BASE,HIGH) +1 —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
SU003-11808 note Belt Assy, Front Seat Inner, LH
2024-09 → —
ZN8 6F (BASE,HIGH) D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
