Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

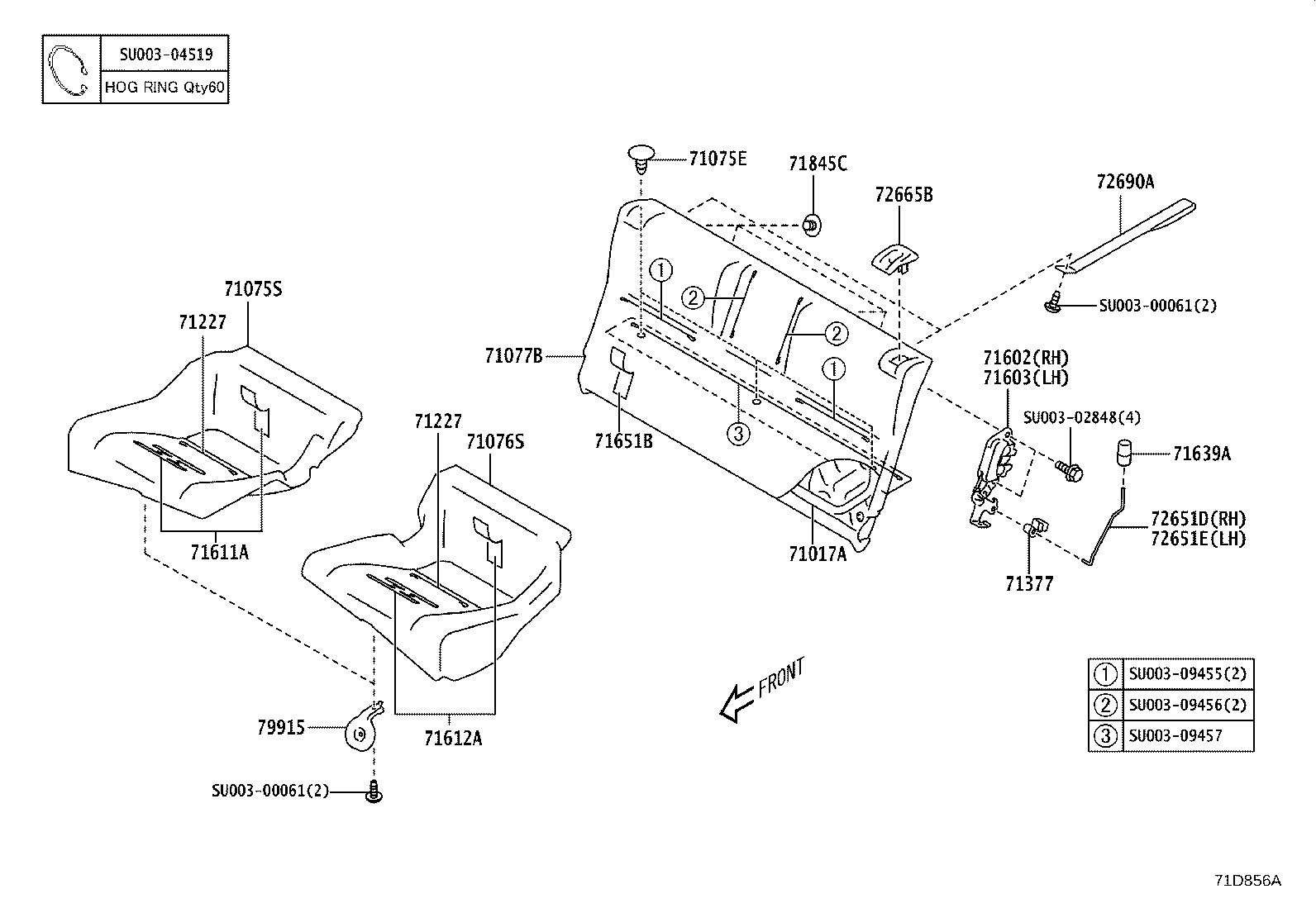

Exploded illustration 71D856A SU00304519 — not listed in this catalogue 71602 — LOCK SUB-ASSY, REAR SEATBACK, RH (4 parts) 71603 — LOCK SUB-ASSY, REAR SEATBACK, LH (4 parts) 72651D — ROD, REAR SEATBACK LOCK, RH (4 parts) 72651E — ROD, REAR SEATBACK LOCK, LH (4 parts) SU00300061 — not listed in this catalogue SU00300061 — not listed in this catalogue SU00302848 — not listed in this catalogue 79915 — BRACKET, SEAT LEG (4 parts) 71227 — WIRE, REAR SEAT CUSHION COVER SET (4 parts) 71076S — COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) (45 parts) 71612A — PAD, REAR SEAT CUSHION, LH (22 parts) 71611A — PAD, REAR SEAT CUSHION, RH (22 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (45 parts) 71075E — CLIP(FOR REAR SEAT) (8 parts) 72690A — STRAP ASSY, REAR SEAT LOCK RELEASE (4 parts) 72665B — COVER, REAR SEATBACK LOCK (8 parts) 71845C — CAP, REAR SEAT COVER (8 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (21 parts) 71651B — PAD, REAR SEATBACK(FOR BENCH TYPE) (4 parts) 71017A — FRAME SUB-ASSY, REAR SEATBACK (4 parts) 71639A — KNOB, REAR SEAT LOCK (8 parts) 71377 — GUIDE, CONTROL LEVER (4 parts) 71227 — WIRE, REAR SEAT CUSHION COVER SET (4 parts) SU00309457 — not listed in this catalogue SU00309456 — not listed in this catalogue SU00309455 — not listed in this catalogue
71D856A · 20 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
227 parts on this figure
Part number Description Fitment Price
71017A — Frame Sub-assy, Rear Seatback
SU003-09453 Frame Sub-assy, Rear Seatback
2022-06 → 2023-12 ended
ZN8 B —
SU003-09453 Frame Sub-assy, Rear Seatback
2021-10 → 2022-06 ended
ZN8 —
SU003-09453 Frame Sub-assy, Rear Seatback
2024-09 → —
ZN8 D —
SU003-09453 Frame Sub-assy, Rear Seatback
2023-12 → —
ZN8 C —
71075E — Clip(FOR REAR SEAT)
SU003-04228 note Clip(FOR REAR SEAT)
2021-10 → 2022-06 ended
ZN8 6F —
SU003-04228 note Clip(FOR REAR SEAT)
2021-10 → 2022-06 ended
ZN8 —
SU003-04228 note Clip(FOR REAR SEAT)
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-04228 note Clip(FOR REAR SEAT)
2022-06 → 2023-12 ended
ZN8 B —
SU003-04228 note Clip(FOR REAR SEAT)
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-04228 note Clip(FOR REAR SEAT)
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-04228 note Clip(FOR REAR SEAT)
2024-09 → —
ZN8 6F BASE D —
SU003-04228 note Clip(FOR REAR SEAT)
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6FC BASE B —
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6FC BASE —
SU003-10397 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10398 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6FC HIGH —
SU003-10398 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10398 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10398 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6FC HIGH B —
SU003-10398 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10399 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 HIGH —
SU003-10399 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 HIGH B —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6FC BASE D —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6FC BASE C —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10403 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 BASE2 B —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6FC HIGH C —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 HIGH2 B —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10404 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-11161 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 ORA —
SU003-11700 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 ORB —
SU003-12065 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 GRA —
SU003-12066 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 HIGH D —
71076S — Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6FC BASE —
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10400 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6FC BASE B —
SU003-10401 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6FC HIGH —
SU003-10401 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10401 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10401 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6FC HIGH B —
SU003-10401 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10402 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 HIGH —
SU003-10402 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 HIGH B —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6FC BASE C —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6FC BASE D —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 BASE2 B —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10406 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 6F HIGH B —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 HIGH2 B —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-10407 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 6FC HIGH C —
SU003-11162 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-12 ended
ZN8 ORA —
SU003-11701 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2023-12 → —
ZN8 ORB —
SU003-12067 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 GRA —
SU003-12068 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2024-09 → —
ZN8 HIGH D —
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
SU003-10885 note Cover, Rear Seatback (FOR BENCH TYPE)
2021-10 → 2022-01 ended
ZN8 6F BASE —
SU003-10885 note Cover, Rear Seatback (FOR BENCH TYPE)
2021-10 → 2022-01 ended
ZN8 6FC (BASE,BASE2) —
SU003-10886 note Cover, Rear Seatback (FOR BENCH TYPE)
2021-10 → 2022-01 ended
ZN8 HIGH,HIGH2 —
SU003-10887 note Cover, Rear Seatback (FOR BENCH TYPE)
2021-10 → 2022-01 ended
ZN8 HIGH —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-01 → 2022-06 ended
ZN8 6F BASE —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-01 → 2022-06 ended
ZN8 6FC (BASE,BASE2) —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2024-09 → —
ZN8 6FC BASE D —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 6F BASE B —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 6FC (BASE,BASE2) B —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2024-09 → —
ZN8 6F BASE D —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2023-12 → —
ZN8 6F BASE C —
SU003-10992 note Cover, Rear Seatback (FOR BENCH TYPE)
2023-12 → —
ZN8 6FC BASE C —
SU003-10993 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-01 → 2022-06 ended
ZN8 HIGH,HIGH2 —
SU003-10993 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2) B —
SU003-10993 note Cover, Rear Seatback (FOR BENCH TYPE)
2023-12 → —
ZN8 6F HIGH C —
SU003-10993 note Cover, Rear Seatback (FOR BENCH TYPE)
2023-12 → —
ZN8 6FC HIGH C —
SU003-10994 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 HIGH B —
SU003-10994 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-01 → 2022-06 ended
ZN8 HIGH —
SU003-11163 note Cover, Rear Seatback (FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 ORA —
SU003-11480 note Cover, Rear Seatback (FOR BENCH TYPE)
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-11480 note Cover, Rear Seatback (FOR BENCH TYPE)
2023-12 → —
ZN8 ORB —
71227 — Wire, Rear Seat Cushion Cover Set
SU003-09454 Wire, Rear Seat Cushion Cover Set
2021-10 → 2022-06 ended
ZN8 —
SU003-09454 Wire, Rear Seat Cushion Cover Set
2022-06 → 2023-12 ended
ZN8 B —
SU003-09454 Wire, Rear Seat Cushion Cover Set
2023-12 → —
ZN8 C —
SU003-09454 Wire, Rear Seat Cushion Cover Set
2024-09 → —
ZN8 D —
71377 — Guide, Control Lever
SU003-01698 Guide, Control Lever
2022-06 → 2023-12 ended
ZN8 B —
SU003-01698 Guide, Control Lever
2024-09 → —
ZN8 D —
SU003-01698 Guide, Control Lever
2023-12 → —
ZN8 C —
SU003-01698 Guide, Control Lever
2021-10 → 2022-06 ended
ZN8 —
71602 — Lock Sub-assy, Rear Seatback, RH
SU003-09458 Lock Sub-assy, Rear Seatback, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-09458 Lock Sub-assy, Rear Seatback, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09458 Lock Sub-assy, Rear Seatback, RH
2023-12 → —
ZN8 C —
SU003-09458 Lock Sub-assy, Rear Seatback, RH
2024-09 → —
ZN8 D —
71603 — Lock Sub-assy, Rear Seatback, LH
SU003-09459 Lock Sub-assy, Rear Seatback, LH
2024-09 → —
ZN8 D —
SU003-09459 Lock Sub-assy, Rear Seatback, LH
2023-12 → —
ZN8 C —
SU003-09459 Lock Sub-assy, Rear Seatback, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-09459 Lock Sub-assy, Rear Seatback, LH
2022-06 → 2023-12 ended
ZN8 B —
71611A — Pad, Rear Seat Cushion, RH
SU003-09790 note Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09790 Pad, Rear Seat Cushion, RH
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
SU003-09790 note Pad, Rear Seat Cushion, RH
2024-09 → —
ZN8 6F BASE D —
SU003-09790 note Pad, Rear Seat Cushion, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09790 note Pad, Rear Seat Cushion, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09790 note Pad, Rear Seat Cushion, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09790 Pad, Rear Seat Cushion, RH
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-09790 note Pad, Rear Seat Cushion, RH
2024-09 → —
ZN8 6F BASE D —
SU003-09790 note Pad, Rear Seat Cushion, RH
2024-09 → —
ZN8 6F BASE D —
SU003-09790 note Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09790 note Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09790 Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-09790 note Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09790 note Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09790 note Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09790 Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09946 note Pad, Rear Seat Cushion, RH
2024-09 → —
ZN8 6F BASE D —
SU003-09946 note Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09946 note Pad, Rear Seat Cushion, RH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09946 note Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09946 Pad, Rear Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-09946 Pad, Rear Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
71612A — Pad, Rear Seat Cushion, LH
SU003-09791 Pad, Rear Seat Cushion, LH
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-09791 note Pad, Rear Seat Cushion, LH
2024-09 → —
ZN8 6F BASE D —
SU003-09791 note Pad, Rear Seat Cushion, LH
2024-09 → —
ZN8 6F BASE D —
SU003-09791 note Pad, Rear Seat Cushion, LH
2024-09 → —
ZN8 6F BASE D —
SU003-09791 Pad, Rear Seat Cushion, LH
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
SU003-09791 note Pad, Rear Seat Cushion, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09791 note Pad, Rear Seat Cushion, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09791 note Pad, Rear Seat Cushion, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-09791 note Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09791 note Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09791 note Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09791 Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 (BASE2,HIGH2,ORA) B —
SU003-09791 Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 BASE2,HIGH2 —
SU003-09791 note Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09791 note Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09791 note Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09947 Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 6FC (BASE,HIGH) B —
SU003-09947 note Pad, Rear Seat Cushion, LH
2024-09 → —
ZN8 6F BASE D —
SU003-09947 Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 6FC (BASE,HIGH) —
SU003-09947 note Pad, Rear Seat Cushion, LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09947 note Pad, Rear Seat Cushion, LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09947 note Pad, Rear Seat Cushion, LH
2023-12 → —
ZN8 6F (BASE,HIGH) C —
71639A — Knob, Rear Seat Lock
SU003-04205 note Knob, Rear Seat Lock
2024-09 → —
ZN8 6F BASE D —
SU003-04205 note Knob, Rear Seat Lock
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
SU003-04205 note Knob, Rear Seat Lock
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-04205 note Knob, Rear Seat Lock
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-04205 note Knob, Rear Seat Lock
2022-06 → 2023-12 ended
ZN8 B —
SU003-04205 note Knob, Rear Seat Lock
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-04205 note Knob, Rear Seat Lock
2021-10 → 2022-06 ended
ZN8 —
SU003-04205 note Knob, Rear Seat Lock
2021-10 → 2022-06 ended
ZN8 6F —
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
SU003-10632 Pad, Rear Seatback(FOR BENCH TYPE)
2021-10 → 2022-06 ended
ZN8 —
SU003-10632 Pad, Rear Seatback(FOR BENCH TYPE)
2022-06 → 2023-12 ended
ZN8 B —
SU003-10632 Pad, Rear Seatback(FOR BENCH TYPE)
2023-12 → —
ZN8 C —
SU003-10632 Pad, Rear Seatback(FOR BENCH TYPE)
2024-09 → —
ZN8 D —
71845C — Cap, Rear Seat Cover
SU003-04949 note Cap, Rear Seat Cover
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
SU003-04949 note Cap, Rear Seat Cover
2024-09 → —
ZN8 6F BASE D —
SU003-04949 note Cap, Rear Seat Cover
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-04949 note Cap, Rear Seat Cover
2022-06 → 2023-12 ended
ZN8 B —
SU003-04949 note Cap, Rear Seat Cover
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-04949 note Cap, Rear Seat Cover
2021-10 → 2022-06 ended
ZN8 —
SU003-04949 note Cap, Rear Seat Cover
2021-10 → 2022-06 ended
ZN8 6F —
SU003-04949 note Cap, Rear Seat Cover
2023-12 → —
ZN8 6F (BASE,HIGH) C —
72651D — Rod, Rear Seatback Lock, RH
SU003-01861 Rod, Rear Seatback Lock, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-01861 Rod, Rear Seatback Lock, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-01861 Rod, Rear Seatback Lock, RH
2023-12 → —
ZN8 C —
SU003-01861 Rod, Rear Seatback Lock, RH
2024-09 → —
ZN8 D —
72651E — Rod, Rear Seatback Lock, LH
SU003-01860 Rod, Rear Seatback Lock, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-01860 Rod, Rear Seatback Lock, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-01860 Rod, Rear Seatback Lock, LH
2023-12 → —
ZN8 C —
SU003-01860 Rod, Rear Seatback Lock, LH
2024-09 → —
ZN8 D —
72665B — Cover, Rear Seatback Lock
SU003-04203 note Cover, Rear Seatback Lock
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-04203 note Cover, Rear Seatback Lock
2024-09 → —
ZN8 6FC BASE D;ZN8 +2 —
SU003-04203 note Cover, Rear Seatback Lock
2024-09 → —
ZN8 6F BASE D —
SU003-04203 note Cover, Rear Seatback Lock
2023-12 → —
ZN8 6FC C;ZN8 6F +1 —
SU003-04203 note Cover, Rear Seatback Lock
2023-12 → —
ZN8 6F (BASE,HIGH) C —
SU003-04203 note Cover, Rear Seatback Lock
2022-06 → 2023-12 ended
ZN8 B —
SU003-04203 note Cover, Rear Seatback Lock
2021-10 → 2022-06 ended
ZN8 —
SU003-04203 note Cover, Rear Seatback Lock
2021-10 → 2022-06 ended
ZN8 6F —
72690A — Strap Assy, Rear Seat Lock Release
SU003-05828 note Strap Assy, Rear Seat Lock Release
2021-10 → 2022-06 ended
ZN8 —
SU003-05828 note Strap Assy, Rear Seat Lock Release
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-05828 note Strap Assy, Rear Seat Lock Release
2023-12 → —
ZN8 C —
SU003-05828 note Strap Assy, Rear Seat Lock Release
2024-09 → —
ZN8 D —
79915 — Bracket, Seat Leg
SU003-01817 Bracket, Seat Leg
2021-10 → 2022-06 ended
ZN8 —
SU003-01817 Bracket, Seat Leg
2022-06 → 2023-12 ended
ZN8 B —
SU003-01817 Bracket, Seat Leg
2023-12 → —
ZN8 C —
SU003-01817 Bracket, Seat Leg
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
