Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

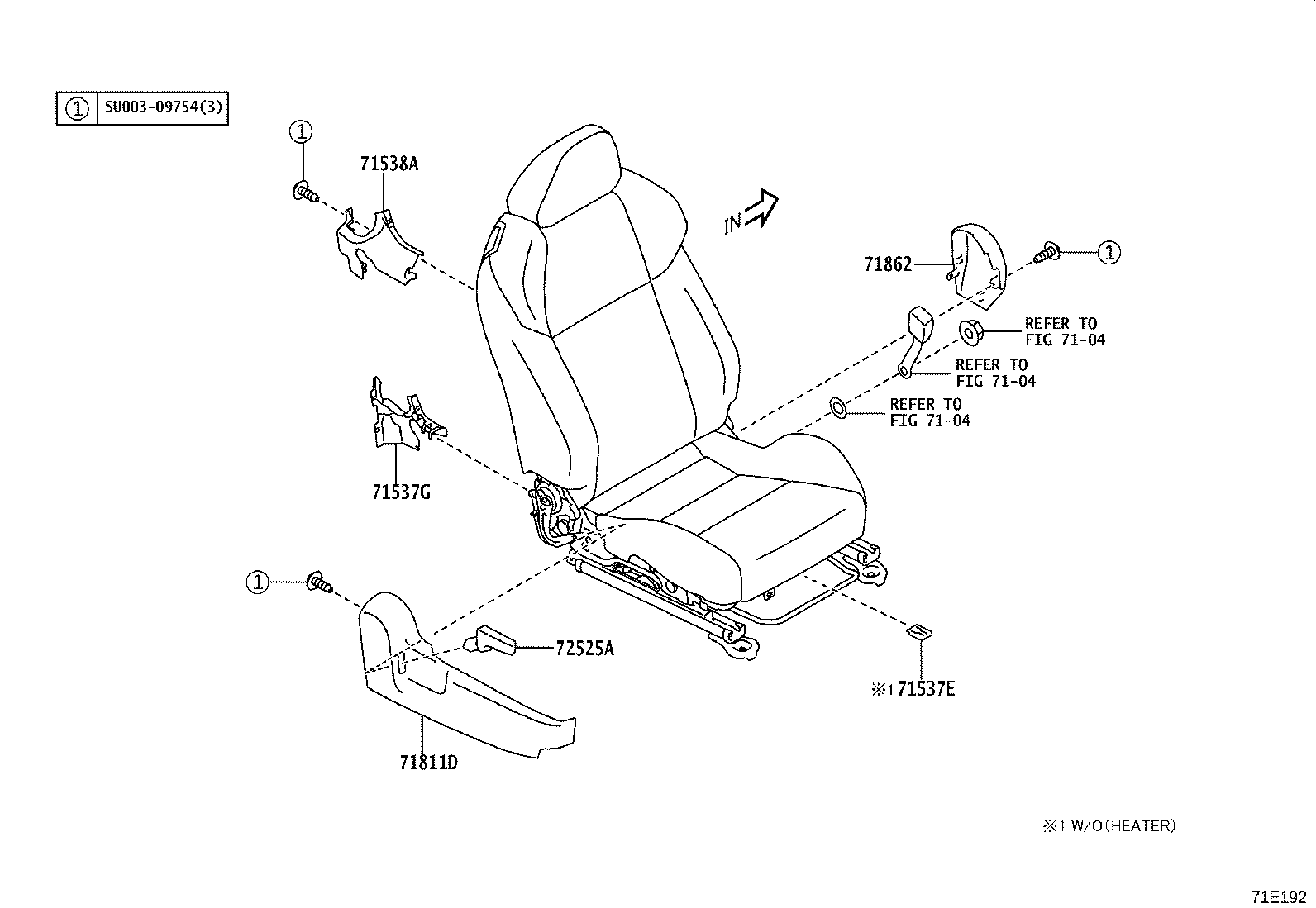

Exploded illustration 71E192 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71538A — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) (6 parts) 71537G — PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) (6 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (6 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (6 parts) 71537E — PROTECTOR, FRONT SEAT CUSHION, NO.1 (4 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (6 parts) SU00309754 — not listed in this catalogue
71E192 · 6 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
71537E — Protector, Front Seat Cushion, NO.1
SU003-09776 Protector, Front Seat Cushion, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-09776 Protector, Front Seat Cushion, NO.1
2023-12 → —
ZN8 C —
SU003-09776 Protector, Front Seat Cushion, NO.1
2024-09 → —
ZN8 D —
SU003-09776 Protector, Front Seat Cushion, NO.1
2021-10 → 2022-06 ended
ZN8 —
71537G — Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2024-09 → —
ZN8 D —
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2023-12 → —
ZN8 C —
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2022-06 → 2023-12 ended
ZN8 B —
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2021-10 → 2022-06 ended
ZN8 —
SU003-09751 note Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2021-10 → 2022-06 ended
ZN8 6F —
71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2021-10 → 2022-06 ended
ZN8 —
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2022-06 → 2023-12 ended
ZN8 B —
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2023-12 → —
ZN8 C —
SU003-09753 note Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2024-09 → —
ZN8 D —
71811D — Shield, Front Seat Cushion, RH
SU003-09747 note Shield, Front Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-09747 note Shield, Front Seat Cushion, RH
2024-09 → —
ZN8 D —
SU003-09747 note Shield, Front Seat Cushion, RH
2023-12 → —
ZN8 C —
SU003-09747 note Shield, Front Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09747 note Shield, Front Seat Cushion, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09747 note Shield, Front Seat Cushion, RH
2021-10 → 2022-06 ended
ZN8 6F —
71862 — Shield, Front Seat Cushion, Inner LH
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2021-10 → 2022-06 ended
ZN8 —
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2023-12 → —
ZN8 C —
SU003-09749 note Shield, Front Seat Cushion, Inner LH
2024-09 → —
ZN8 D —
72525A — Handle, Reclining Adjuster Release, RH
SU003-09768 note Handle, Reclining Adjuster Release, RH
2021-10 → 2022-06 ended
ZN8 6F —
SU003-09768 note Handle, Reclining Adjuster Release, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-09768 note Handle, Reclining Adjuster Release, RH
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B —
SU003-09768 note Handle, Reclining Adjuster Release, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-09768 note Handle, Reclining Adjuster Release, RH
2023-12 → —
ZN8 C —
SU003-09768 note Handle, Reclining Adjuster Release, RH
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
