Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 71E193 72601A — STRIKER SUB-ASSY, REAR SEATBACK LOOK, RH (4 parts) 72602A — STRIKER SUB-ASSY, REAR SEATBACK LOCK, LH (4 parts) 71301D — HINGE SUB-ASSY, REAR SEAT, RH (4 parts) 71302D — HINGE SUB-ASSY, REAR SEAT, LH (4 parts) 71329 — BOLT, REAR SEAT HINGE (4 parts) 71329 — BOLT, REAR SEAT HINGE (4 parts) SU00302813 — not listed in this catalogue SU00304540 — not listed in this catalogue

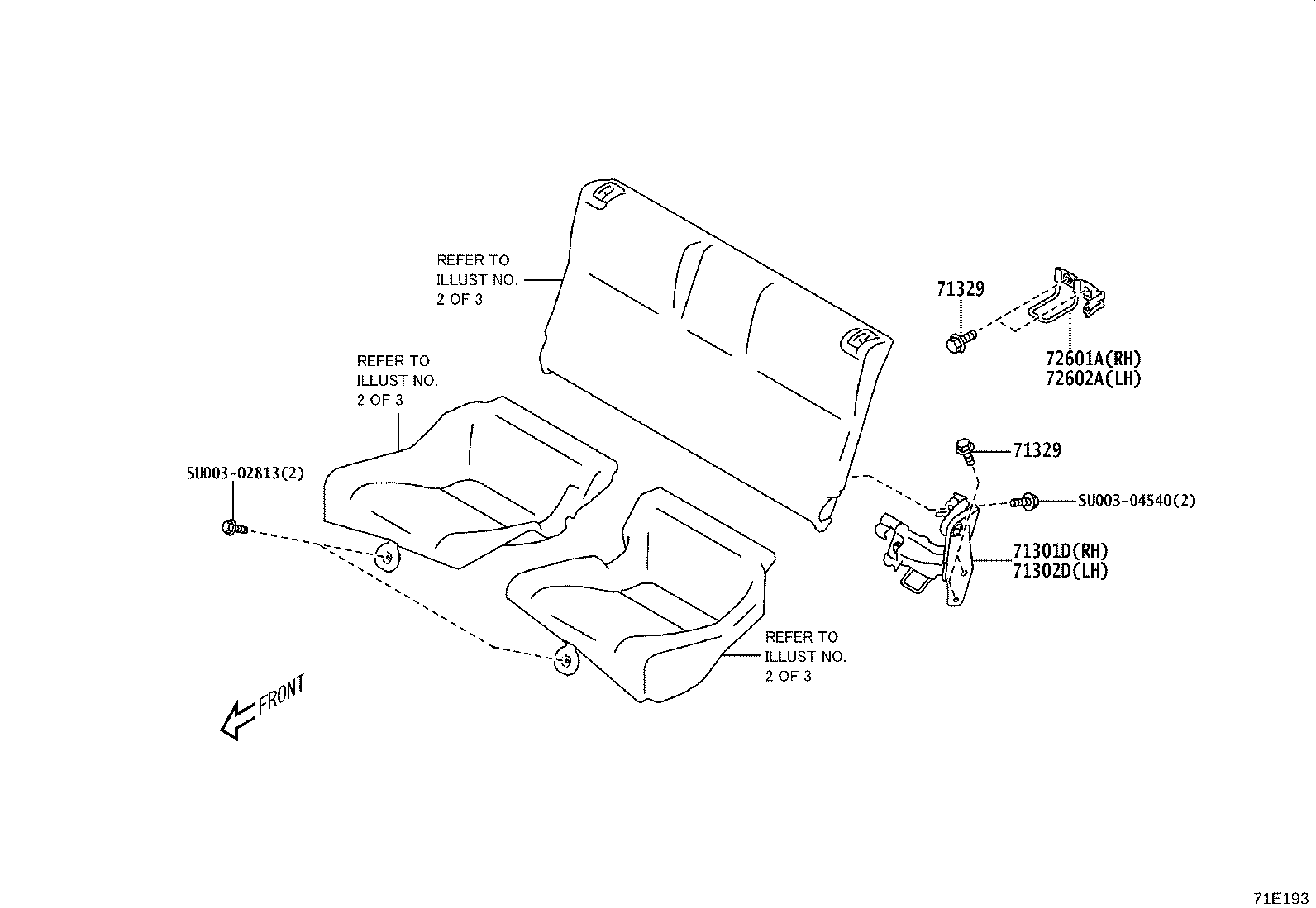

71E193 · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
71301D — Hinge Sub-assy, Rear Seat, RH
SU003-08607 Hinge Sub-assy, Rear Seat, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08607 Hinge Sub-assy, Rear Seat, RH
2023-12 → —
ZN8 C —
SU003-08607 Hinge Sub-assy, Rear Seat, RH
2024-09 → —
ZN8 D —
SU003-08607 Hinge Sub-assy, Rear Seat, RH
2021-10 → 2022-06 ended
ZN8 —
71302D — Hinge Sub-assy, Rear Seat, LH
SU003-08608 Hinge Sub-assy, Rear Seat, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-08608 Hinge Sub-assy, Rear Seat, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-08608 Hinge Sub-assy, Rear Seat, LH
2023-12 → —
ZN8 C —
SU003-08608 Hinge Sub-assy, Rear Seat, LH
2024-09 → —
ZN8 D —
71329 — Bolt, Rear Seat Hinge
SU003-02810 Bolt, Rear Seat Hinge
2023-12 → —
ZN8 C —
SU003-02810 Bolt, Rear Seat Hinge
2024-09 → —
ZN8 D —
SU003-02810 Bolt, Rear Seat Hinge
2022-06 → 2023-12 ended
ZN8 B —
SU003-02810 Bolt, Rear Seat Hinge
2021-10 → 2022-06 ended
ZN8 —
72601A — Striker Sub-assy, Rear Seatback Look, RH
SU003-01864 Striker Sub-assy, Rear Seatback Look, RH
2021-10 → 2022-06 ended
ZN8 —
SU003-01864 Striker Sub-assy, Rear Seatback Look, RH
2022-06 → 2023-12 ended
ZN8 B —
SU003-01864 Striker Sub-assy, Rear Seatback Look, RH
2023-12 → —
ZN8 C —
SU003-01864 Striker Sub-assy, Rear Seatback Look, RH
2024-09 → —
ZN8 D —
72602A — Striker Sub-assy, Rear Seatback Lock, LH
SU003-01865 Striker Sub-assy, Rear Seatback Lock, LH
2021-10 → 2022-06 ended
ZN8 —
SU003-01865 Striker Sub-assy, Rear Seatback Lock, LH
2022-06 → 2023-12 ended
ZN8 B —
SU003-01865 Striker Sub-assy, Rear Seatback Lock, LH
2023-12 → —
ZN8 C —
SU003-01865 Striker Sub-assy, Rear Seatback Lock, LH
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
