Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

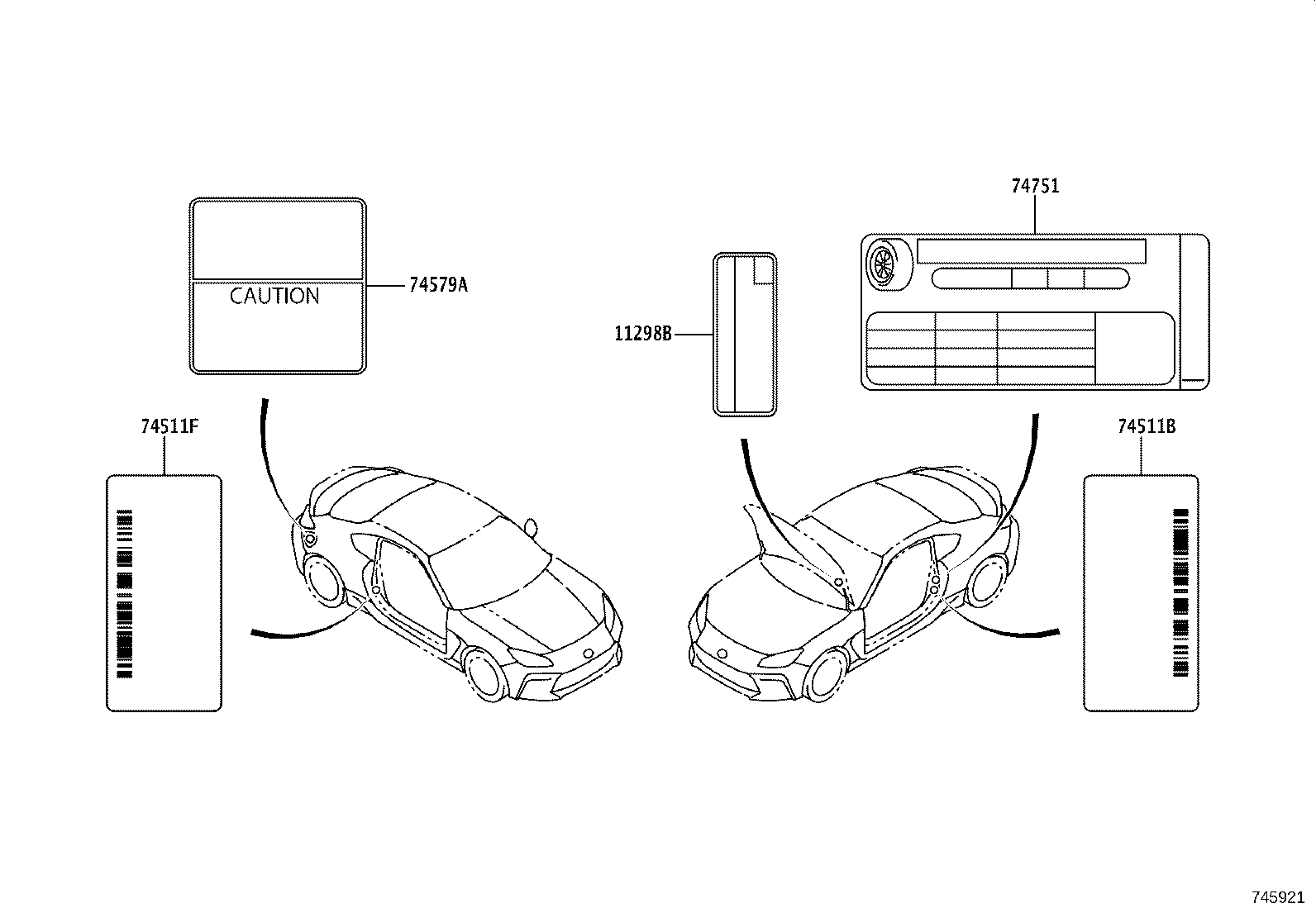

Exploded illustration 745921 74751 — LABEL, TIRE PRESSURE INFORMATION (36 parts) 74511B — PLATE, NAME (12 parts) 11298B — LABEL, EMISSION CONTROL INFORMATION (4 parts) 74511F — LABEL, NAME (IDENTIFICATION LASER LABEL) (4 parts) 74579A — LABEL, UNLEADED FUEL INFORMATION (4 parts)
745921 · 5 callouts Full size ↗
60 parts on this figure
Part number Description Fitment Price
11298B — Label, Emission Control Information
SU003-09506 Label, Emission Control Information
2021-10 → 2022-06 ended
FA24 ZN8 6F;FA24 ZN8 +1 —
SU003-10951 Label, Emission Control Information
2022-06 → 2023-12 ended
FA24 ZN8 6F (BASE,HIGH) +4 —
SU003-11688 Label, Emission Control Information
2023-12 → —
FA24 ZN8 C —
SU003-12049 Label, Emission Control Information
2024-09 → —
ZN8 D —
74511B — Plate, Name
SU003-07578 note Plate, Name
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-07578 note Plate, Name
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
SU003-07578 note Plate, Name
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-07578 note Plate, Name
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-07578 note Plate, Name
2023-12 → —
ZN8 C —
SU003-07578 note Plate, Name
2023-12 → —
ZN8 C —
SU003-07578 note Plate, Name
2024-09 → —
ZN8 D —
SU003-07578 note Plate, Name
2024-09 → —
ZN8 D —
SU003-07582 note Plate, Name
2022-06 → 2023-12 ended
ZN8 6F (BASE,HIGH) B;ZN8 +2 —
SU003-07582 note Plate, Name
2024-09 → —
ZN8 D —
SU003-07582 note Plate, Name
2023-12 → —
ZN8 C —
SU003-07582 note Plate, Name
2021-10 → 2022-06 ended
ZN8 6F;ZN8 BASE2,HIGH2 —
74511F — Label, Name (IDENTIFICATION LASER LABEL)
SU003-07581 note Label, Name (IDENTIFICATION LASER LABEL)
2024-09 → —
ZN8 D —
SU003-07581 note Label, Name (IDENTIFICATION LASER LABEL)
2023-12 → —
ZN8 C —
SU003-07581 note Label, Name (IDENTIFICATION LASER LABEL)
2022-06 → 2023-12 ended
ZN8 B —
SU003-07581 note Label, Name (IDENTIFICATION LASER LABEL)
2021-10 → 2022-06 ended
ZN8 —
74579A — Label, Unleaded Fuel Information
SU003-00083 Label, Unleaded Fuel Information
2021-10 → 2022-06 ended
ZN8 —
SU003-00083 Label, Unleaded Fuel Information
2022-06 → 2023-12 ended
ZN8 B —
SU003-00083 Label, Unleaded Fuel Information
2023-12 → —
ZN8 C —
SU003-00083 Label, Unleaded Fuel Information
2024-09 → —
ZN8 D —
74751 — Label, Tire Pressure Information
SU003-07652 Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6FC BASE —
SU003-07652 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-07652 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-07656 Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6FC HIGH —
SU003-07656 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-07656 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09520 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09520 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09520 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09520 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09520 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09520 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09520 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09520 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09520 Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 BASE2 —
SU003-09520 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09520 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09520 Label, Tire Pressure Information
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2) B —
SU003-09520 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09520 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F BASE —
SU003-09521 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09521 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09521 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09521 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09521 note Label, Tire Pressure Information
2024-09 → —
ZN8 BASE D —
SU003-09521 Label, Tire Pressure Information
2024-09 → —
ZN8 (GRA,HIGH) D —
SU003-09521 Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 HIGH2 —
SU003-09521 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09521 note Label, Tire Pressure Information
2021-10 → 2022-06 ended
ZN8 6F HIGH —
SU003-09521 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09521 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09521 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09521 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09521 note Label, Tire Pressure Information
2023-12 → —
ZN8 BASE C —
SU003-09521 Label, Tire Pressure Information
2023-12 → —
ZN8 (HIGH,ORB) C —
SU003-09521 Label, Tire Pressure Information
2022-06 → 2023-12 ended
ZN8 (HIGH,HIGH2,ORA) B —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
