Toyota GR 86

2021-11 → present · chassis ZN8 · catalogue 264430 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

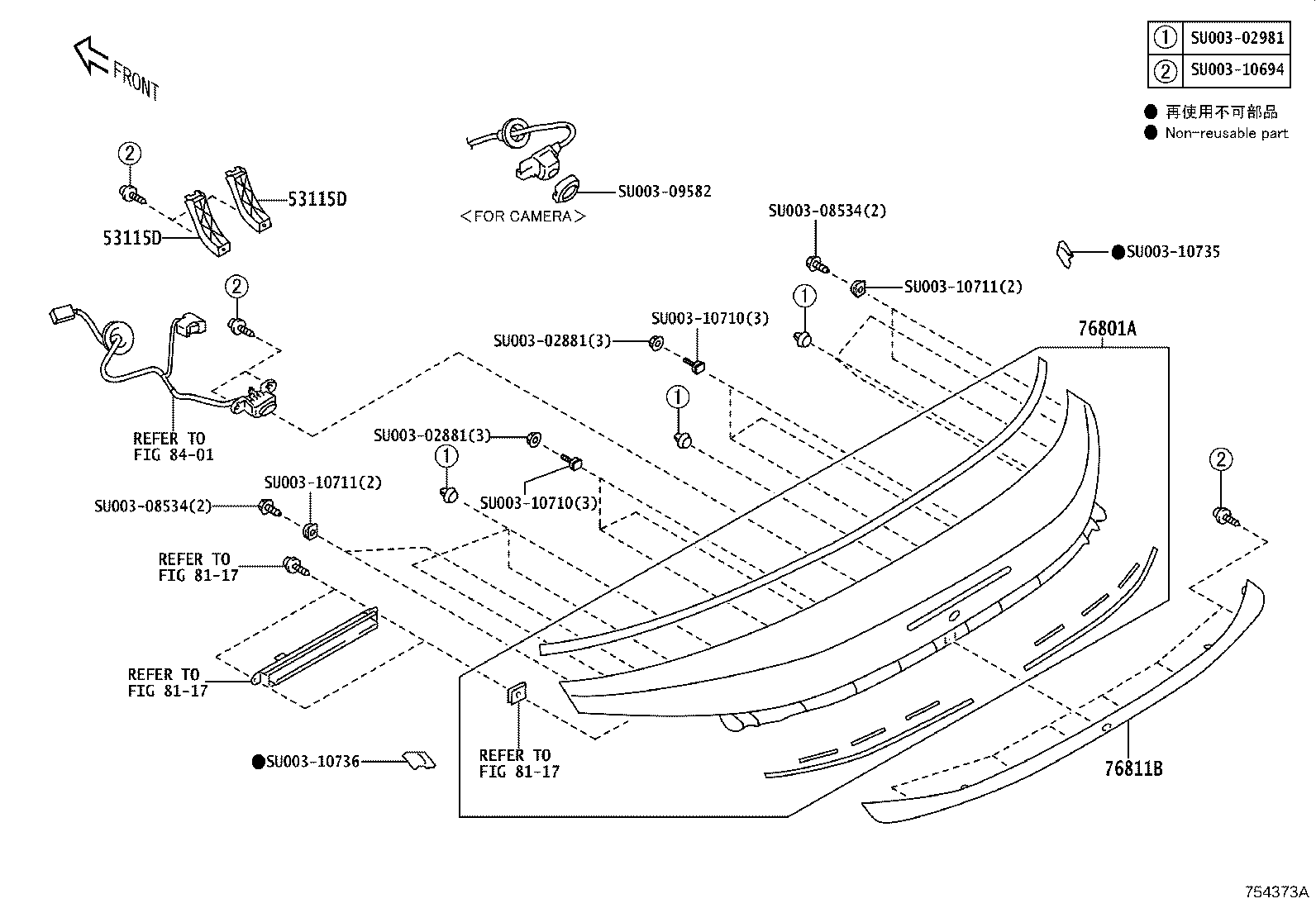

Exploded illustration 754373A 8401 — not listed in this catalogue 8117 — not listed in this catalogue 8117 — not listed in this catalogue 8117 — not listed in this catalogue 53115D — BRACKET, REAR GARNISH, NO.1 (4 parts) 76811B — GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE (4 parts) 76801A — GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE (29 parts) 53115D — BRACKET, REAR GARNISH, NO.1 (4 parts) SU00309582 — not listed in this catalogue SU00302881 — not listed in this catalogue SU00302881 — not listed in this catalogue SU00302981 — not listed in this catalogue SU00310710 — not listed in this catalogue SU00310710 — not listed in this catalogue SU00310711 — not listed in this catalogue SU00310711 — not listed in this catalogue SU00310694 — not listed in this catalogue SU00310735 — not listed in this catalogue SU00308534 — not listed in this catalogue SU00308534 — not listed in this catalogue SU00310736 — not listed in this catalogue
754373A · 4 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
53115D — Bracket, Rear Garnish, NO.1
SU003-08951 Bracket, Rear Garnish, NO.1
2022-06 → 2023-12 ended
ZN8 B —
SU003-08951 Bracket, Rear Garnish, NO.1
2023-12 → —
ZN8 C —
SU003-08951 Bracket, Rear Garnish, NO.1
2024-09 → —
ZN8 D —
SU003-08951 Bracket, Rear Garnish, NO.1
2021-10 → 2022-06 ended
ZN8 —
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
SU003-10677 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10677 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10679 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10679 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-10679 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10679 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10680 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-10680 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10680 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10680 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10681 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10681 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10681 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-10681 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10683 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10683 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 C —
SU003-10683 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10683 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10684 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10684 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-10684 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10684 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10685 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 (BASE,BASE2,HIGH,HIGH2) B —
SU003-10685 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 C —
SU003-10685 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 (BASE,HIGH) D —
SU003-10685 note Garnish Sub-assy, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-11113 note Garnish Sub-assy, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 ORA —
SU003-11482 note Garnish Sub-assy, Luggage Compartment Door, Outside
2023-12 → —
ZN8 (BASE,HIGH) C —
SU003-11885 note Garnish Sub-assy, Luggage Compartment Door, Outside
2024-09 → —
ZN8 D —
76811B — Garnish, Luggage Compartment Door, Outside
SU003-10413 Garnish, Luggage Compartment Door, Outside
2021-10 → 2022-06 ended
ZN8 —
SU003-10413 Garnish, Luggage Compartment Door, Outside
2022-06 → 2023-12 ended
ZN8 B —
SU003-10413 Garnish, Luggage Compartment Door, Outside
2023-12 → —
ZN8 C —
SU003-10413 Garnish, Luggage Compartment Door, Outside
2024-09 → —
ZN8 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
