Toyota GR 86
2021-11 → present · chassis ZN8 · catalogue 264430 · United States
Supported model
Data version 2024-10

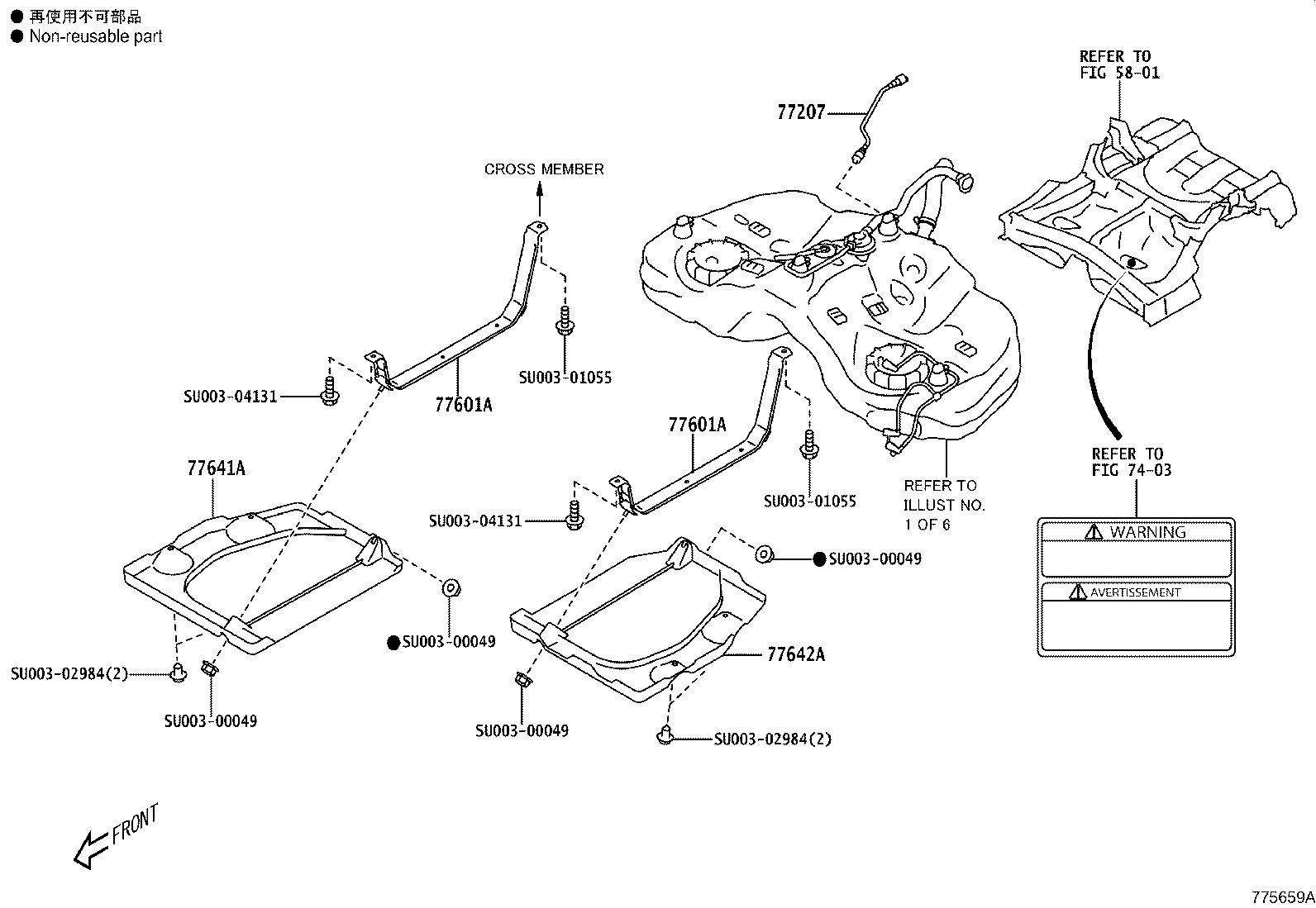

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77207 — Tube Sub-assy, Fuel | ||||
| SU003-10619 |
Tube Sub-assy, Fuel
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10619 |
Tube Sub-assy, Fuel
2023-12 → —
|
ZN8 C | — | |
| SU003-10619 |
Tube Sub-assy, Fuel
2024-09 → —
|
ZN8 D | — | |
| SU003-10619 |
Tube Sub-assy, Fuel
2021-10 → 2022-06
ended
|
ZN8 | — | |
| 77601A — Band Sub-assy, Fuel Tank, NO.1 | ||||
| SU003-09523 |
Band Sub-assy, Fuel Tank, NO.1
2021-10 → 2022-06
ended
|
ZN8 | — | |
| SU003-09523 |
Band Sub-assy, Fuel Tank, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-09523 |
Band Sub-assy, Fuel Tank, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-09523 |
Band Sub-assy, Fuel Tank, NO.1
2024-09 → —
|
ZN8 D | — | |
| 77641A — Protector, Fuel Tank, NO.1 | ||||
| SU003-01050 |
Protector, Fuel Tank, NO.1
2021-10 → 2021-12
ended
|
ZN8 | — | |
| SU003-10930 |
Protector, Fuel Tank, NO.1
2021-12 → 2022-06
ended
|
ZN8 | — | |
| SU003-10930 |
Protector, Fuel Tank, NO.1
2024-09 → —
|
ZN8 D | — | |
| SU003-10930 |
Protector, Fuel Tank, NO.1
2023-12 → —
|
ZN8 C | — | |
| SU003-10930 |
Protector, Fuel Tank, NO.1
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| 77642A — Protector, Fuel Tank, NO.2 | ||||
| SU003-01051 |
Protector, Fuel Tank, NO.2
2021-10 → 2021-12
ended
|
ZN8 | — | |
| SU003-10931 |
Protector, Fuel Tank, NO.2
2021-12 → 2022-06
ended
|
ZN8 | — | |
| SU003-10931 |
Protector, Fuel Tank, NO.2
2022-06 → 2023-12
ended
|
ZN8 B | — | |
| SU003-10931 |
Protector, Fuel Tank, NO.2
2023-12 → —
|
ZN8 C | — | |
| SU003-10931 |
Protector, Fuel Tank, NO.2
2024-09 → —
|
ZN8 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
